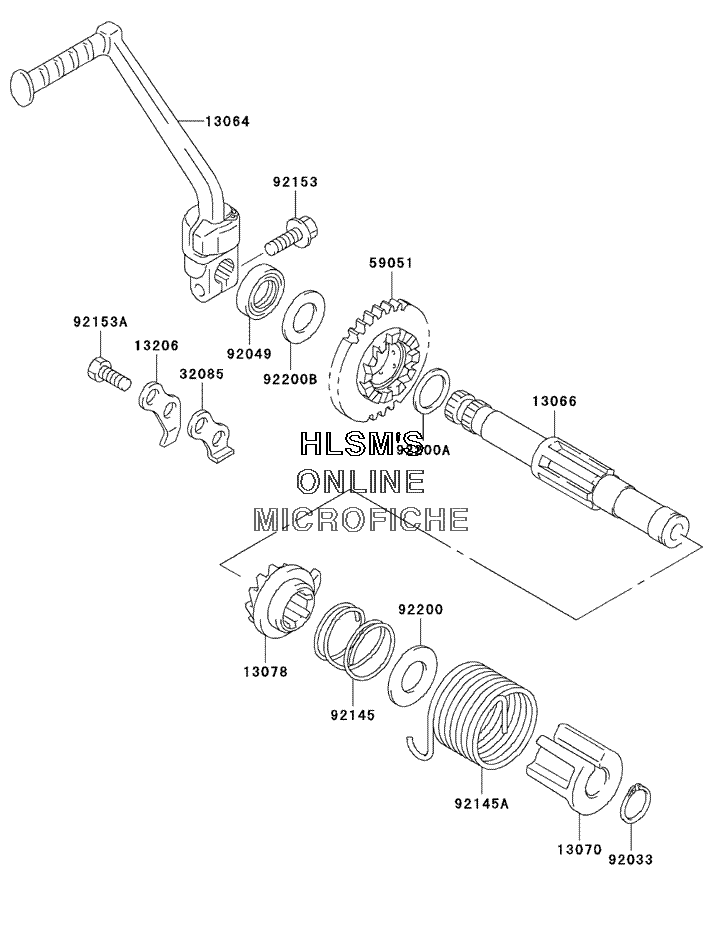

KICKSTARTER MECHANISM для Kawasaki KLX 125 - 2006 года выпуска
-
№АртикулНазвание
-
1306413064-S002 LEVER-ASSY-KICKLEVER-ASSY-KICK
-
1306613066-S001 SHAFT-KICKSHAFT-KICK
-
1307013070-S006 GUIDE, KICK STARTER SHAFTGUIDE, KICK STARTER SHAFT
-
1307813078-S001 RATCHET, KICKRATCHET, KICK
-
1320613206-S001 GUIDE-KICK, KICK STARTERGUIDE-KICK, KICK STARTER
-
3208532085-S003 STOPPERSTOPPER
-
5905159051-S002 GEAR-SPUR, KICK STARTER DRIVEGEAR-SPUR, KICK STARTER DRIVE
-
9203392033-S034 RING-SNAPRING-SNAP
-
9204992049-S023 SEAL-OILSEAL-OIL
-
9214592145-S042 SPRINGSPRING
-
92145A92145-S045 SPRINGSPRING
-
9215392153-S142 BOLTBOLT
-
92153A92153-S482 BOLTBOLT
-
9220092200-S054 WASHERWASHER
-
92200A92200-S063 WASHERWASHER
-
92200B92200-S073 WASHER, 16X30X1WASHER, 16X30X1
