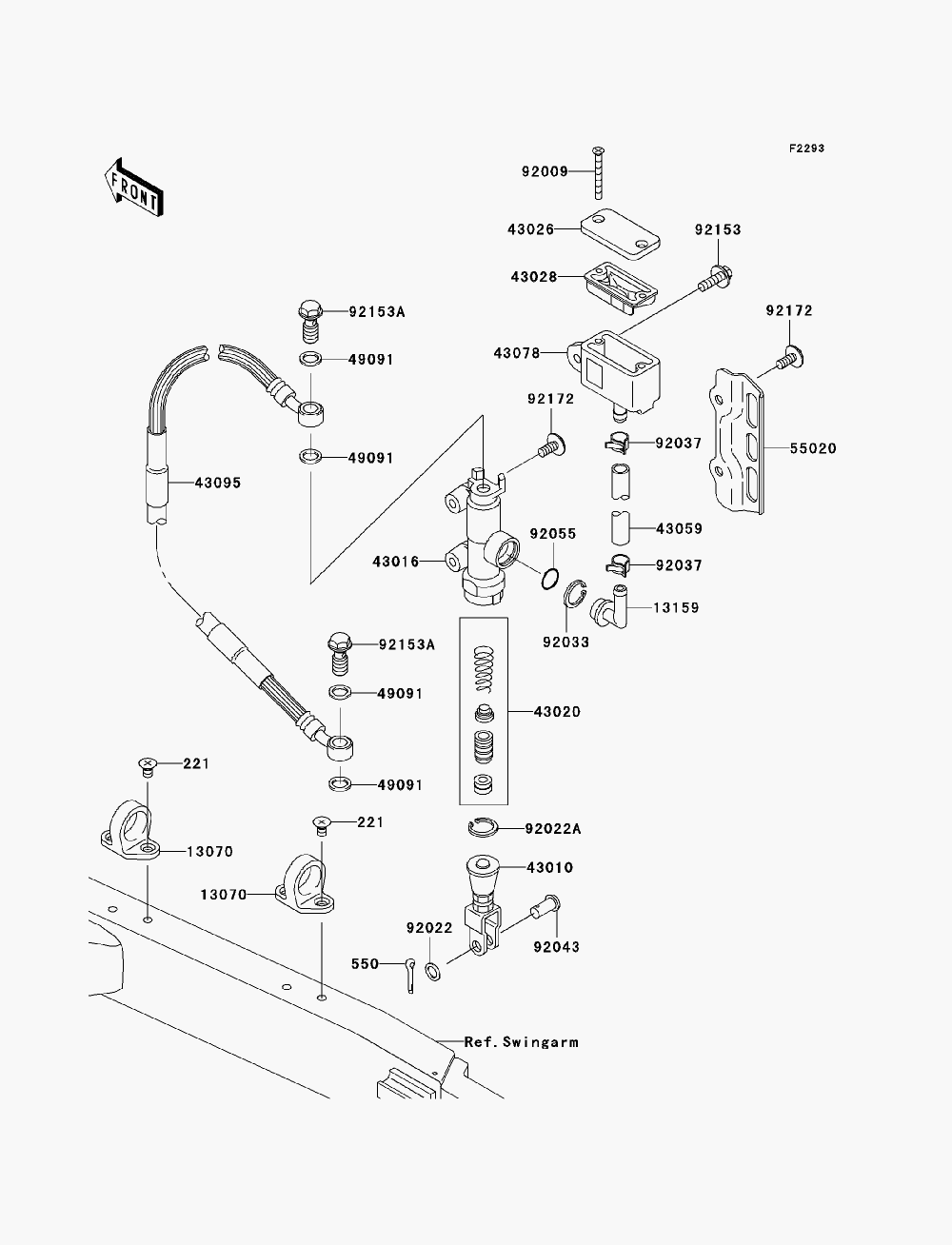

BRAKE - MASTER CYLINDER - REAR для Kawasaki KLX300A KLX300R - 2007 года выпуска
-
№АртикулНазвание
-
221221B0610 SCREW-CSK-CROS,6X10SCREW-CSK-CROS,6X10
-
550550D2015 PIN-COTTER,2.0X15PIN-COTTER,2.0X15
-
1307013070-1144 GUIDE,HOSEGUIDE,HOSE
-
1315913159-1056 CONNECTORCONNECTOR
-
4301043010-1068 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301643016-1149 CYLINDER-MASTERCYLINDER-MASTER
-
4302043020-1094 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1075 CAP-BRAKECAP-BRAKE
-
4302843028-1067 DIAPHRAGMDIAPHRAGM
-
4305943059-1767 HOSE-BRAKE, REAR MASTER CYLINDERHOSE-BRAKE, REAR MASTER CYLINDER
-
4307843078-1189 RESERVOIRRESERVOIR
-
4309543095-0164 HOSE-BRAKE, REARHOSE-BRAKE, REAR
-
4909149091-0001 WASHER-SEAL,10.1X14.5X1.5WASHER-SEAL,10.1X14.5X1.5
-
5502055020-1489 GUARD, REAR BRAKE RESERVOIR HOSEGUARD, REAR BRAKE RESERVOIR HOSE
-
9200992009-1596 SCREW,4X40SCREW,4X40
-
9202292022-1028 WASHER,8.5X13X1WASHER,8.5X13X1
-
92022A92022-1601 WASHER,CIRCRIPWASHER,CIRCRIP
-
9203392033-1186 RING-SNAP,20.5MMRING-SNAP,20.5MM
-
9203792037-1710 CLAMPCLAMP
-
9204392043-0004 PINPIN
-
9205592055-1251 RING-O,MASTER CYLINDERRING-O,MASTER CYLINDER
-
9215392153-0502 BOLT,6X20BOLT,6X20
-
92153A92153-0627 BOLT,OIL,L=23BOLT,OIL,L=23
-
9217292172-0107 SCREW,6X14SCREW,6X14
