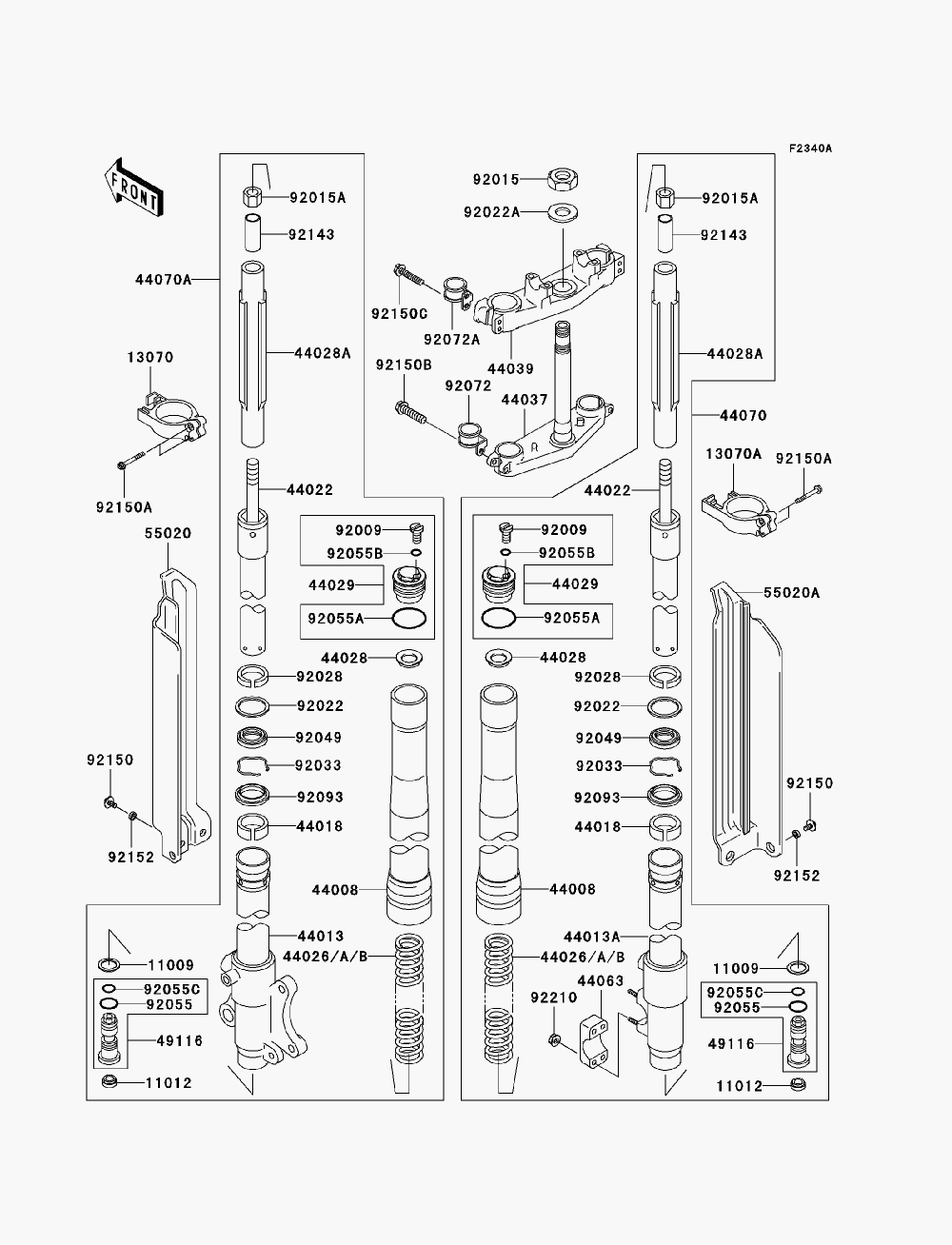

FRONT FORK для Kawasaki KLX300A KLX300R - 2007 года выпуска
-
№АртикулНазвание
-
1100911009-1592 GASKET,FORK CYLINDER BOLTGASKET,FORK CYLINDER BOLT
-
1101211012-1381 CAP,FORK CYLINDERCAP,FORK CYLINDER
-
1307013070-1263-RZ GUIDE,FORK, LEFT HAND,WHITEGUIDE,FORK, LEFT HAND,WHITE
-
13070A13070-1264-RZ GUIDE,FORK, RIGHT HAND,WHITEGUIDE,FORK, RIGHT HAND,WHITE
-
4400844008-1028-828 PIPE-FORK OUTER,GOLDPIPE-FORK OUTER,GOLD
-
4401344013-1387 PIPE-FORK INNER, LEFT HANDPIPE-FORK INNER, LEFT HAND
-
44013A44013-1388 PIPE-FORK INNER, RIGHT HANDPIPE-FORK INNER, RIGHT HAND
-
4401844018-1056 PISTON-FORK,INNER PIPEPISTON-FORK,INNER PIPE
-
4402244022-1314 CYLINDER-FORKCYLINDER-FORK
-
4402644026-1551 SPRING-FRONT FORK,K=3.43N/MM (OPTION)SPRING-FRONT FORK,K=3.43N/MM (OPTION)
-
44026A44026-1552 SPRING-FRONT FORK,K=3.63N/MM (OPTION)SPRING-FRONT FORK,K=3.63N/MM (OPTION)
-
44026B44026-1603 SPRING-FRONT FORK,K=3.725N/MMSPRING-FRONT FORK,K=3.725N/MM
-
4402844028-1081 GUIDE-FORK SPRINGGUIDE-FORK SPRING
-
44028A44028-1084 GUIDE-FORK SPRINGGUIDE-FORK SPRING
-
4402944029-1149 SEAT-FORK SPRINGSEAT-FORK SPRING
-
4403744037-1291 HOLDER-FORK UNDERHOLDER-FORK UNDER
-
4403944039-1240 HOLDER-FORK UPPERHOLDER-FORK UPPER
-
4406344063-1056 HOLDER-FRONT AXLEHOLDER-FRONT AXLE
-
4407044070-1468-828 DAMPER-ASSY,FORK, RIGHT HAND,GOLDDAMPER-ASSY,FORK, RIGHT HAND,GOLD
-
44070A44070-1469-828 DAMPER-ASSY,FORK, LEFT HAND,GOLDDAMPER-ASSY,FORK, LEFT HAND,GOLD
-
4911649116-1145 VALVE-ASSY,FORKVALVE-ASSY,FORK
-
5502055020-0196-RZ GUARD,FORK, LEFT HAND,WHITEGUARD,FORK, LEFT HAND,WHITE
-
55020A55020-0199-RZ GUARD,FORK, RIGHT HAND,WHITEGUARD,FORK, RIGHT HAND,WHITE
-
9200992009-1568 SCREWSCREW
-
9201592015-1653 NUT,STEERING STEM,22MMNUT,STEERING STEM,22MM
-
92015A92015-1839 NUTNUT
-
9202292022-1299 WASHERWASHER
-
92022A92022-1873 WASHER,STEERING STEMWASHER,STEERING STEM
-
9202892028-1581 BUSHINGBUSHING
-
9203392033-1077 RING-SNAPRING-SNAP
-
9204992049-1373 SEAL-OILSEAL-OIL
-
9205592055-1156 RING-ORING-O
-
92055A92055-1333 RING-O,FORK,AIR TUBERING-O,FORK,AIR TUBE
-
92055B92055-1441 RING-ORING-O
-
92055C92055-1502 RING-O,FORK VALVERING-O,FORK VALVE
-
9207292072-1267 BANDBAND
-
92072A92072-1268 BANDBAND
-
9209392093-1342 SEAL,FORK OUTER TUBESEAL,FORK OUTER TUBE
-
9214392143-1643 COLLAR,FORKCOLLAR,FORK
-
9215092150-1340 BOLT,6X14BOLT,6X14
-
92150A92150-1434 BOLT,FLANGED,5X40BOLT,FLANGED,5X40
-
92150B92150-1446 BOLT,FLANGED,8X40BOLT,FLANGED,8X40
-
92150C92150-1516 BOLT,FLANGED,8X40BOLT,FLANGED,8X40
-
9215292152-0315 COLLAR,8X12.7X4COLLAR,8X12.7X4
-
9221092210-1070 NUT,FLANGED,6MMNUT,FLANGED,6MM
