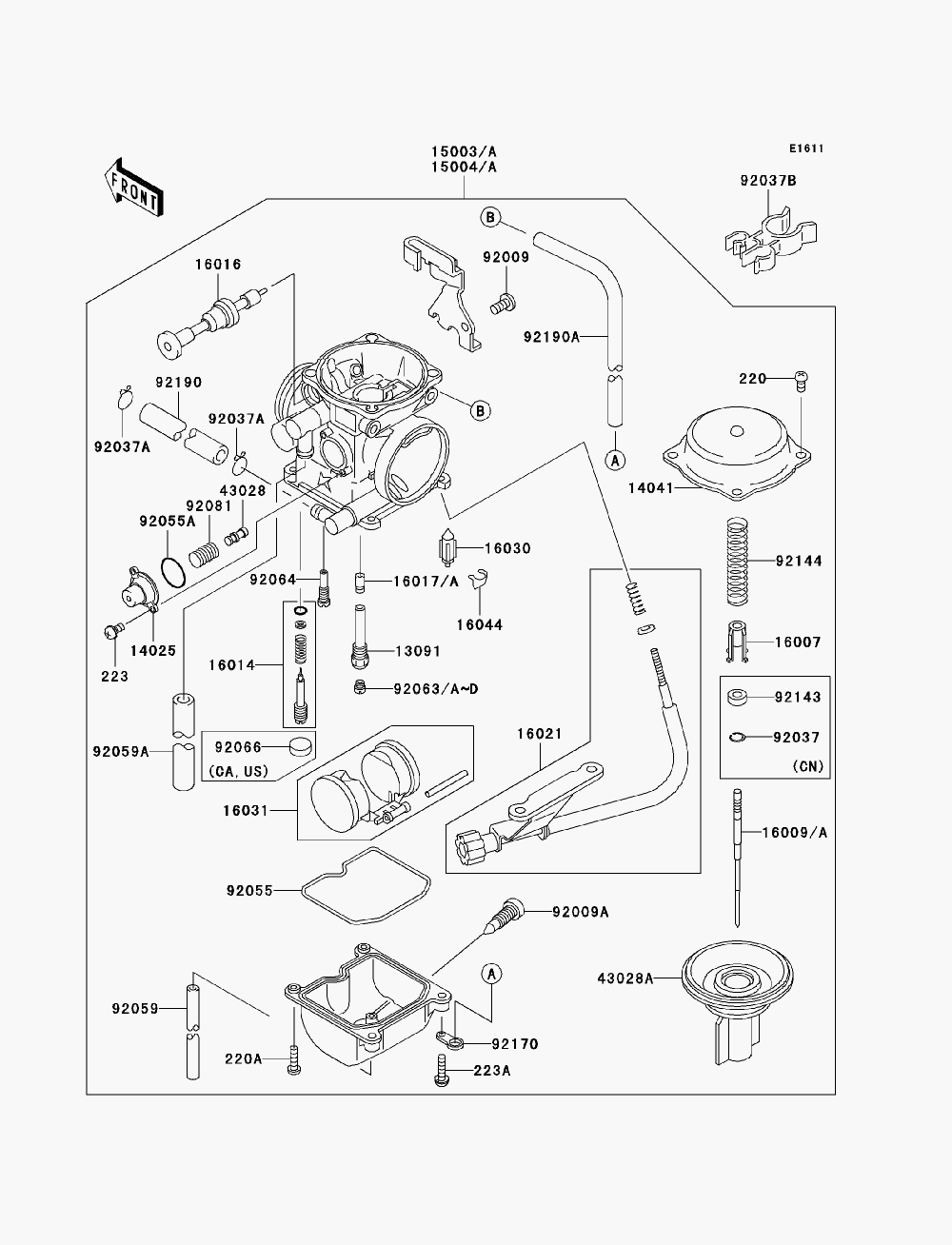

CARBURETOR для Kawasaki KLX300A KLX300R - 2007 года выпуска
-
№АртикулНазвание
-
1309113091-1985 HOLDER,NEEDLE JETHOLDER,NEEDLE JET
-
1402514025-1903 COVER,AIR CUT VALVECOVER,AIR CUT VALVE
-
1404114041-1061 COVER-COMP,MIXING,INSIDECOVER-COMP,MIXING,INSIDE
-
1500415004-0015 CARBURETOR-ASSY (USA ONLY)CARBURETOR-ASSY (USA ONLY)
-
15004A15004-0016 CARBURETOR-ASSY (CANADA ONLY)CARBURETOR-ASSY (CANADA ONLY)
-
1600716007-1117 SEAT-SPRING,VALVESEAT-SPRING,VALVE
-
1600916009-1912 NEEDLE-JET,N1TC (CANADA ONLY)NEEDLE-JET,N1TC (CANADA ONLY)
-
16009A16009-1996 NEEDLE-JET,N5AF (USA ONLY)NEEDLE-JET,N5AF (USA ONLY)
-
1601416014-1081 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-1068 PLUNGER,STARTERPLUNGER,STARTER
-
1601716017-1368 JET-NEEDLE (CANADA ONLY)JET-NEEDLE (CANADA ONLY)
-
16017A16017-1396 JET-NEEDLE (USA ONLY)JET-NEEDLE (USA ONLY)
-
1602116021-1182 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1603016030-1007 VALVE-FLOATVALVE-FLOAT
-
1603116031-1077 FLOATFLOAT
-
1604416044-007 CLAMP,FLOAT VALVECLAMP,FLOAT VALVE
-
4302843028-1053 DIAPHRAGM,5.9MM,AIR CUT VALVEDIAPHRAGM,5.9MM,AIR CUT VALVE
-
43028A43028-1081 DIAPHRAGM,VALVEDIAPHRAGM,VALVE
-
9200992009-1365 SCREW,5X10SCREW,5X10
-
92009A92009-1551 SCREW,DRAIN,6X0.75SCREW,DRAIN,6X0.75
-
9203792037-1401 CLAMP,JET NEEDLE (CANADA ONLY)CLAMP,JET NEEDLE (CANADA ONLY)
-
92037A92037-1531 CLAMP,TUBECLAMP,TUBE
-
92037B92037-1886 CLAMPCLAMP
-
9205592055-1222 RING-O,FLOAT CHAMBERRING-O,FLOAT CHAMBER
-
92055A92055-1245 RING-ORING-O
-
9205992059-1110 TUBE,3.5X6.5X330TUBE,3.5X6.5X330
-
92059A92059-1237 TUBE,6.5X9.5X350TUBE,6.5X9.5X350
-
9206392063-1069 JET-MAIN,#125 (OFF ROAD USE ONLY)JET-MAIN,#125 (OFF ROAD USE ONLY)
-
92063A92063-1073 JET-MAIN,#122 (OFF ROAD USE ONLY)JET-MAIN,#122 (OFF ROAD USE ONLY)
-
220220B0408 SCREW-PAN-CROS,4X8SCREW-PAN-CROS,4X8
-
220A220D0414 SCREW-PAN-CROS,4X14SCREW-PAN-CROS,4X14
-
223223C0408 SCREW-PAN-WS-CROS,4X8SCREW-PAN-WS-CROS,4X8
-
223A223C0416 SCREW-PAN-WS-CROS,4X16SCREW-PAN-WS-CROS,4X16
-
92063B92063-1074 JET-MAIN,#128JET-MAIN,#128
-
92063C92063-1075 JET-MAIN,#130 (OFF ROAD USE ONLY)JET-MAIN,#130 (OFF ROAD USE ONLY)
-
92063D92063-1076 JET-MAIN,#132 (OFF ROAD USE ONLY)JET-MAIN,#132 (OFF ROAD USE ONLY)
-
9206492064-1101 JET-PILOT,#35JET-PILOT,#35
-
9206692066-1051 PLUG,PILOT AIR SCREW,6.9X2 (USA ONLY)PLUG,PILOT AIR SCREW,6.9X2 (USA ONLY)
-
9208192081-1719 SPRING,AIR CUT VALVESPRING,AIR CUT VALVE
-
9214392143-1667 COLLAR (CANADA ONLY)COLLAR (CANADA ONLY)
-
9214492144-1538 SPRING,VACUUM VALVESPRING,VACUUM VALVE
-
9217092170-1496 CLAMP,TUBECLAMP,TUBE
-
9219092190-1474 TUBE,6.5X11.5X100TUBE,6.5X11.5X100
-
92190A92190-1560 TUBE,5X8X430TUBE,5X8X430
