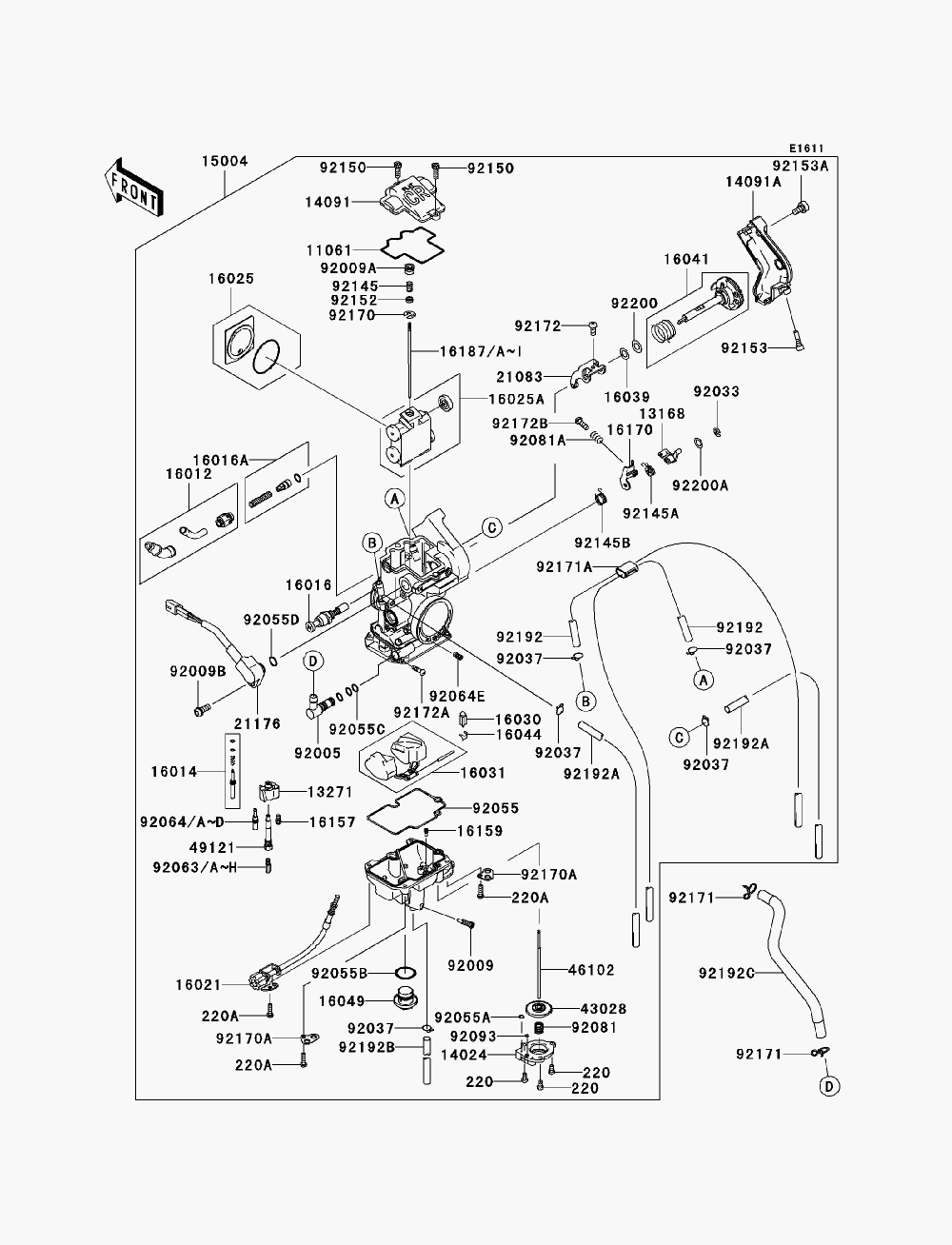

CARBURETOR для Kawasaki KX250T (KX250T7F) - 2007 года выпуска
-
№АртикулНазвание
-
1106111061-0077 GASKETGASKET
-
1316813168-0051 LEVERLEVER
-
1327113271-0241 PLATEPLATE
-
1402414024-1971 COVERCOVER
-
1409114091-0208 COVER,TOPCOVER,TOP
-
14091A14091-0209 COVERCOVER
-
1500415004-0010 CARBURETOR-ASSY,FCR-37CARBURETOR-ASSY,FCR-37
-
1601216012-0002 CAP-STARTER PLUNGERCAP-STARTER PLUNGER
-
1601416014-0004 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-0009 PLUNGERPLUNGER
-
16016A16016-0017 PLUNGERPLUNGER
-
1602116021-0005 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1602516025-0009 VALVE-THROTTLEVALVE-THROTTLE
-
16025A16025-0013 VALVE-THROTTLEVALVE-THROTTLE
-
1603016030-1057 VALVE-FLOATVALVE-FLOAT
-
1603116031-1100 FLOATFLOAT
-
1603916039-0230 WASHERWASHER
-
1604116041-0004 SHAFT-CARBURETORSHAFT-CARBURETOR
-
1604416044-007 CLAMP,FLOAT VALVECLAMP,FLOAT VALVE
-
1604916049-1051 COVER-MAIN JETCOVER-MAIN JET
-
1615716157-0001 JET-STARTER,#68JET-STARTER,#68
-
1615916159-1054 JET-POWER,#55JET-POWER,#55
-
1617016170-0003 LINK-ASSYLINK-ASSY
-
1618716187-0238 NEEDLE-JET,NHJR (OPTION)NEEDLE-JET,NHJR (OPTION)
-
16187A16187-0239 NEEDLE-JET,NHJS (OPTION)NEEDLE-JET,NHJS (OPTION)
-
16187B16187-0240 NEEDLE-JET,NHJTNEEDLE-JET,NHJT
-
16187C16187-0241 NEEDLE-JET,NHJU (OPTION)NEEDLE-JET,NHJU (OPTION)
-
16187D16187-0242 NEEDLE-JET,NHJV (OPTION)NEEDLE-JET,NHJV (OPTION)
-
16187E16187-0262 NEEDLE-JET,NHKR (OPTION)NEEDLE-JET,NHKR (OPTION)
-
16187F16187-0263 NEEDLE-JET,NHKS (OPTION)NEEDLE-JET,NHKS (OPTION)
-
16187G16187-0264 NEEDLE-JET,NHKT (OPTION)NEEDLE-JET,NHKT (OPTION)
-
16187H16187-0265 NEEDLE-JET,NHKU (OPTION)NEEDLE-JET,NHKU (OPTION)
-
16187I16187-0266 NEEDLE-JET,NHKV (OPTION)NEEDLE-JET,NHKV (OPTION)
-
2108321083-0035 ARMARM
-
2117621176-0016 SENSOR,THROTTLESENSOR,THROTTLE
-
4302843028-0001 DIAPHRAGMDIAPHRAGM
-
4610246102-0033 RODROD
-
4912149121-0001 NOZZLE-MAINNOZZLE-MAIN
-
9200592005-0016 FITTINGFITTING
-
9200992009-1551 SCREW,DRAIN,6X0.75SCREW,DRAIN,6X0.75
-
92009A92009-1876 SCREWSCREW
-
92009B92009-1981 SCREW,THROTTLE SENSORSCREW,THROTTLE SENSOR
-
9203392033-0018 RING-SNAPRING-SNAP
-
9203792037-1396 CLAMP,TUBECLAMP,TUBE
-
9205592055-0066 RING-O,FLOAT CHAMBERRING-O,FLOAT CHAMBER
-
92055A92055-1004 RING-ORING-O
-
92055B92055-1167 RING-O,MAIN JET COVERRING-O,MAIN JET COVER
-
92055C92055-1223 RING-ORING-O
-
92055D92055-1671 RING-ORING-O
-
9206392063-1373 JET-MAIN,#172 (OPTION)JET-MAIN,#172 (OPTION)
-
92063A92063-1374 JET-MAIN,#175 (OPTION)JET-MAIN,#175 (OPTION)
-
92063B92063-1375 JET-MAIN,#178 (OPTION)JET-MAIN,#178 (OPTION)
-
92063C92063-1376 JET-MAIN,#180 (OPTION)JET-MAIN,#180 (OPTION)
-
92063D92063-1377 JET-MAIN,#182JET-MAIN,#182
-
92063E92063-1378 JET-MAIN,#185 (OPTION)JET-MAIN,#185 (OPTION)
-
92063F92063-1379 JET-MAIN,#188 (OPTION)JET-MAIN,#188 (OPTION)
-
92063G92063-1380 JET-MAIN,#190 (OPTION)JET-MAIN,#190 (OPTION)
-
92063H92063-1381 JET-MAIN,#192 (OPTION)JET-MAIN,#192 (OPTION)
-
9206492064-1138 JET-PILOT,#35 (OPTION)JET-PILOT,#35 (OPTION)
-
92064A92064-1139 JET-PILOT,#38 (OPTION)JET-PILOT,#38 (OPTION)
-
92064B92064-1140 JET-PILOT,#40JET-PILOT,#40
-
92064C92064-1141 JET-PILOT,#42 (OPTION)JET-PILOT,#42 (OPTION)
-
92064D92064-1142 JET-PILOT,#45 (OPTION)JET-PILOT,#45 (OPTION)
-
220220D0408 SCREW-PAN-CROS,4X8SCREW-PAN-CROS,4X8
-
220A220D0414 SCREW-PAN-CROS,4X14SCREW-PAN-CROS,4X14
-
92064E92064-1160 JET-PILOT,#100JET-PILOT,#100
-
9208192081-1092 SPRING,DIAPHRAGMSPRING,DIAPHRAGM
-
92081A92081-1620 SPRINGSPRING
-
9209392093-1046 SEAL,"U"RINGSEAL,"U"RING
-
9214592145-0164 SPRINGSPRING
-
92145A92145-0166 SPRINGSPRING
-
92145B92145-0167 SPRINGSPRING
-
9215092150-1426 BOLT,SOCKET,4X12BOLT,SOCKET,4X12
-
9215292152-0141 COLLARCOLLAR
-
9215392153-0638 BOLTBOLT
-
92153A92153-0639 BOLTBOLT
-
9217092170-1204 CLAMP,JET NEEDLECLAMP,JET NEEDLE
-
92170A92170-1582 CLAMPCLAMP
-
9217192171-0149 CLAMPCLAMP
-
92171A92171-0246 CLAMPCLAMP
-
9217292172-0127 SCREWSCREW
-
92172A92172-0128 SCREWSCREW
-
92172B92172-0129 SCREWSCREW
-
9219292192-0083 TUBETUBE
-
92192A92192-0084 TUBETUBE
-
92192B92192-0085 TUBETUBE
-
92192C92192-0332 TUBE,FUEL,L=235TUBE,FUEL,L=235
-
9220092200-0107 WASHERWASHER
-
92200A92200-1434 WASHER,LINK ARM,STAINLESSWASHER,LINK ARM,STAINLESS
