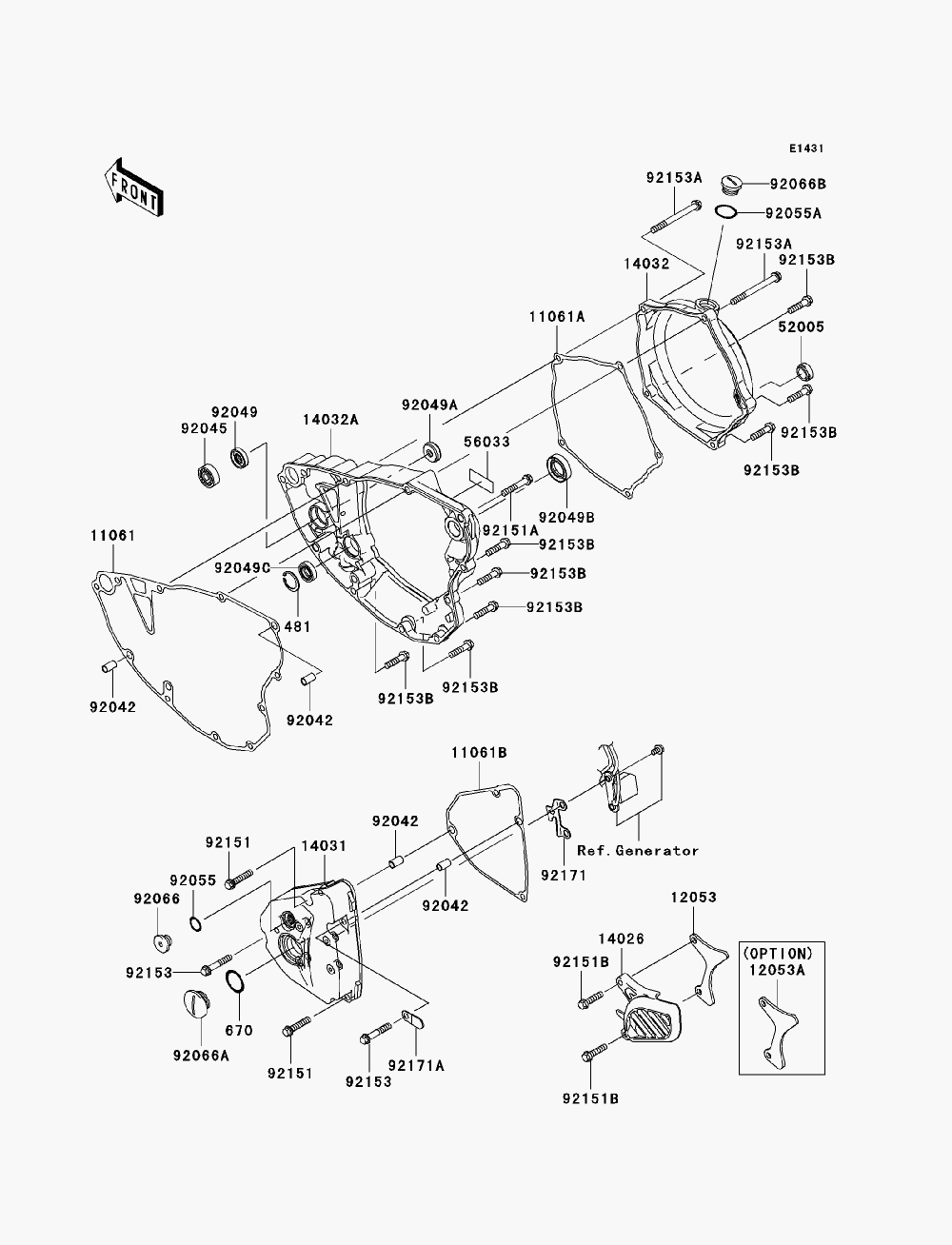

ENGINE COVER для Kawasaki KX250T (KX250T7F) - 2007 года выпуска
-
№АртикулНазвание
-
481481J2200 CIRCLIPCIRCLIP
-
670670B2022 O RING,22MMO RING,22MM
-
1106111061-0030 GASKET,CLUTCH COVER,INNERGASKET,CLUTCH COVER,INNER
-
11061A11061-0031 GASKET,CLUTCH COVER,OUTERGASKET,CLUTCH COVER,OUTER
-
11061B11061-0032 GASKET,GENERATOR COVERGASKET,GENERATOR COVER
-
1205312053-0011 GUIDE-CHAIN,13TGUIDE-CHAIN,13T
-
12053A12053-0018 GUIDE-CHAIN,12T (OPTION)GUIDE-CHAIN,12T (OPTION)
-
1402614026-0026 COVER-CHAINCOVER-CHAIN
-
1403114031-0077 COVER-GENERATORCOVER-GENERATOR
-
1403214032-0049 COVER-CLUTCH,OUTERCOVER-CLUTCH,OUTER
-
14032A14032-0057 COVER-CLUTCH,INNERCOVER-CLUTCH,INNER
-
5200552005-1009 GAUGE,OIL LEVELGAUGE,OIL LEVEL
-
5603356033-0049 LABEL-MANUAL,OIL CAPACITYLABEL-MANUAL,OIL CAPACITY
-
9204292042-007 PIN,DOWEL,6.3X8X14PIN,DOWEL,6.3X8X14
-
9204592045-1123 BEARING-BALL,#628BEARING-BALL,#628
-
9204992049-0060 SEAL-OIL,SD 8 22 5 ZSSEAL-OIL,SD 8 22 5 ZS
-
92049A92049-0061 SEAL-OILSEAL-OIL
-
92049B92049-013 SEAL-OIL,SB18307SEAL-OIL,SB18307
-
92049C92049-1519 SEAL-OIL,TC13225.5SEAL-OIL,TC13225.5
-
9205592055-1011 RING-O,13.0X1.9RING-O,13.0X1.9
-
92055A92055-1146 RING-O,20X2RING-O,20X2
-
9206692066-0039 PLUG,12X9.1PLUG,12X9.1
-
92066A92066-0059 PLUG,OILPLUG,OIL
-
92066B92066-0060 PLUG,OILPLUG,OIL
-
9215192151-1134 BOLT,6X30BOLT,6X30
-
92151A92151-1135 BOLT,6X35BOLT,6X35
-
92151B92151-1930 BOLT,FLANGED-SMALL,6X25BOLT,FLANGED-SMALL,6X25
-
9215392153-0668 BOLT,6X35BOLT,6X35
-
92153A92153-0697 BOLT,6X65BOLT,6X65
-
92153B92153-1784 BOLT,FLANGED-SMALL,6X25BOLT,FLANGED-SMALL,6X25
-
9217192171-0195 CLAMP,HARNESSCLAMP,HARNESS
-
92171A92171-0295 CLAMPCLAMP
