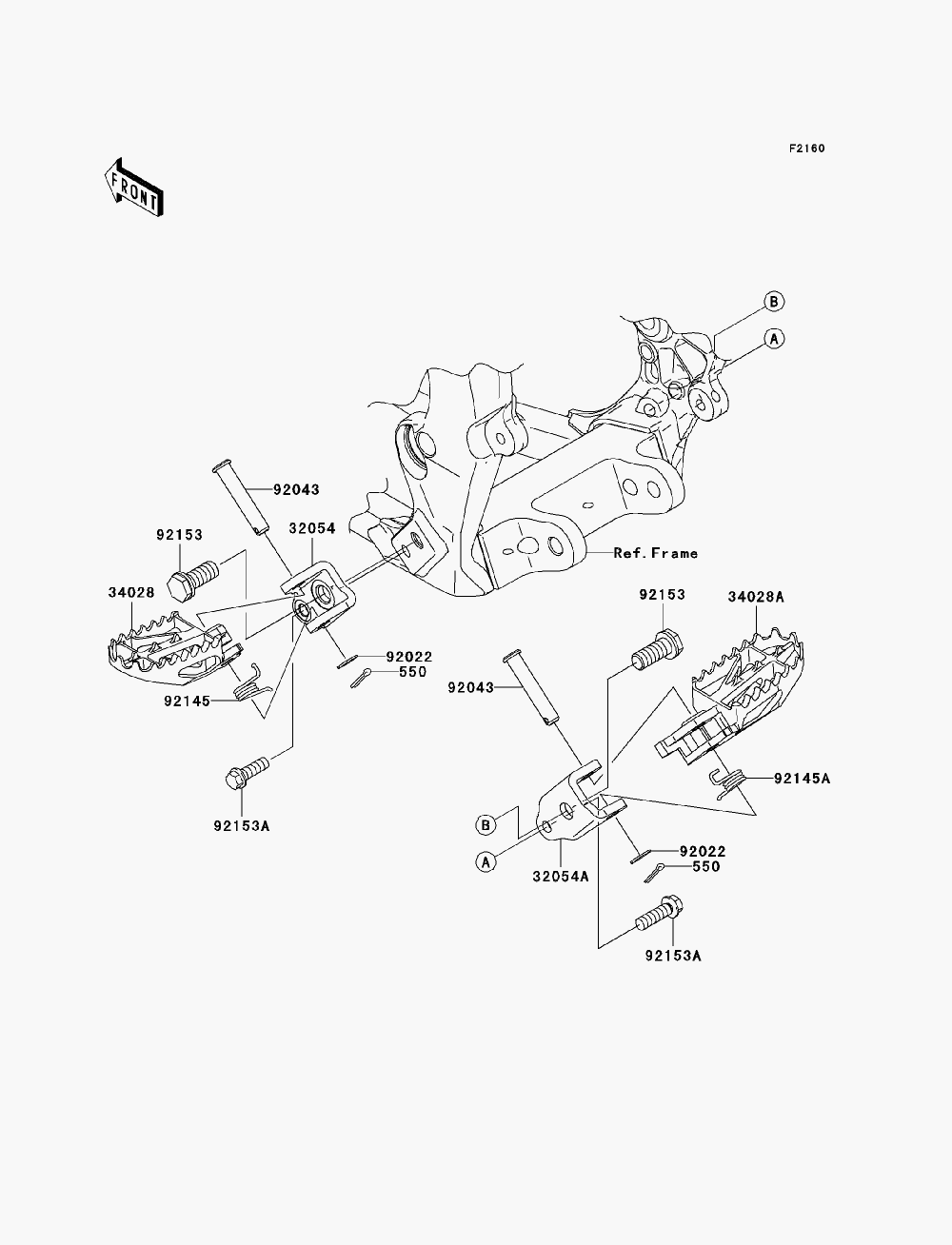

FOOTRESTS для Kawasaki KX250T (KX250T7F) - 2007 года выпуска
-
№АртикулНазвание
-
550550S3020 PIN-COTTER,3.0X20PIN-COTTER,3.0X20
-
3205432054-0020 BRACKET-STEP, LEFT HANDBRACKET-STEP, LEFT HAND
-
32054A32054-0021 BRACKET-STEP, RIGHT HANDBRACKET-STEP, RIGHT HAND
-
3402834028-0014 STEP, LEFT HANDSTEP, LEFT HAND
-
34028A34028-0015 STEP, RIGHT HANDSTEP, RIGHT HAND
-
9202292022-1829 WASHER,10.2X16X1WASHER,10.2X16X1
-
9204392043-0074 PIN,10X42.5PIN,10X42.5
-
9214592145-0198 SPRING,STEP, LEFT HANDSPRING,STEP, LEFT HAND
-
92145A92145-0199 SPRING,STEP, RIGHT HANDSPRING,STEP, RIGHT HAND
-
9215392153-0653 BOLT,FLANGED,12X23BOLT,FLANGED,12X23
-
92153A92153-0838 BOLT,FLANGED,8X25BOLT,FLANGED,8X25
