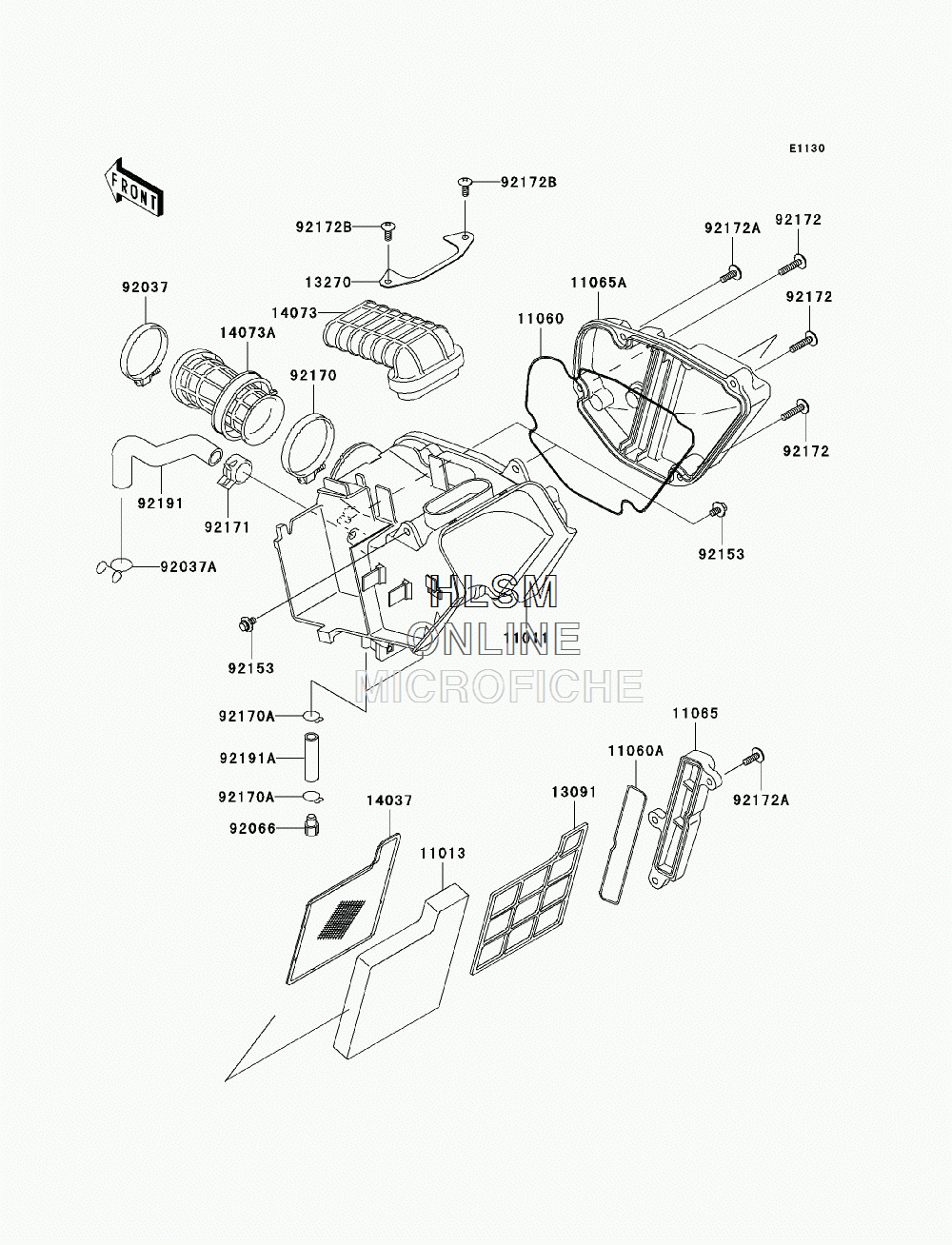

AIR CLEANER для Kawasaki SUPER SHERPA CANADA ONLY (KL250G9F) - 2009 года выпуска
-
№АртикулНазвание
-
1101111011-1625 CASE-AIR FILTERCASE-AIR FILTER
-
1101311013-1265 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1106011060-1773 GASKET,AIR FILTERGASKET,AIR FILTER
-
11060A11060-1799 GASKET,AIR FILTER CAPGASKET,AIR FILTER CAP
-
1106511065-1066 CAP,AIR FILTERCAP,AIR FILTER
-
11065A11065-1191 CAP,AIR FILTERCAP,AIR FILTER
-
1309113091-1989 HOLDERHOLDER
-
1327013270-1880 PLATEPLATE
-
1403714037-1236 SCREENSCREEN
-
1407314073-1689 DUCT,AIR INTAKEDUCT,AIR INTAKE
-
14073A14073-1709 DUCT,AIR OUTLETDUCT,AIR OUTLET
-
9203792037-1554 CLAMPCLAMP
-
92037A92037-213 CLAMP,TUBECLAMP,TUBE
-
9206692066-1475 PLUG,DRAINPLUG,DRAIN
-
9215392153-0503 BOLT,6X12BOLT,6X12
-
9217092170-1760 CLAMPCLAMP
-
92170A92170-1796 CLAMP,11.6MMCLAMP,11.6MM
-
9217192171-0329 CLAMPCLAMP
-
9217292172-0224 SCREW,6X28SCREW,6X28
-
92172A92172-0225 SCREW,6X18SCREW,6X18
-
92172B92172-0227 SCREW,6X16SCREW,6X16
-
9219192191-1128 TUBE,BREATHERTUBE,BREATHER
-
92191A92191-1172 TUBE,8X12X50TUBE,8X12X50
