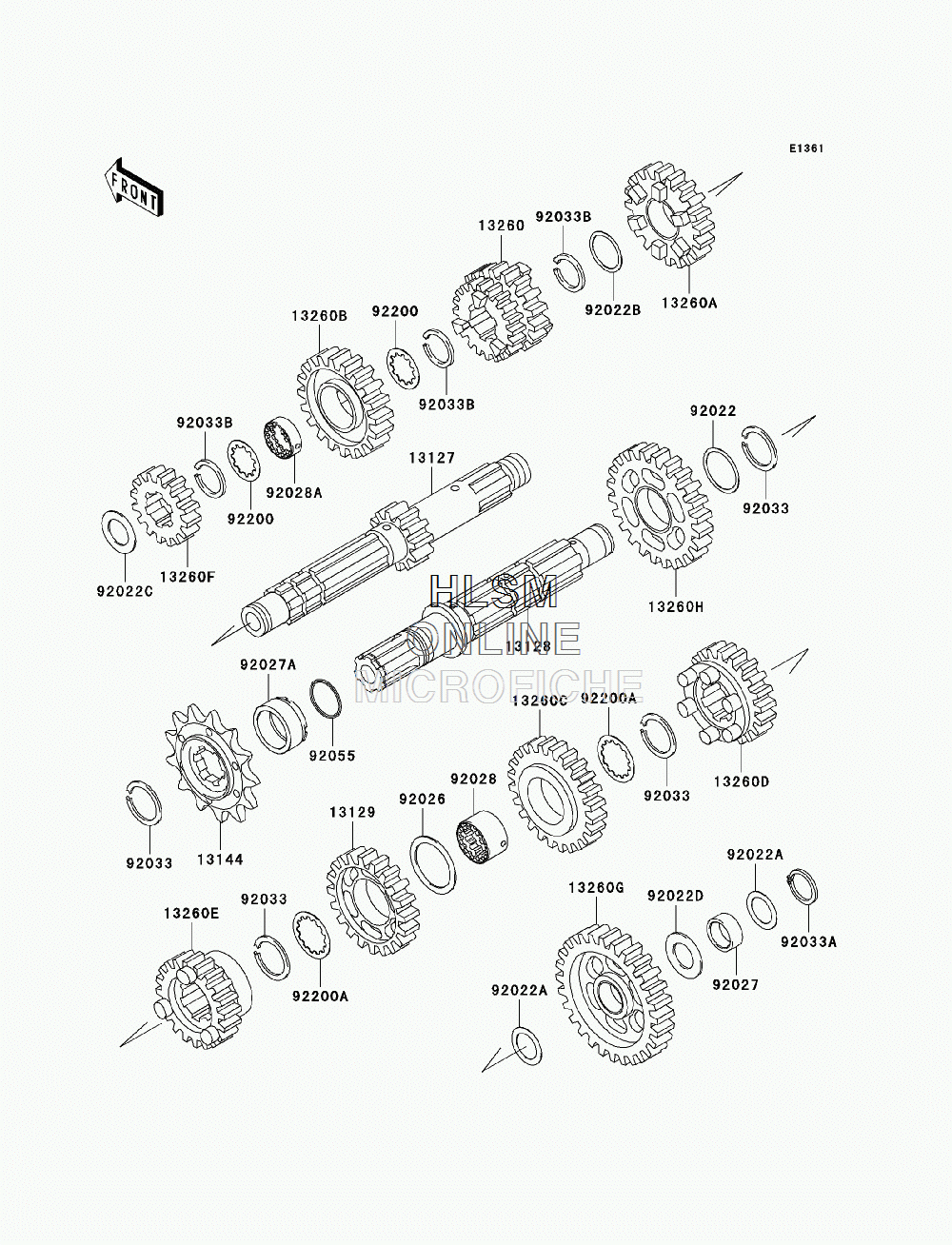

TRANSMISSION для Kawasaki SUPER SHERPA CANADA ONLY (KL250G9F) - 2009 года выпуска
-
№АртикулНазвание
-
1312713127-1258 SHAFT-TRANSMISSION INPUT,11TSHAFT-TRANSMISSION INPUT,11T
-
1312813128-1224 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1312913129-1650 GEAR,OUTPUT 3RD,27TGEAR,OUTPUT 3RD,27T
-
1314413144-1237 SPROCKET-OUTPUT,14TSPROCKET-OUTPUT,14T
-
1326013260-1656 GEAR,INPUT 3RD & 4TH,18T & 27TGEAR,INPUT 3RD & 4TH,18T & 27T
-
13260A13260-1657 GEAR,INPUT 5TH,26TGEAR,INPUT 5TH,26T
-
13260B13260-1658 GEAR,INPUT TOP,27TGEAR,INPUT TOP,27T
-
13260C13260-1660 GEAR,OUTPUT 4TH,31TGEAR,OUTPUT 4TH,31T
-
13260D13260-1661 GEAR,OUTPUT 5TH,25TGEAR,OUTPUT 5TH,25T
-
13260E13260-1662 GEAR,OUTPUT TOP,23TGEAR,OUTPUT TOP,23T
-
13260F13260-1672 GEAR,INPUT 2ND,16TGEAR,INPUT 2ND,16T
-
13260G13260-1673 GEAR,OUTPUT LOW,34TGEAR,OUTPUT LOW,34T
-
13260H13260-1674 GEAR,OUTPUT 2ND,34TGEAR,OUTPUT 2ND,34T
-
9202292022-159 WASHER,25.3X30X0.5WASHER,25.3X30X0.5
-
92022A92022-1614 WASHER,17.3X25X0.5WASHER,17.3X25X0.5
-
92022B92022-198 WASHER,22.3X27X0.5WASHER,22.3X27X0.5
-
92022C92022-255 WASHER,17.3X28X1WASHER,17.3X28X1
-
92022D92022-270 WASHER,17.3X30X1.4WASHER,17.3X30X1.4
-
9202692026-079 SPACER,30X38X1.0SPACER,30X38X1.0
-
9202792027-1315 COLLAR,17X22X8.5COLLAR,17X22X8.5
-
92027A92027-1800 COLLAR,25X32X15.3COLLAR,25X32X15.3
-
9202892028-1822 BUSHING,OUTPUT 3RD & 4TH GEARBUSHING,OUTPUT 3RD & 4TH GEAR
-
92028A92028-1823 BUSHING,INPUT TOP GEARBUSHING,INPUT TOP GEAR
-
9203392033-026 RING-SNAP,24MMRING-SNAP,24MM
-
92033A92033-032 RING-SNAPRING-SNAP
-
92033B92033-1293 RING-SNAPRING-SNAP
-
9205592055-1293 RING-O,21.5X1.5RING-O,21.5X1.5
-
9220092200-1370 WASHER,INPUTWASHER,INPUT
-
92200A92200-1371 WASHER,OUTPUTWASHER,OUTPUT
