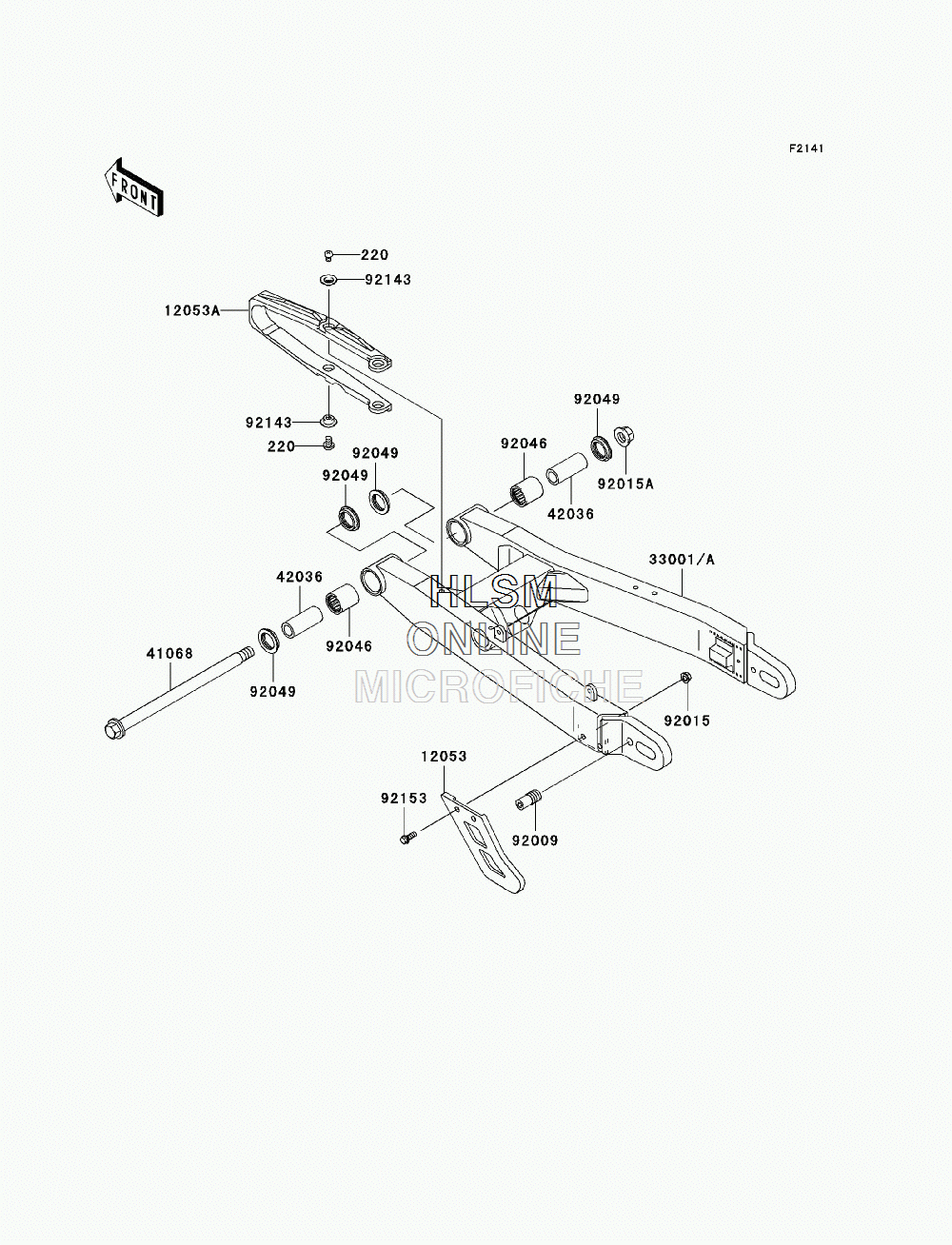

SUSPENSION - SWINGARM для Kawasaki SUPER SHERPA CANADA ONLY (KL250G9F) - 2009 года выпуска
-
№АртикулНазвание
-
220220AA0608 SCREW-PAN-CROS,6X8SCREW-PAN-CROS,6X8
-
1205312053-1389 GUIDE-CHAIN, REARGUIDE-CHAIN, REAR
-
12053A12053-1392 GUIDE-CHAIN, FRONTGUIDE-CHAIN, FRONT
-
3300133001-1526-CE ARM-COMP-SWING,SILVERARM-COMP-SWING,SILVER
-
4106841068-1078 AXLE, FRONT,15X242AXLE, FRONT,15X242
-
4203642036-1335 SLEEVE,15.1X22X52SLEEVE,15.1X22X52
-
9200992009-1789 SCREW,SET,SOCKET,10X21SCREW,SET,SOCKET,10X21
-
9201592015-1078 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
92015A92015-1407 NUT,14MMNUT,14MM
-
9204692046-1174 BEARING-NEEDLE,TA2230ZBEARING-NEEDLE,TA2230Z
-
9204992049-1289 SEAL-OIL,MHA22X29X5.7FSEAL-OIL,MHA22X29X5.7F
-
9214392143-1156 COLLARCOLLAR
-
9215392153-0695 BOLT,6X16BOLT,6X16
