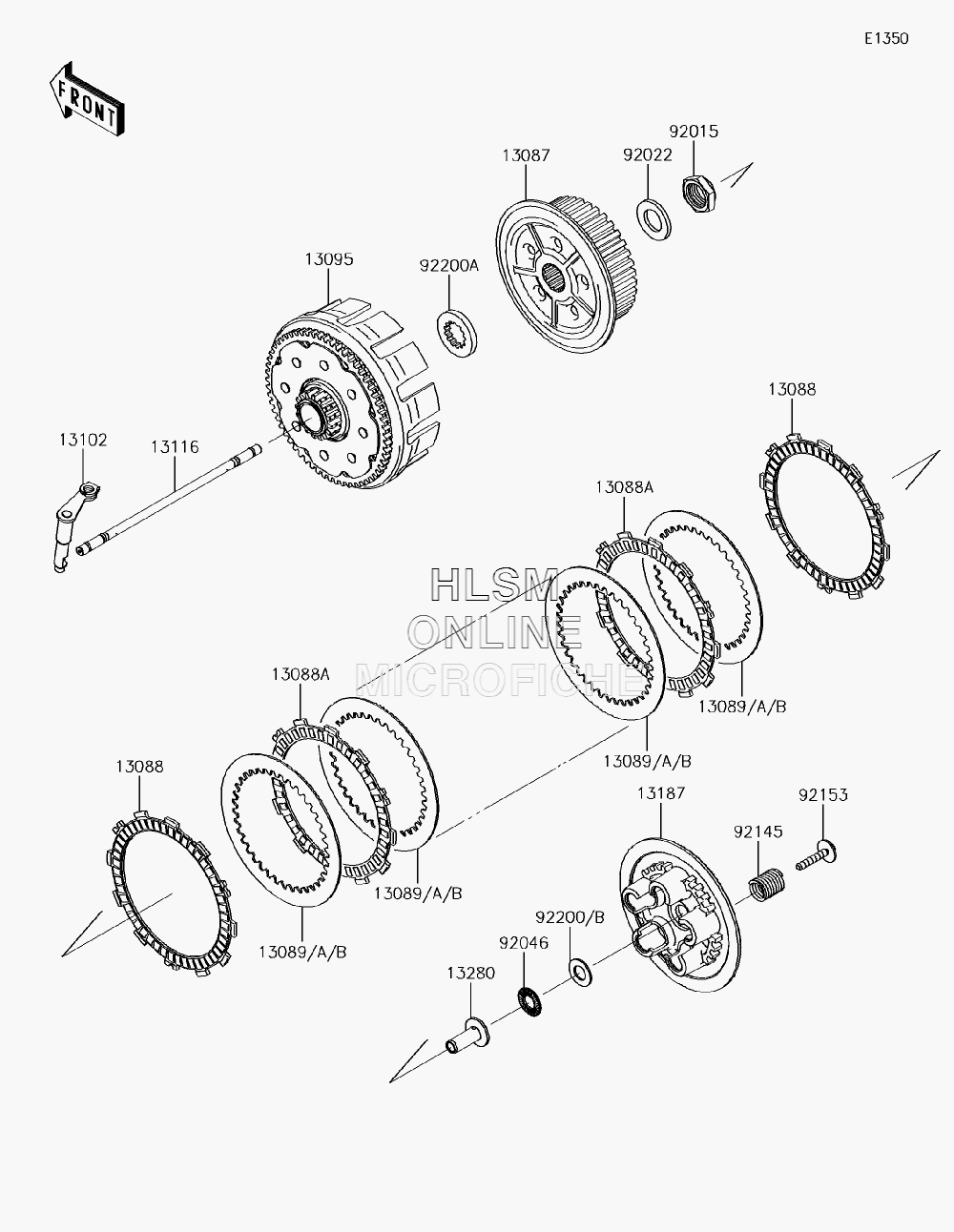

CLUTCH для Kawasaki KX450F (KX450HJF) - 2018 года выпуска
-
№АртикулНазвание
-
1308713087-0015 HUB-CLUTCHHUB-CLUTCH
-
1308813088-0586 PLATE-FRICTIONPLATE-FRICTION
-
13088A13088-0587 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-1005 PLATE-CLUTCH, T=2.0PLATE-CLUTCH, T=2.0
-
13089A13089-1010 PLATE-CLUTCH, T=1.2PLATE-CLUTCH, T=1.2
-
13089B13089-1095 PLATE-CLUTCH, T=1.6PLATE-CLUTCH, T=1.6
-
1309513095-0122 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1310213102-0048 RELEASE-COMP-CLUTCHRELEASE-COMP-CLUTCH
-
1311613116-0728 ROD-PUSHROD-PUSH
-
1318713187-0018 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
1328013280-0876 HOLDERHOLDER
-
9201592015-1725 NUT, 20MMNUT, 20MM
-
9202292022-1868 WASHER, 20.3X36X3.7WASHER, 20.3X36X3.7
-
9204692046-1190 BEARING-NEEDLE, FNTA-1326BEARING-NEEDLE, FNTA-1326
-
9214592145-0862 SPRING, CLUTCHSPRING, CLUTCH
-
9215392153-1876 BOLT, WP, 6X35BOLT, WP, 6X35
-
9220092200-0045 WASHER, 13.4X25X1.0WASHER, 13.4X25X1.0
-
92200A92200-0245 WASHER, 25X41X5.5WASHER, 25X41X5.5
-
92200B92200-1548 WASHER, 13.4X25.0X1.5WASHER, 13.4X25.0X1.5
