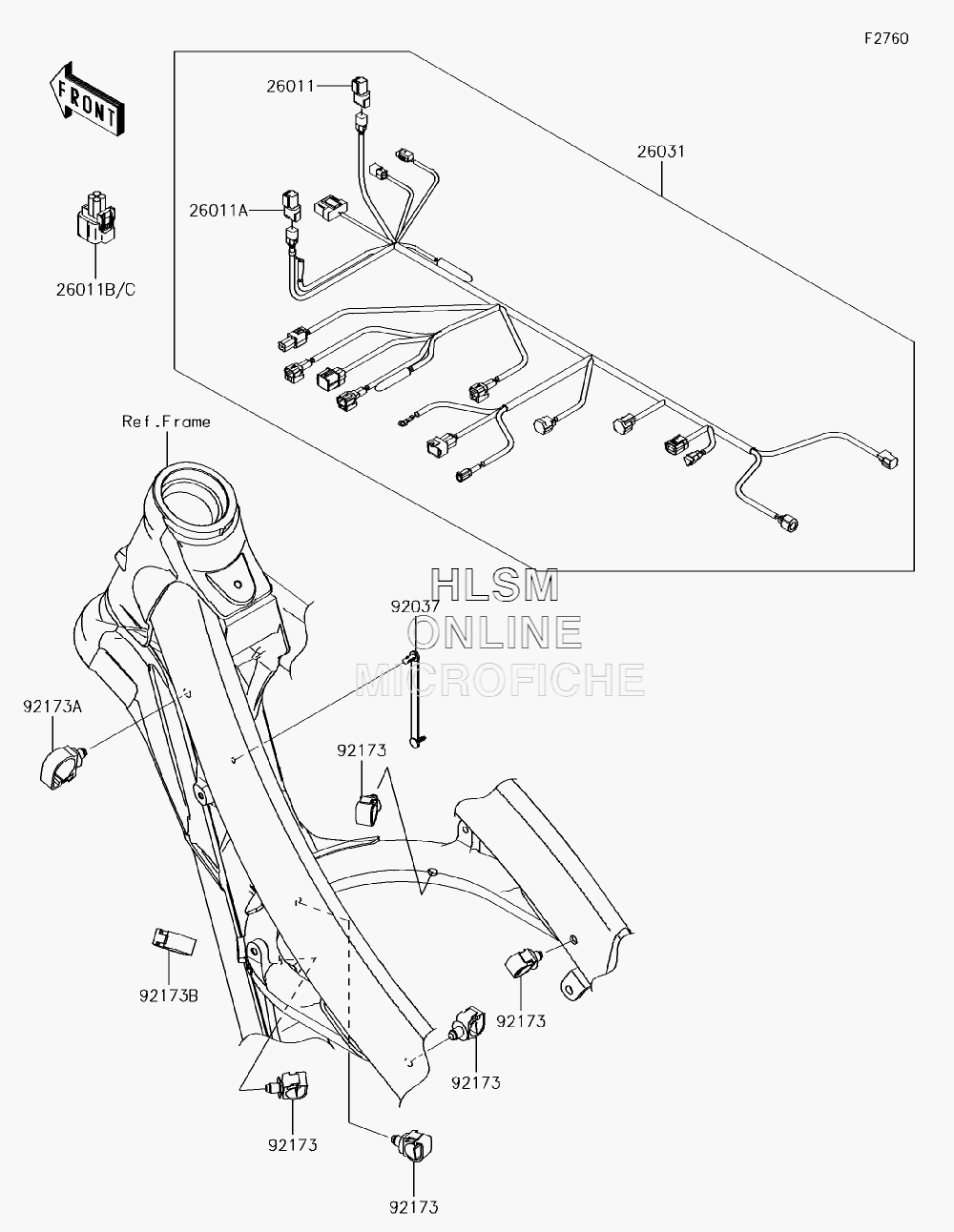

ELECTRICAL - CHASSIS для Kawasaki KX450F (KX450HJF) - 2018 года выпуска
-
№АртикулНазвание
-
2601126011-0273 WIRE-LEAD, (NATURAL)WIRE-LEAD, (NATURAL)
-
26011A26011-0727 WIRE-LEAD, (GREEN)WIRE-LEAD, (GREEN)
-
26011B26011-0728 WIRE-LEAD, MODE SELECT, (BLACK)WIRE-LEAD, MODE SELECT, (BLACK)
-
26011C26011-0748 WIRE-LEAD, MODE SELECT, (WHITE)WIRE-LEAD, MODE SELECT, (WHITE)
-
2603126031-2096 HARNESS, MAINHARNESS, MAIN
-
9203792037-1903 CLAMP, SPEED, L=80.5CLAMP, SPEED, L=80.5
-
9217392173-0736 CLAMP, 12MM DIA.CLAMP, 12MM DIA.
-
92173A92173-0861 CLAMPCLAMP
-
92173B92173-1156 CLAMP, HARNESSCLAMP, HARNESS
