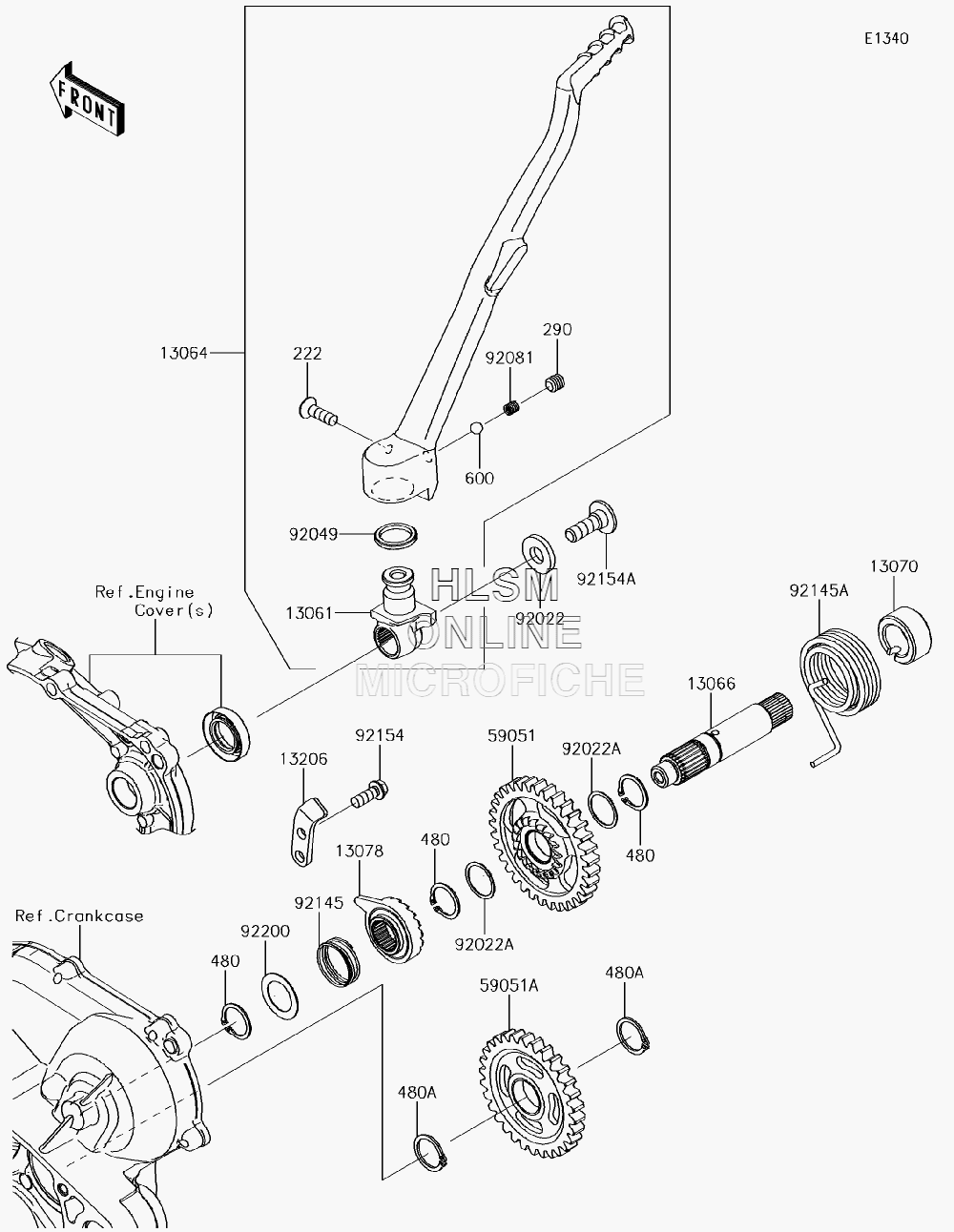

KICKSTARTER MECHANISM для Kawasaki KX450F (KX450HJF) - 2018 года выпуска
-
№АртикулНазвание
-
1306113061-0817 BOSSBOSS
-
1306413064-0077 LEVER-ASSY-KICKLEVER-ASSY-KICK
-
1306613066-0017 SHAFT-KICKSHAFT-KICK
-
1307013070-0815 GUIDEGUIDE
-
1307813078-0031 RATCHETRATCHET
-
1320613206-0007 GUIDE-KICKGUIDE-KICK
-
222222AA0620 SCREW-CSK-RD-CROS, 6X20SCREW-CSK-RD-CROS, 6X20
-
290290CA0808 SCREW-SET-SOCKET, 8X8SCREW-SET-SOCKET, 8X8
-
480480J1800 CIRCLIP-TYPE-C, 18MMCIRCLIP-TYPE-C, 18MM
-
480A480J1900 CIRCLIP-TYPE-C, 19MMCIRCLIP-TYPE-C, 19MM
-
5905159051-0046 GEAR-SPUR, 33TGEAR-SPUR, 33T
-
59051A59051-0776 GEAR-SPUR, KICK IDLER, 30TGEAR-SPUR, KICK IDLER, 30T
-
600600A0800 BALL-STEEL, 1/4BALL-STEEL, 1/4
-
9202292022-1944 WASHER, 10X22X3.2WASHER, 10X22X3.2
-
92022A92022-271 WASHER, 18.3X22X0.5WASHER, 18.3X22X0.5
-
9204992049-1387 SEAL-OIL, KICK PEDALSEAL-OIL, KICK PEDAL
-
9208192081-020 SPRING, KICK PEDALSPRING, KICK PEDAL
-
9214592145-0499 SPRINGSPRING
-
92145A92145-1668 SPRING, RETURNSPRING, RETURN
-
9215492154-1926 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92154A92154-1943 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9220092200-0378 WASHER, 18.3X27.5X0.5WASHER, 18.3X27.5X0.5
