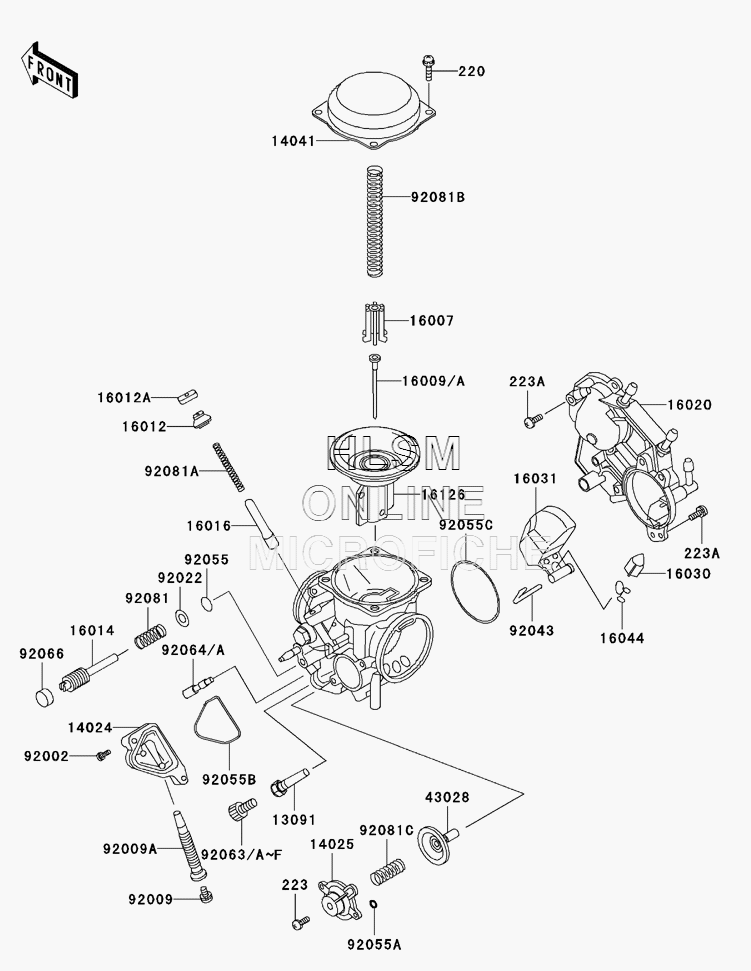

CARBURETOR PARTS для Kawasaki Vulcan 750 - 2001 года выпуска
-
№АртикулНазвание
-
1309113091-1384 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
1402414024-1094 COVER, DRAINCOVER, DRAIN
-
1402514025-1903 COVER, AIR CUT VALVECOVER, AIR CUT VALVE
-
1404114041-1061 COVER, COMP, MIXING, INSIDECOVER, COMP, MIXING, INSIDE
-
1600716007-1117 SEAT, SPRING, VALVESEAT, SPRING, VALVE
-
1600916009-1327 NEEDLE, JET, N53A, FRONTNEEDLE, JET, N53A, FRONT
-
16009A16009-1328 NEEDLE, JET, N53B, REARNEEDLE, JET, N53B, REAR
-
1601216012-1051 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
16012A16012-1052 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
1601416014-1054 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-1066 PLUNGER, STARTERPLUNGER, STARTER
-
1602016020-1051 CHAMBER, FLOAT, COMPCHAMBER, FLOAT, COMP
-
1603016030-1057 VALVE, FLOATVALVE, FLOAT
-
1603116031-1059 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1612616126-1173 VALVE, VACUUM, 60PSVALVE, VACUUM, 60PS
-
4302843028-1053 DIAPHRAGM, 5.9MM, AIR CUT VALVEDIAPHRAGM, 5.9MM, AIR CUT VALVE
-
9200292002-1761 BOLT, 4X14BOLT, 4X14
-
9200992009-1434 SCREW, DRAIN, M6X1.0SCREW, DRAIN, M6X1.0
-
92009A92009-1551 SCREW, DRAIN, M6X0.75SCREW, DRAIN, M6X0.75
-
9202292022-1003 WASHER, PLAINWASHER, PLAIN
-
9204392043-1285 PIN, FLOATPIN, FLOAT
-
9205592055-1002 O-RING, PILOT ADJUSTO-RING, PILOT ADJUST
-
92055A92055-1245 O-RINGO-RING
-
92055B92055-1290 O-RINGO-RING
-
92055C92055-1291 O-RINGO-RING
-
9206392063-1014 JET, MAIN, #135 (RACING USE ONLY)JET, MAIN, #135 (RACING USE ONLY)
-
92063A92063-1015 JET, MAIN, #138 (RACING USE ONLY)JET, MAIN, #138 (RACING USE ONLY)
-
92063B92063-1069 JET, MAIN, #125 (RACING USE ONLY)JET, MAIN, #125 (RACING USE ONLY)
-
92063C92063-1073 JET, MAIN, #122 (RACING USE ONLY)JET, MAIN, #122 (RACING USE ONLY)
-
92063D92063-1074 JET, MAIN, #128 (RACING USE ONLY)JET, MAIN, #128 (RACING USE ONLY)
-
92063E92063-1075 JET, MAIN, #130 (RACING USE ONLY)JET, MAIN, #130 (RACING USE ONLY)
-
92063F92063-1076 JET, MAIN, #132JET, MAIN, #132
-
9206492064-1118 JET, PILOT, #38JET, PILOT, #38
-
92064A92064-1123 JET, PILOT, #35 (OPT)JET, PILOT, #35 (OPT)
-
220220D0408 SCREW, PAN, CROSSCREW, PAN, CROS
-
223223D0410 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
223A223D0512 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
9206692066-1051 PLUG, PILOT AIR SCREW, 6.9X2PLUG, PILOT AIR SCREW, 6.9X2
-
9208192081-1002 SPRING, PILOT ADJUST SCREWSPRING, PILOT ADJUST SCREW
-
92081A92081-1761 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
92081B92081-1874 SPRING, VACUUM VALVESPRING, VACUUM VALVE
-
92081C92081-1891 SPRING, AIR CUT VALVESPRING, AIR CUT VALVE
