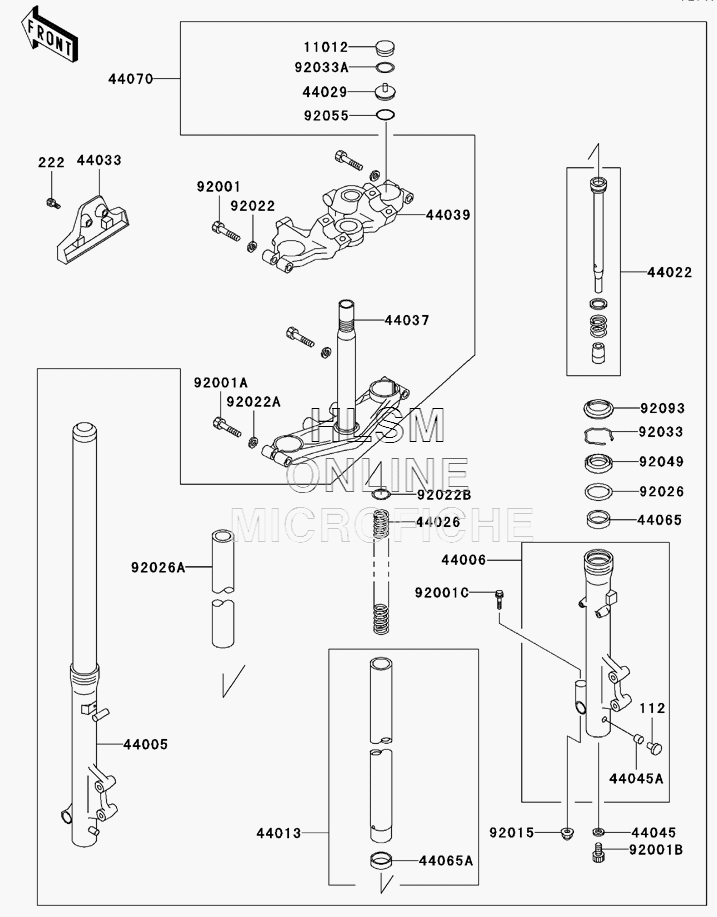

FRONT FORK для Kawasaki Vulcan 750 - 2001 года выпуска
-
№АртикулНазвание
-
112112B0608 BOLT, UPSETBOLT, UPSET
-
222222C0520 SCREW, CSK, RD, CROSSCREW, CSK, RD, CROS
-
1101211012-1696 CAP, FORK TOPCAP, FORK TOP
-
4400544005-1231 PIPE, LEFT FORK OUTERPIPE, LEFT FORK OUTER
-
4400644006-1231 PIPE, RIGHT FORK OUTERPIPE, RIGHT FORK OUTER
-
4401344013-1230 PIPE, FORK INNERPIPE, FORK INNER
-
4402244022-1180 CYLINDER, FORKCYLINDER, FORK
-
4402644026-1301 SPRING, FRONT FORK, K=0.5SPRING, FRONT FORK, K=0.5
-
4402944029-1135 SEAT, FORK SPRINGSEAT, FORK SPRING
-
4403344033-1166 COVER, FORKCOVER, FORK
-
4403744037-1175 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
4403944039-1117 HOLDER, FORK UPPERHOLDER, FORK UPPER
-
4404544045-051 GASKET, FORK CYLINDER BOLTGASKET, FORK CYLINDER BOLT
-
44045A44045-052 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
4406544065-1070 BUSHING, FRONT FORKBUSHING, FRONT FORK
-
44065A44065-1071 BUSHING, FRONT FORK, INNER PIPEBUSHING, FRONT FORK, INNER PIPE
-
4407044070-5032 DAMPER, ASSY., FORKDAMPER, ASSY., FORK
-
9200192001-1063 BOLT, 8X40BOLT, 8X40
-
92001A92001-1454 BOLT, 10X40BOLT, 10X40
-
92001B92001-1464 BOLT, FORK CYLINDERBOLT, FORK CYLINDER
-
92001C92001-1486 BOLT, FLANGED, 8X50BOLT, FLANGED, 8X50
-
9201592015-1055 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9202292022-1703 WASHER, SPRING, 8MMWASHER, SPRING, 8MM
-
92022A92022-1704 WASHER, SPRING, 10MMWASHER, SPRING, 10MM
-
92022B92022-1713 WASHER, SPRING SEATWASHER, SPRING SEAT
-
9202692026-1254 SPACER, FORKSPACER, FORK
-
92026A92026-1255 SPACER, FRONT FORK SPRINGSPACER, FRONT FORK SPRING
-
9203392033-1200 RING, SNAP, FORKRING, SNAP, FORK
-
92033A92033-1201 RING, SNAPRING, SNAP
-
9204992049-1230 SEAL, OIL, FORKSEAL, OIL, FORK
-
9205592055-1309 O-RING, FORK SPRING SEATO-RING, FORK SPRING SEAT
-
9209392093-1197 SEAL, FORKSEAL, FORK
