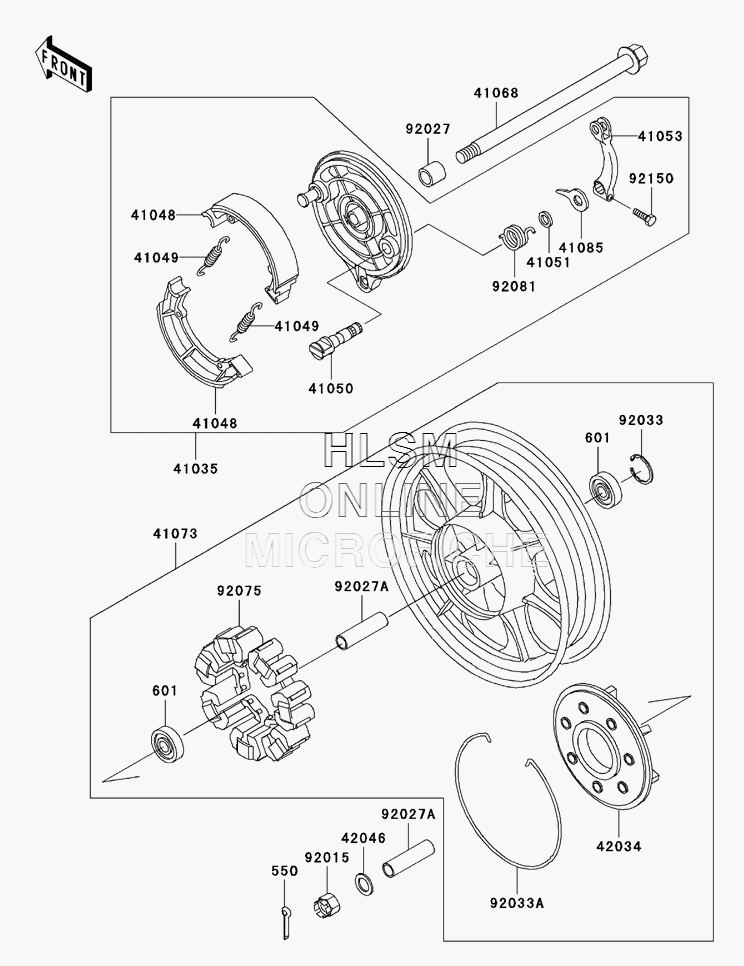

WHEEL - REAR W/ CHAIN для Kawasaki Vulcan 750 - 2001 года выпуска
-
№АртикулНазвание
-
550550D4035 PIN, COTTER, 4.0X35PIN, COTTER, 4.0X35
-
601601B6303UU BEARING, BALL, #6303UUC3BEARING, BALL, #6303UUC3
-
4103541035-1288 PANEL, ASSY., BRAKE, REARPANEL, ASSY., BRAKE, REAR
-
4104841048-1070 SHOE, BRAKESHOE, BRAKE
-
4104941049-012 SPRING, BRAKE SHOESPRING, BRAKE SHOE
-
4105041050-1059 CAM, BRAKECAM, BRAKE
-
4105141051-003 SEAL, BRAKE CAMSEAL, BRAKE CAM
-
4105341053-1063 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
4106841068-1191 AXLE, REARAXLE, REAR
-
4107341073-1590-CX WHEEL, ASSY., REAR (SILVER) NO.1WHEEL, ASSY., REAR (SILVER) NO.1
-
4108541085-1054 INDICATORINDICATOR
-
4203442034-1029 COUPLING, REAR HUBCOUPLING, REAR HUB
-
4204642046-009 WASHER, 17.3X32X3.2WASHER, 17.3X32X3.2
-
9201592015-1951 NUT, CASTLE, 16MMNUT, CASTLE, 16MM
-
9202792027-1486 COLLARCOLLAR
-
92027A92027-1867 COLLAR, 17.2X25X74COLLAR, 17.2X25X74
-
9203392033-1042 RING, SNAP, 47MMRING, SNAP, 47MM
-
92033A92033-1075 RING, SNAP, 194MMRING, SNAP, 194MM
-
9207592075-1372 DAMPER, REAR HUB SHOCKDAMPER, REAR HUB SHOCK
-
9208192081-1816 SPRING, BRAKE CAM LEVER RETURNSPRING, BRAKE CAM LEVER RETURN
-
9215092150-1797 BOLT, 8X27BOLT, 8X27
