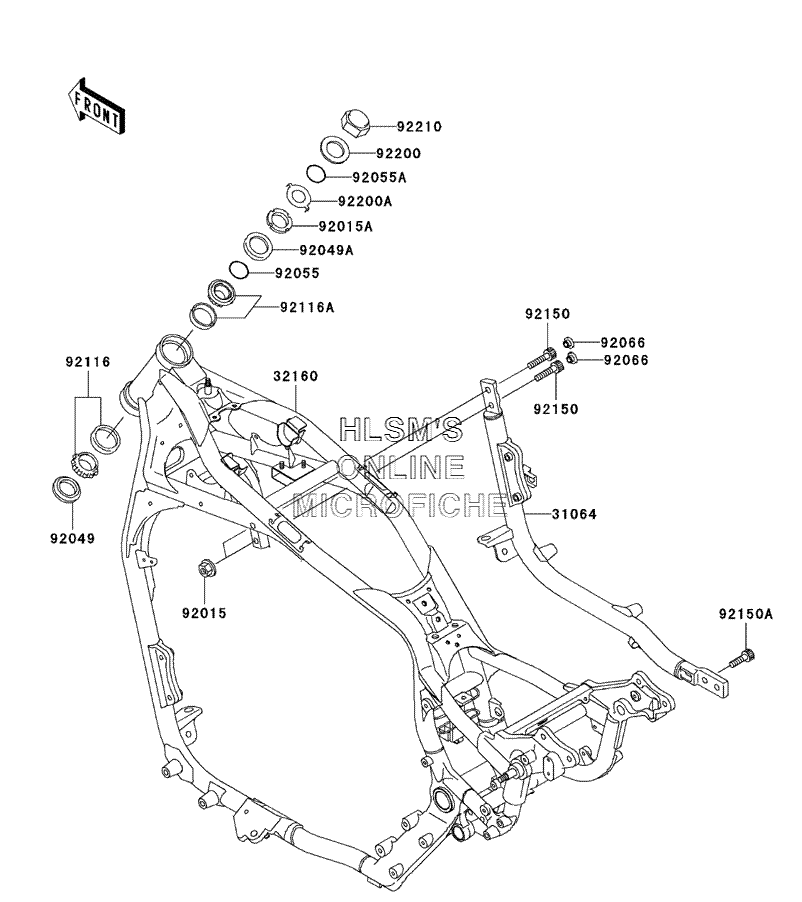

FRAME для Kawasaki Vulcan 1500 Drifter - 2002 года выпуска
-
№АртикулНазвание
-
3106431064-1237 PIPE, COMP, DOWNTUBU (RIGHT)PIPE, COMP, DOWNTUBU (RIGHT)
-
3216032160-1680 FRAME, COMPFRAME, COMP
-
9201592015-1727 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1848 NUT, STEERING STEM, 35MMNUT, STEERING STEM, 35MM
-
9204992049-1383 SEAL, OIL, XMHE 43 55 4JSEAL, OIL, XMHE 43 55 4J
-
92049A92049-1483 SEAL, OIL, MX043N2SEAL, OIL, MX043N2
-
9205592055-1452 O-RING, 34.5X2.0O-RING, 34.5X2.0
-
92055A92055-1459 O-RING, ID=24.5O-RING, ID=24.5
-
9206692066-1285 PLUGPLUG
-
9211692116-1072 BEARING, ROLLER, 32907JR, 2BEARING, ROLLER, 32907JR, 2
-
92116A92116-1074 BEARING, ROLLER, 32907JR, 3BEARING, ROLLER, 32907JR, 3
-
9215092150-1690 BOLT, SOCKET, 10X30BOLT, SOCKET, 10X30
-
92150A92150-1942 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
9220092200-0105 WASHER, 25.5X42X2.3WASHER, 25.5X42X2.3
-
92200A92200-1083 WASHER, CLAW, 25.5X40X2.3WASHER, CLAW, 25.5X40X2.3
-
9221092210-1166 NUT, CAP, 25MMNUT, CAP, 25MM
