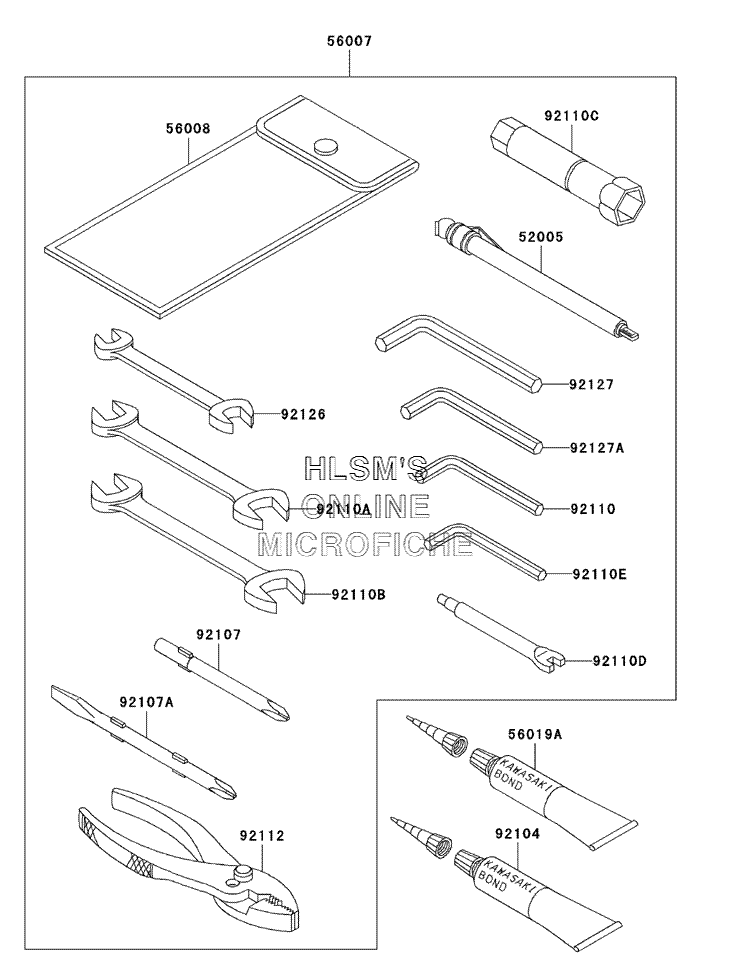

OWNERS TOOLS для Kawasaki Vulcan 1500 Drifter - 2002 года выпуска
-
№АртикулНазвание
-
5200552005-1142 GAUGE, AIR, 350KPA/50PSIGAUGE, AIR, 350KPA/50PSI
-
5600756007-1466 TOOL, KITTOOL, KIT
-
5600856008-006 BAG, TOOLBAG, TOOL
-
56019A56019-120 THREE BOND TB1211, HT/RS (WHITE)THREE BOND TB1211, HT/RS (WHITE)
-
9210492104-1063 GASKET, LIQUID, GRAY TB1216SGASKET, LIQUID, GRAY TB1216S
-
9210792107-1002 TOOL, DRIVER, #3PHILLIPSTOOL, DRIVER, #3PHILLIPS
-
92107A92107-1052 TOOL, DRIVER, #2PHILLIPS AND SLOTTOOL, DRIVER, #2PHILLIPS AND SLOT
-
9211092110-1015 TOOL, WRENCH, ALLEN, 5MMTOOL, WRENCH, ALLEN, 5MM
-
92110A92110-1038 TOOL, WRENCH, OPEN END, 10X12TOOL, WRENCH, OPEN END, 10X12
-
92110B92110-1045 TOOL, WRENCH, OPEN END, 14X17TOOL, WRENCH, OPEN END, 14X17
-
92110C92110-1135 TOOL, WRENCH, BOX, 18MMTOOL, WRENCH, BOX, 18MM
-
92110D92110-1136 TOOL, WRENCH, SPOKETOOL, WRENCH, SPOKE
-
92110E92110-3703 TOOL, WRENCH, ALLEN, 4MMTOOL, WRENCH, ALLEN, 4MM
-
9211292112-003 TOOL, PLIERSTOOL, PLIERS
-
9212692126-001 TOOL, WRENCH, OPEN END, 8X10TOOL, WRENCH, OPEN END, 8X10
-
9212792127-002 TOOL, WRENCH, ALLEN, 8MMTOOL, WRENCH, ALLEN, 8MM
-
92127A92127-003 TOOL, WRENCH, ALLEN, 6MMTOOL, WRENCH, ALLEN, 6MM
