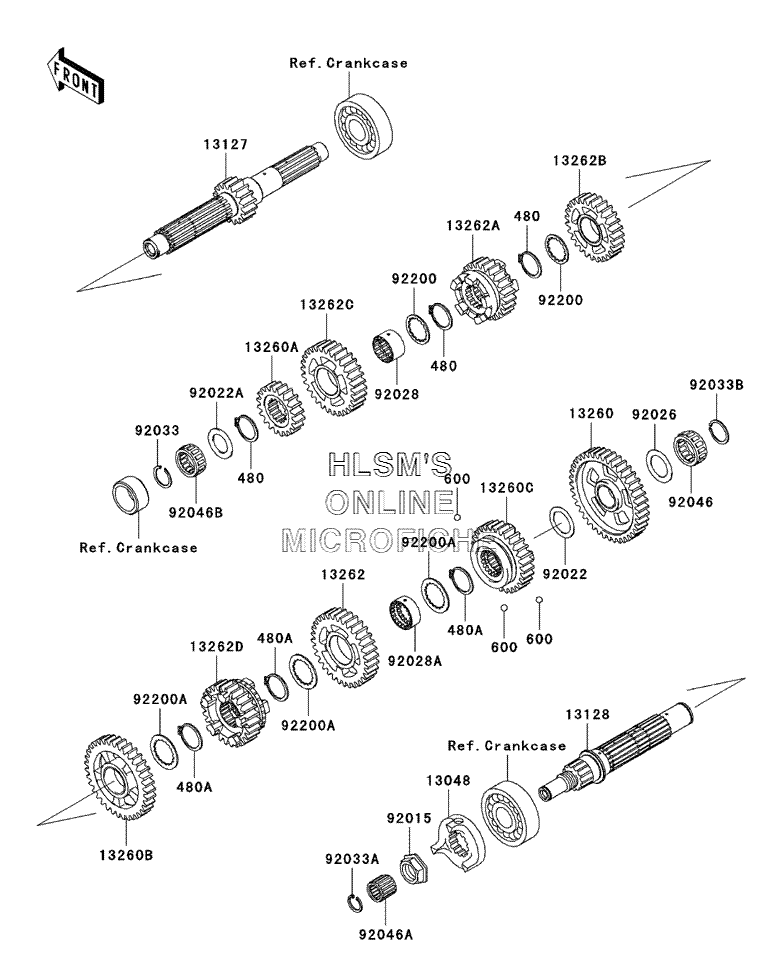

TRANSMISSION для Kawasaki Vulcan 1500 Drifter - 2002 года выпуска
-
№АртикулНазвание
-
480480J2800 CIRCLIP, TYPE, C, 28MMCIRCLIP, TYPE, C, 28MM
-
480A480J2900 CIRCLIPCIRCLIP
-
600600A0500 BALL, STEEL, 5/32"BALL, STEEL, 5/32"
-
1304813048-1086 CAM, DAMPERCAM, DAMPER
-
1312713127-1288 SHAFT, TRANSMISSION INPUTSHAFT, TRANSMISSION INPUT
-
1312813128-0002 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1326013260-1910 GEAR, OUTPUT LOW (40 TEETH)GEAR, OUTPUT LOW (40 TEETH)
-
13260A13260-1914 GEAR, INPUT 2ND (22 TEETH)GEAR, INPUT 2ND (22 TEETH)
-
13260B13260-1918 GEAR, OUTPUT 2ND (35 TEETH)GEAR, OUTPUT 2ND (35 TEETH)
-
13260C13260-1920 GEAR, OUTPUT 4TH (28 TEETH)GEAR, OUTPUT 4TH (28 TEETH)
-
1326213262-0093 GEAR, OUTPUT 3RD (31 TEETH)GEAR, OUTPUT 3RD (31 TEETH)
-
13262A13262-1068 GEAR, INPUT 3RD (26 TEETH)GEAR, INPUT 3RD (26 TEETH)
-
13262B13262-1069 GEAR, INPUT 4TH (29 TEETH)GEAR, INPUT 4TH (29 TEETH)
-
13262C13262-1070 GEAR, INPUT 5TH (32 TEETH)GEAR, INPUT 5TH (32 TEETH)
-
13262D13262-1072 GEAR, OUTPUT 5TH (25 TEETH)GEAR, OUTPUT 5TH (25 TEETH)
-
9201592015-1610 NUT, 20MMNUT, 20MM
-
9202292022-1855 WASHER, 25.5X36X1.0WASHER, 25.5X36X1.0
-
92022A92022-212 WASHER, 22.3X35X1.6WASHER, 22.3X35X1.6
-
9202692026-1536 SPACER, 25.5X38X1.0SPACER, 25.5X38X1.0
-
9202892028-1990 BUSHING, INPUT TOP GEARBUSHING, INPUT TOP GEAR
-
92028A92028-1991 BUSHING, OUTPUT 3RD GEARBUSHING, OUTPUT 3RD GEAR
-
9203392033-025 RING, SNAP, 20X25.5X1.2RING, SNAP, 20X25.5X1.2
-
92033A92033-032 RING, SNAPRING, SNAP
-
92033B92033-1172 RING, SNAP, 25MMRING, SNAP, 25MM
-
9204692046-1259 BEARING, NEEDLE, TK253515BEARING, NEEDLE, TK253515
-
92046A92046-1260 BEARING, NEEDLE, FWF, 162222BEARING, NEEDLE, FWF, 162222
-
92046B92046-1293 BEARING, NEEDLE, BN502250BEARING, NEEDLE, BN502250
-
9220092200-1240 WASHER, T=1.5WASHER, T=1.5
-
92200A92200-1381 WASHER, 30.3X40X1.5WASHER, 30.3X40X1.5
