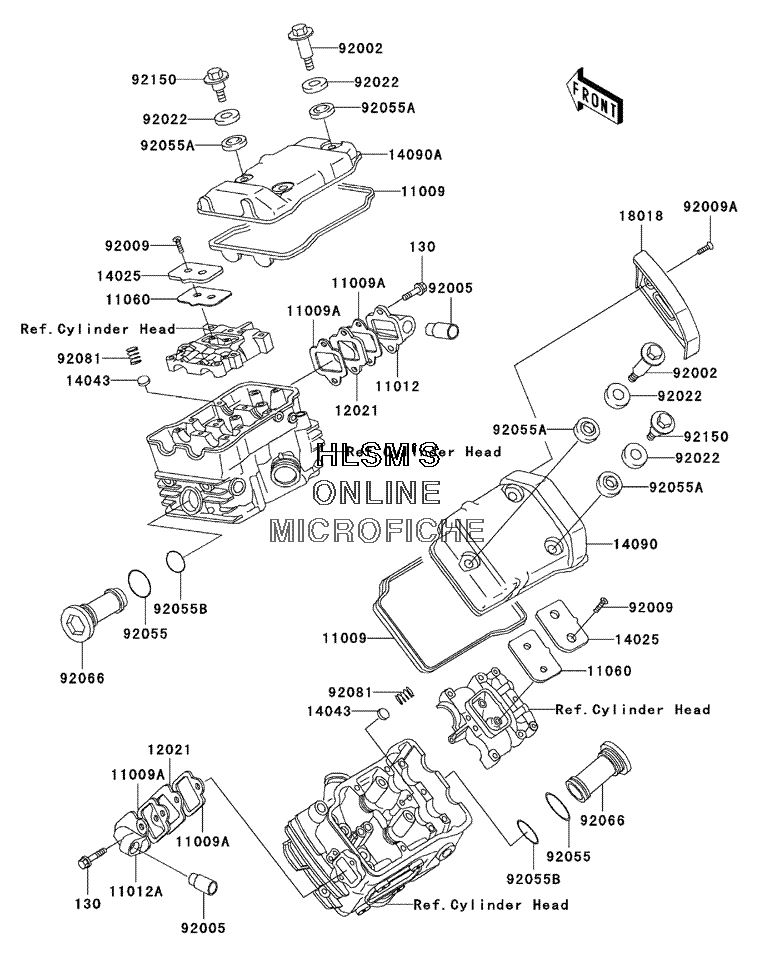

CYLINDER HEAD COVER для Kawasaki Vulcan 750 - 2002 года выпуска
-
№АртикулНазвание
-
130130N0620 BOLT, FLANGEDBOLT, FLANGED
-
1100911009-1508 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
11009A11009-1879 GASKET, REED VALVEGASKET, REED VALVE
-
1101211012-1494 CAP, REED VALVE, FRONTCAP, REED VALVE, FRONT
-
11012A11012-1495 CAP, REED VALVE, REARCAP, REED VALVE, REAR
-
1106011060-1083 GASKET, SEPARATER COVERGASKET, SEPARATER COVER
-
1202112021-1011 VALVE, ASSY., REEDVALVE, ASSY., REED
-
1402514025-1738 COVER, SEPARATERCOVER, SEPARATER
-
1404314043-1056 FILTER, OILFILTER, OIL
-
1409014090-1400 COVER, CYLINDER HEAD, REARCOVER, CYLINDER HEAD, REAR
-
14090A14090-1401 COVER, CYLINDER HEAD, FRONTCOVER, CYLINDER HEAD, FRONT
-
1801818018-1063 PLATE, HEAT GUARDPLATE, HEAT GUARD
-
9200292002-1421 BOLTBOLT
-
9200592005-1006 FITTING, REED VALVEFITTING, REED VALVE
-
9200992009-1363 SCREW, 6X10SCREW, 6X10
-
92009A92009-3703 SCREW, 6X16SCREW, 6X16
-
9202292022-1637 WASHER, HEAD COVER BOLTWASHER, HEAD COVER BOLT
-
9205592055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
92055A92055-1225 O-RING, HEAD COVER BOLTO-RING, HEAD COVER BOLT
-
92055B92055-1272 O-RING, 27.7X1.9O-RING, 27.7X1.9
-
9206692066-1224 PLUG, CYLINDER HEADPLUG, CYLINDER HEAD
-
9208192081-1776 SPO-RINGIL FILTERSPO-RINGIL FILTER
-
9215092150-1447 BOLT, HEAD COVERBOLT, HEAD COVER
