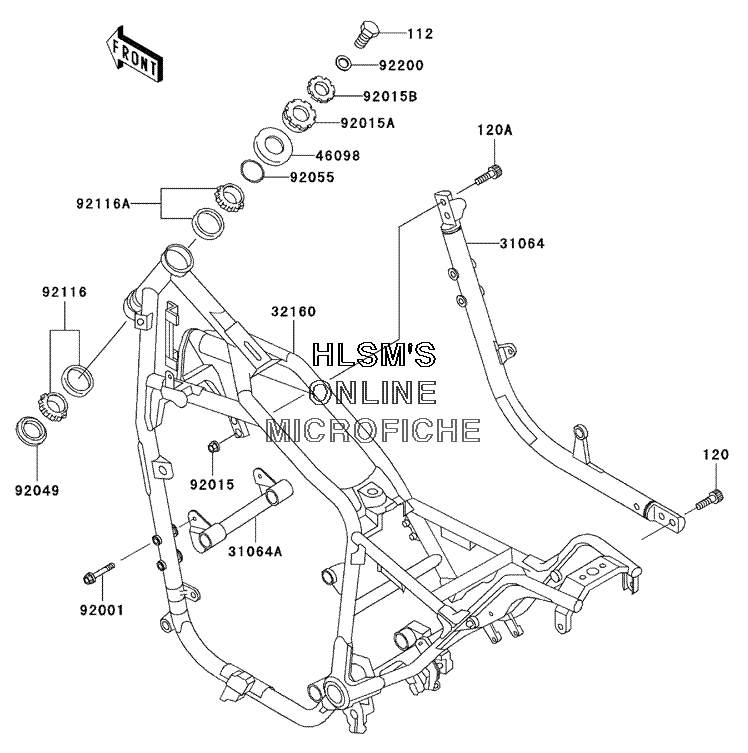

FRAME для Kawasaki Vulcan 750 - 2002 года выпуска
-
№АртикулНазвание
-
112112G1425 BOLT, UPSETBOLT, UPSET
-
120120S1020 BOLT, SOCKETBOLT, SOCKET
-
120A120S1030 BOLT, SOCKET, 10X30BOLT, SOCKET, 10X30
-
3106431064-1058 PIPE, COMP, SUB FRAMEPIPE, COMP, SUB FRAME
-
31064A31064-1059 PIPE, COMPPIPE, COMP
-
3216032160-1314 FRAME, COMPFRAME, COMP
-
4609846098-017 CAP, STEERING STEMCAP, STEERING STEM
-
9200192001-1615 BOLT, FLANGED, 8X60 (BLACK)BOLT, FLANGED, 8X60 (BLACK)
-
9201592015-1021 NUT, 10MMNUT, 10MM
-
92015A92015-1377 NUT, 25MM, T=10NUT, 25MM, T=10
-
92015B92015-1378 NUT, 25MM, T=6NUT, 25MM, T=6
-
9204992049-1162 SEAL, OIL, XMHE36X52X4JSEAL, OIL, XMHE36X52X4J
-
9205592055-1459 O-RING, ID=24.5O-RING, ID=24.5
-
9211692116-1009 BEARING, ROLLER, HR320/28XJBEARING, ROLLER, HR320/28XJ
-
92116A92116-1058 BEARING, ROLLER, HI, CAP32005JRBEARING, ROLLER, HI, CAP32005JR
-
9220092200-1140 WASHERWASHER
