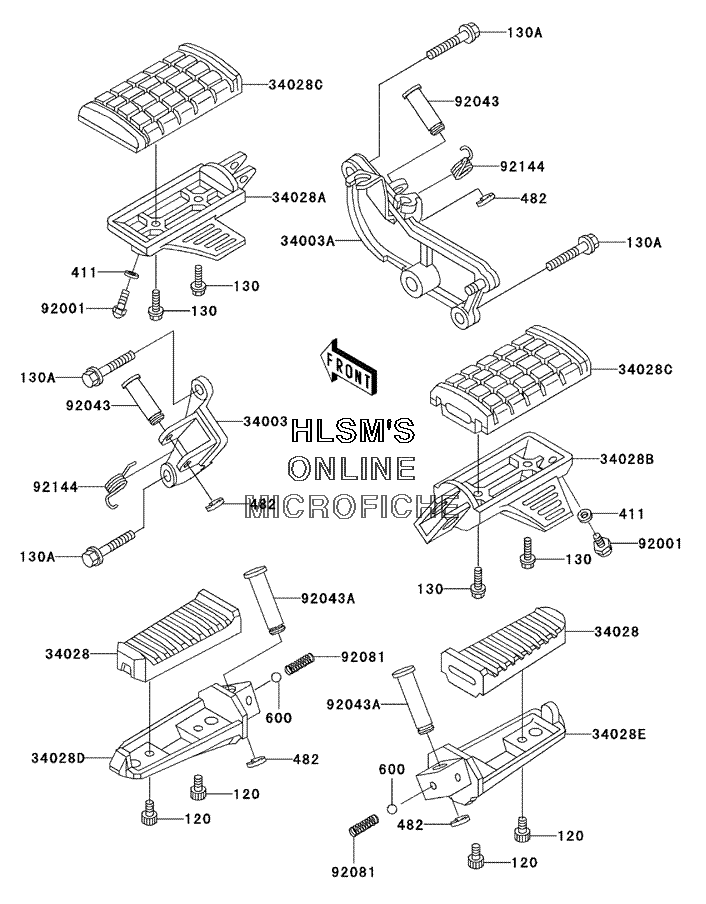

FOOTRESTS для Kawasaki Vulcan 750 - 2002 года выпуска
-
№АртикулНазвание
-
120120Z0514 BOLT, SOCKETBOLT, SOCKET
-
130130D0512 BOLT, FLANGED, 5X12BOLT, FLANGED, 5X12
-
130A130J1030 BOLT, FLANGED, 10X30BOLT, FLANGED, 10X30
-
411411B0600 WASHER, PLAIN, 6MMWASHER, PLAIN, 6MM
-
482482L0100 CIRCLIP, TYPE, E, 10MMCIRCLIP, TYPE, E, 10MM
-
600600A0800 BALL, STEEL, 1/4"BALL, STEEL, 1/4"
-
3400334003-1225 HOLDER, STEP, FRONT (LEFT)HOLDER, STEP, FRONT (LEFT)
-
34003A34003-1226 HOLDER, STEP, FRONT (RIGHT)HOLDER, STEP, FRONT (RIGHT)
-
3402834028-1060 STEP, REAR, RUBBERSTEP, REAR, RUBBER
-
34028A34028-1147 STEP, FRONT (LEFT)STEP, FRONT (LEFT)
-
34028B34028-1148 STEP, FRONT (RIGHT)STEP, FRONT (RIGHT)
-
34028C34028-1149 STEP, FRONT, RUBBERSTEP, FRONT, RUBBER
-
34028D34028-1175 STEP, REAR (LEFT)STEP, REAR (LEFT)
-
34028E34028-1176 STEP, REAR (RIGHT)STEP, REAR (RIGHT)
-
9200192001-1905 BOLT, BANK SENSORBOLT, BANK SENSOR
-
9204392043-1144 PIN, 12X37PIN, 12X37
-
92043A92043-1145 PIN, 12X42.5PIN, 12X42.5
-
9208192081-1588 SPRING, COIL, STEP, REARSPRING, COIL, STEP, REAR
-
9214492144-1568 SPRING, STEP RETURNSPRING, STEP RETURN
