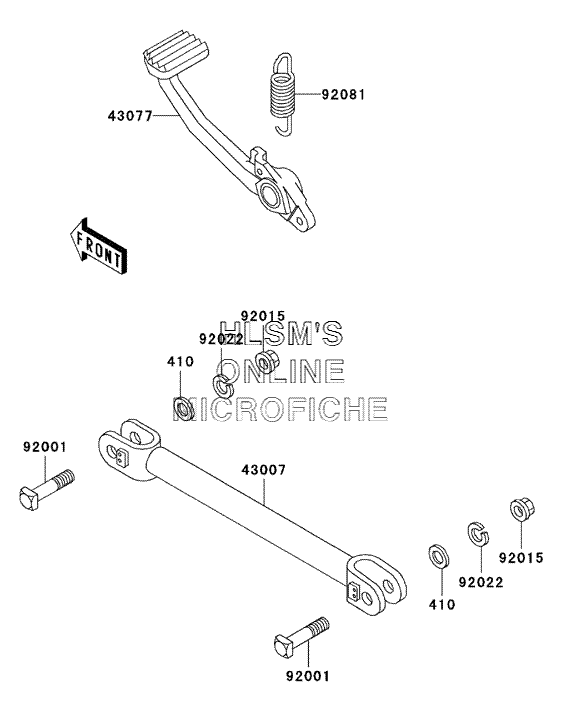

BRAKE PEDAL W/ TORQUE LINK для Kawasaki Concours - 2003 года выпуска
-
№АртикулНазвание
-
410410B1000 WASHER, PLAIN, SMALL, 10MMWASHER, PLAIN, SMALL, 10MM
-
4300743007-1130 ROD, TORQUEROD, TORQUE
-
4307743077-1062 LEVER, ASSY, BRAKE, PEDALLEVER, ASSY, BRAKE, PEDAL
-
9200192001-1208 BOLT, 10X45BOLT, 10X45
-
9201592015-1429 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9202292022-1540 WASHER, SPRING, 10MMWASHER, SPRING, 10MM
-
9208192081-1845 SPRING, BRAKE PEDALSPRING, BRAKE PEDAL
