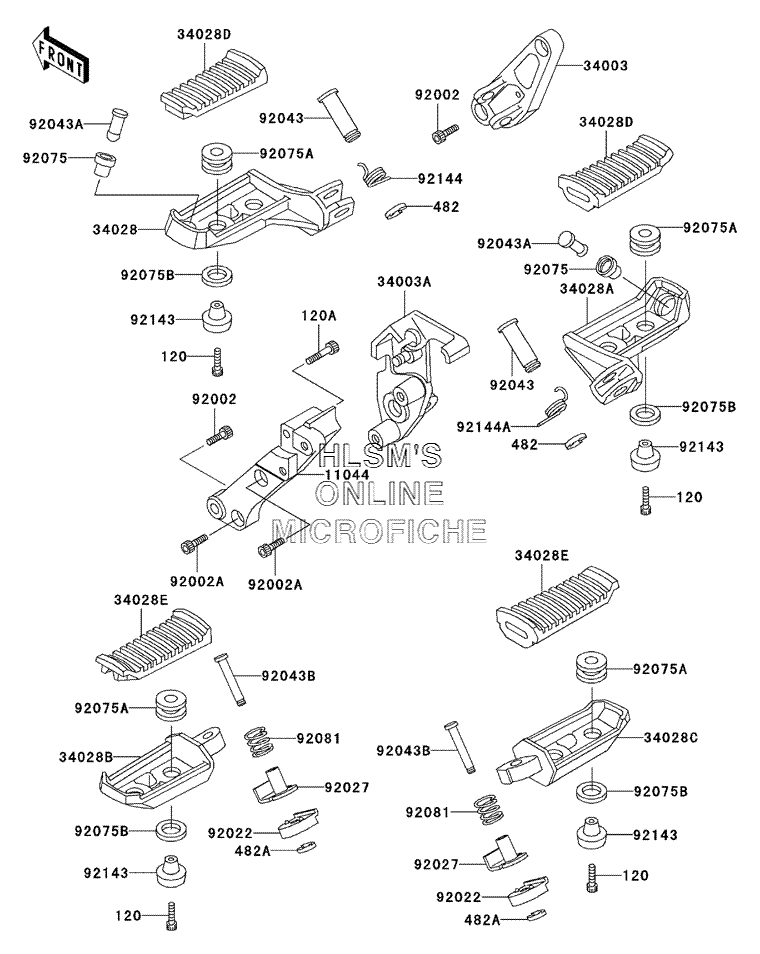

FOOTRESTS для Kawasaki Concours - 2003 года выпуска
-
№АртикулНазвание
-
120120P0520 BOLT, SOCKETBOLT, SOCKET
-
120A120P0840 BOLT, SOCKET, 8X40BOLT, SOCKET, 8X40
-
482482L0100 CIRCLIP, TYPE, E, 10MMCIRCLIP, TYPE, E, 10MM
-
482A482L5000 CIRCLIP, TYPE, E, 5MMCIRCLIP, TYPE, E, 5MM
-
1104411044-1911 BRACKET, FRONT STEP (RIGHT)BRACKET, FRONT STEP (RIGHT)
-
3400334003-1259 HOLDER, STEP, FRONT (LEFT)HOLDER, STEP, FRONT (LEFT)
-
34003A34003-1260 HOLDER, STEP, FRONT (RIGHT)HOLDER, STEP, FRONT (RIGHT)
-
3402834028-1198 STEP, FRONT (LEFT)STEP, FRONT (LEFT)
-
34028A34028-1199 STEP, FRONT (RIGHT)STEP, FRONT (RIGHT)
-
34028B34028-1200 STEP, REAR (LEFT)STEP, REAR (LEFT)
-
34028C34028-1201 STEP, REAR (RIGHT)STEP, REAR (RIGHT)
-
34028D34028-1206 STEP, FRONT, RUBBERSTEP, FRONT, RUBBER
-
34028E34028-1207 STEP, REAR, RUBBERSTEP, REAR, RUBBER
-
9200292002-1178 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
92002A92002-1442 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9202292022-1507 WASHER, STEP, REARWASHER, STEP, REAR
-
9202792027-1732 COLLAR, STEPCOLLAR, STEP
-
9204392043-1145 PIN, 12X42.5PIN, 12X42.5
-
92043A92043-1219 PIN, BANK SENSORPIN, BANK SENSOR
-
92043B92043-1238 PIN, 6X38.5PIN, 6X38.5
-
9207592075-1597 DAMPER, BANK SENSORDAMPER, BANK SENSOR
-
92075A92075-174 DAMPER, MALEDAMPER, MALE
-
92075B92075-175 DAMPER, FEMALEDAMPER, FEMALE
-
9208192081-1612 SPRING, STEP, REARSPRING, STEP, REAR
-
9214392143-1005 COLLAR, STEPCOLLAR, STEP
-
9214492144-1567 SPRING, STEP RETURN (LEFT)SPRING, STEP RETURN (LEFT)
-
92144A92144-1568 SPRING, STEP RETURNSPRING, STEP RETURN
