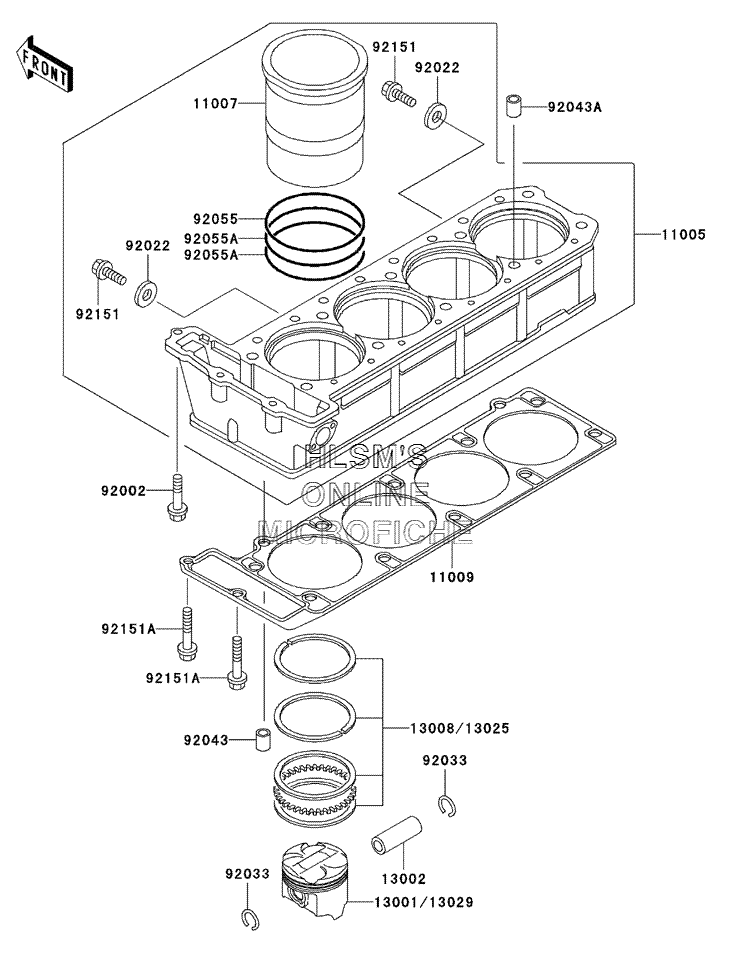

CYLINDER/PISTON(S) для Kawasaki Concours - 2003 года выпуска
-
№АртикулНазвание
-
1100511005-1430 CYLINDER, ENGINECYLINDER, ENGINE
-
1100711007-1076 LINER, CYLINDERLINER, CYLINDER
-
1100911009-1847 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-1197 PISTON, ENGINE (STD)PISTON, ENGINE (STD)
-
1300213002-1058 PIN, PISTONPIN, PISTON
-
1300813008-1066 RING, SET, PISTON (STD)RING, SET, PISTON (STD)
-
1302513025-1065 RING, SET, PISTON (O/S 0.50)RING, SET, PISTON (O/S 0.50)
-
1302913029-1132 PISTON, ENGINE (O/S 0.50)PISTON, ENGINE (O/S 0.50)
-
9200292002-1138 BOLT, 6X30BOLT, 6X30
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203392033-1099 RING, SNAP, 20.5X1.2RING, SNAP, 20.5X1.2
-
9204392043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
92043A92043-1279 PIN, 11.5X14X14PIN, 11.5X14X14
-
9205592055-1229 O-RING, 78MMO-RING, 78MM
-
92055A92055-1247 O-RINGO-RING
-
9215192151-1344 BOLT, 6X10BOLT, 6X10
-
92151A92151-1904 BOLT, 6X38BOLT, 6X38
