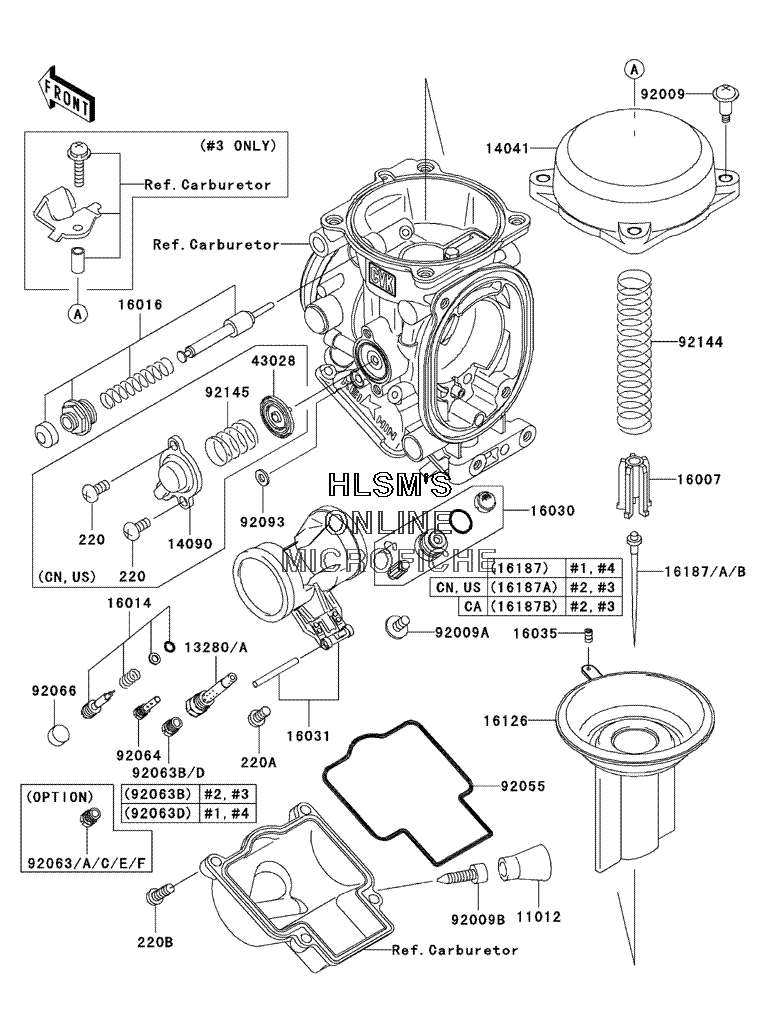

CARBURETOR PARTS для Kawasaki NINJA ZX-9R - 2003 года выпуска
-
№АртикулНазвание
-
1101211012-1675 CAP, DRAIN SCREWCAP, DRAIN SCREW
-
1328013280-1276 HOLDER, JET NEEDLE (EXCEPT CALIF.)HOLDER, JET NEEDLE (EXCEPT CALIF.)
-
13280A13280-1277 HOLDER, JET NEEDLE (CALIF. ONLY)HOLDER, JET NEEDLE (CALIF. ONLY)
-
1404114041-1100 COVER, COMP, MIXINGCOVER, COMP, MIXING
-
1409014090-1959 COVER, AIR CUT VALVE (EXCEPT CALIF.)COVER, AIR CUT VALVE (EXCEPT CALIF.)
-
1600716007-1117 SEAT, SPRING, VALVESEAT, SPRING, VALVE
-
1601416014-1085 SCREW, PILOT AIR (EXCEPT CALIF.)SCREW, PILOT AIR (EXCEPT CALIF.)
-
1601616016-1090 PLUNGER, STARTERPLUNGER, STARTER
-
1603016030-1077 VALVE, FLOATVALVE, FLOAT
-
1603116031-1080 FLOATFLOAT
-
1603516035-1055 JET, AIR, LEAKJET, AIR, LEAK
-
1612616126-1359 VALVE, VACUUMVALVE, VACUUM
-
1618716187-1230 NEEDLE, JET, N6NFNEEDLE, JET, N6NF
-
16187A16187-1231 NEEDLE, JET, N74W (EXCEPT CALIF.)NEEDLE, JET, N74W (EXCEPT CALIF.)
-
16187B16187-1237 NEEDLE, JET, N6NG (CALIF. ONLY)NEEDLE, JET, N6NG (CALIF. ONLY)
-
4302843028-1085 DIAPHRAGM, AIR CUT VALVE (EXCEPT CALIF.)DIAPHRAGM, AIR CUT VALVE (EXCEPT CALIF.)
-
9200992009-1549 SCREW, 4X4.4SCREW, 4X4.4
-
92009A92009-1550 SCREW, 4X8SCREW, 4X8
-
92009B92009-1551 SCREW, DRAIN, M6X0.75SCREW, DRAIN, M6X0.75
-
9205592055-1426 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
9206392063-1332 JET, MAIN, #155 (OPT)JET, MAIN, #155 (OPT)
-
92063A92063-1344 JET, MAIN, #158 (OPT)JET, MAIN, #158 (OPT)
-
92063B92063-1345 JET, MAIN, #160JET, MAIN, #160
-
92063C92063-1346 JET, MAIN, #162 (OPT)JET, MAIN, #162 (OPT)
-
92063D92063-1347 JET, MAIN, #165JET, MAIN, #165
-
92063E92063-1386 JET, MAIN, #170 (OPT)JET, MAIN, #170 (OPT)
-
92063F92063-1480 JET, MAIN, #168 (OPT)JET, MAIN, #168 (OPT)
-
9206492064-1119 JET, PILOT, #38JET, PILOT, #38
-
9206692066-1051 PLUG, PILOT AIR SCREW, 6.9X2PLUG, PILOT AIR SCREW, 6.9X2
-
9209392093-1046 SEAL, "U"RING (EXCEPT CALIF.)SEAL, "U"RING (EXCEPT CALIF.)
-
220220B0408 SCREW, PAN, CROS (EXCEPT CALIF.)SCREW, PAN, CROS (EXCEPT CALIF.)
-
220A220D0408 SCREW, PAN, CROSSCREW, PAN, CROS
-
220B220D0414 SCREW, PAN, CROSSCREW, PAN, CROS
-
9214492144-1962 SPRING, VACUUM VALVESPRING, VACUUM VALVE
-
9214592145-1149 SPRING, AIR CUT VALVE (EXCEPT CALIF.)SPRING, AIR CUT VALVE (EXCEPT CALIF.)
