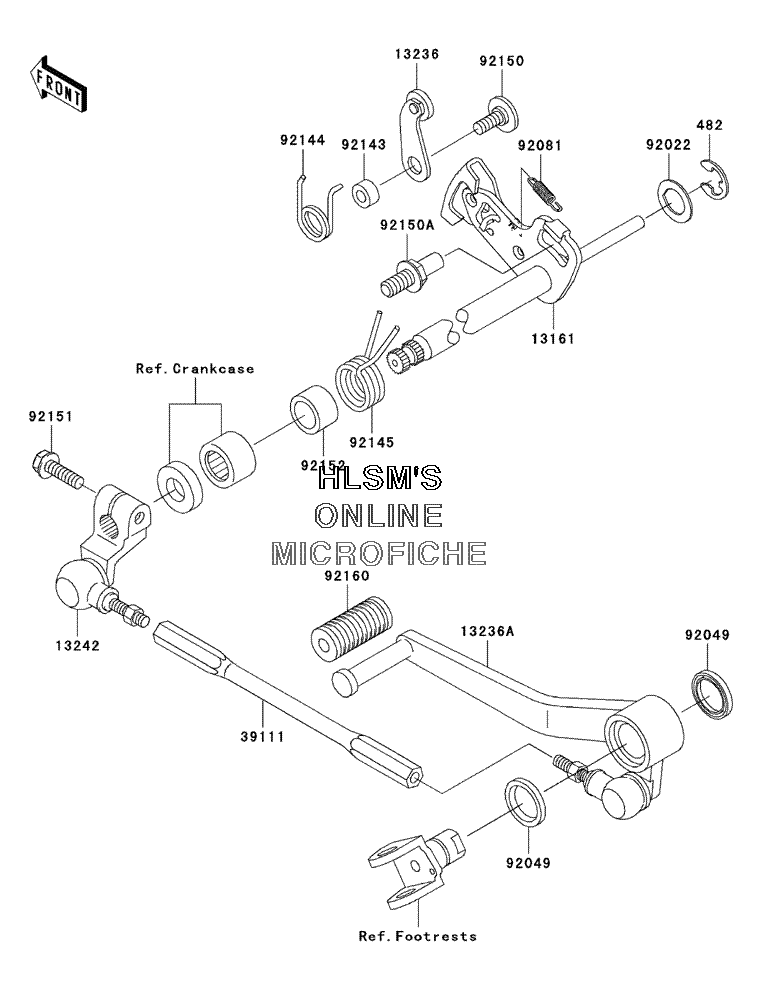

GEAR CHANGE MECHANISM для Kawasaki NINJA ZX-9R - 2003 года выпуска
-
№АртикулНазвание
-
482482J0200 CIRCLIP, TYPE, E, 12MMCIRCLIP, TYPE, E, 12MM
-
1316113161-1282 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
1323613236-1243 LEVER, COMPLEVER, COMP
-
13236A13236-1317 LEVER, COMP, CHANGE PEDALLEVER, COMP, CHANGE PEDAL
-
1324213242-1348 LEVER, ASSY., CHANGE, BOSSLEVER, ASSY., CHANGE, BOSS
-
3911139111-1157 ROD, TIEROD, TIE
-
9202292022-1628 WASHER, CHANGE SHAFTWASHER, CHANGE SHAFT
-
9204992049-1492 SEAL, OILSEAL, OIL
-
9208192081-1708 SPRING, PAWL RETURNSPRING, PAWL RETURN
-
9214392143-1595 COLLARCOLLAR
-
9214492144-1856 SPRINGSPRING
-
9214592145-1122 SPRINGSPRING
-
9215092150-1737 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
92150A92150-1869 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
9215192151-1226 BOLT, 6X20BOLT, 6X20
-
9215292152-1383 COLLARCOLLAR
-
9216092160-1036 DAMPER, CHANGE PEDALDAMPER, CHANGE PEDAL
