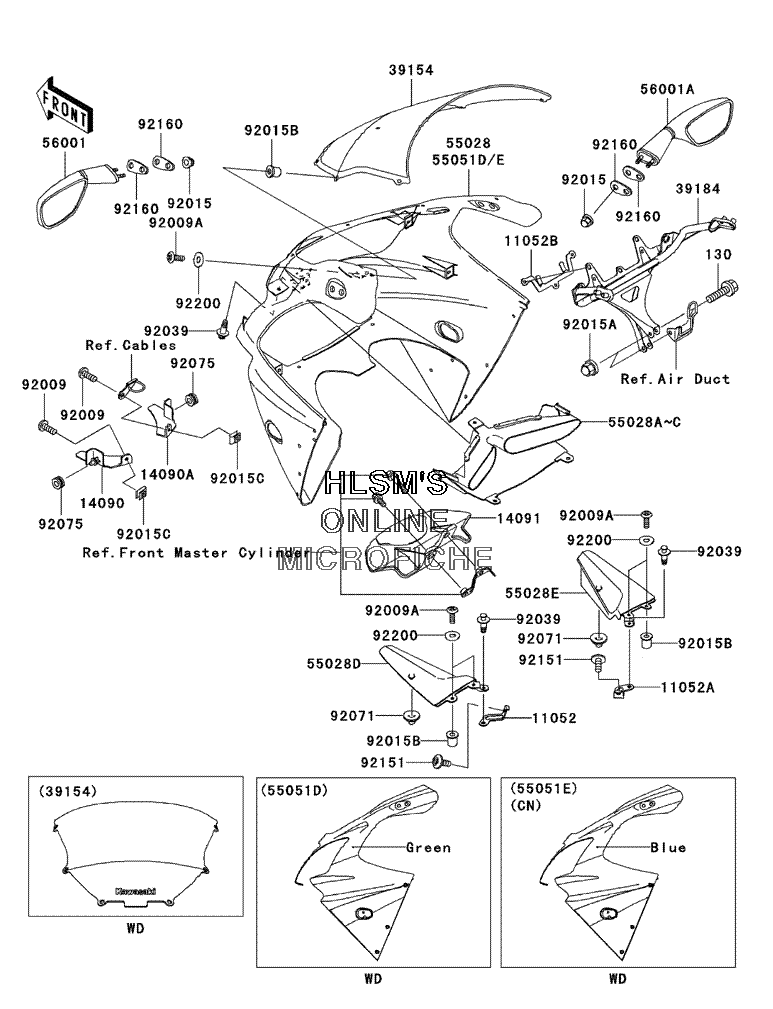

COWLING для Kawasaki NINJA ZX-9R - 2003 года выпуска
-
№АртикулНазвание
-
130130J0830 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
1105211052-1644 BRACKET, UPPER COWLING (LEFT)BRACKET, UPPER COWLING (LEFT)
-
11052A11052-1645 BRACKET, UPPER COWLING (RIGHT)BRACKET, UPPER COWLING (RIGHT)
-
11052B11052-1822 BRACKET, HEAD LAMP RELAYBRACKET, HEAD LAMP RELAY
-
1409014090-1950 COVER, RADIATOR (LEFT)COVER, RADIATOR (LEFT)
-
14090A14090-1951 COVER, RADIATOR (RIGHT)COVER, RADIATOR (RIGHT)
-
1409114091-1271 COVER, UNDER BRACKETCOVER, UNDER BRACKET
-
3915439154-5016 WINDSHIELDWINDSHIELD
-
3918439184-1088 BRACKET, ASSY., UPPER COWLINGBRACKET, ASSY., UPPER COWLING
-
5502855028-1386-474 COWLING, UPPER (M.S.SILVER)COWLING, UPPER (M.S.SILVER)
-
55028A55028-1387-3L COWLING, DUCT (M.F.(C.GRAY))COWLING, DUCT (M.F.(C.GRAY))
-
55028B55028-1387-469 COWLING, DUCT (M.C.BLUE) (CANADA ONLY)COWLING, DUCT (M.C.BLUE) (CANADA ONLY)
-
55028C55028-1387-7F COWLING, DUCT (L.GREEN)COWLING, DUCT (L.GREEN)
-
55028D55028-1388 COWLING, INNER (LEFT)COWLING, INNER (LEFT)
-
55028E55028-1389 COWLING, INNER (RIGHT)COWLING, INNER (RIGHT)
-
55051D55051-5324-7F COWLING, ASSY., UPPER (L.GREEN)COWLING, ASSY., UPPER (L.GREEN)
-
55051E55051-5345-469 COWLING, ASSY., UPPER (M.C.BLUE) (CANADA ONLY)COWLING, ASSY., UPPER (M.C.BLUE) (CANADA ONLY)
-
5600156001-1483 MIRROR, ASSY. (LEFT)MIRROR, ASSY. (LEFT)
-
56001A56001-1484 MIRROR, ASSY. (RIGHT)MIRROR, ASSY. (RIGHT)
-
9200992009-1436 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1909 SCREW, 5X16SCREW, 5X16
-
9201592015-1170 NUT, CAP, 6MM (BLACK)NUT, CAP, 6MM (BLACK)
-
92015A92015-1174 NUT, CAP, 8MM (BLACK)NUT, CAP, 8MM (BLACK)
-
92015B92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
92015C92015-1758 NUT, 6MMNUT, 6MM
-
9203992039-1227 RIVETRIVET
-
9207192071-1222 GROMMETGROMMET
-
9207592075-1912 DAMPERDAMPER
-
9215192151-1654 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9216092160-1089 DAMPER, MIRRORDAMPER, MIRROR
-
9220092200-1480 WASHER, NYLON, 5.3X11.5X0.5WASHER, NYLON, 5.3X11.5X0.5
