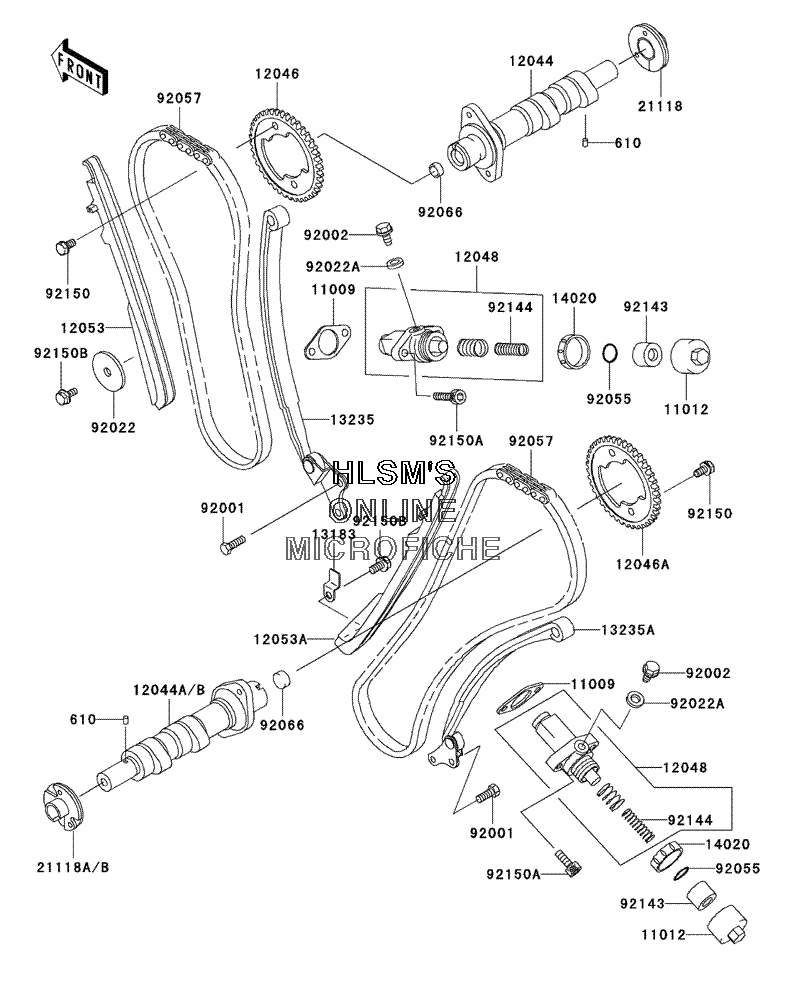

CAMSHAFT(S) W/ TENSIONER для Kawasaki Vulcan 1500 Drifter - 2003 года выпуска
-
№АртикулНазвание
-
610610A0406 ROLLER, 4X6ROLLER, 4X6
-
1100911009-1858 GASKET, TENSIONERGASKET, TENSIONER
-
1101211012-1959 CAP, TENSIONERCAP, TENSIONER
-
1204412044-1200 CAMSHAFT, VALVE, FRONTCAMSHAFT, VALVE, FRONT
-
12044B12044-1494 CAMSHAFT, VALVE, REARCAMSHAFT, VALVE, REAR
-
1204612046-1175 SPROCKET, CAMSHAFT, FRONT (46 TEETH)SPROCKET, CAMSHAFT, FRONT (46 TEETH)
-
12046A12046-1176 SPROCKET, CAMSHAFT, REAR (46 TEETH)SPROCKET, CAMSHAFT, REAR (46 TEETH)
-
1204812048-1160 TENSIONER, ASSY.TENSIONER, ASSY.
-
1205312053-1219 GUIDE, CHAIN, FRONT, TENSIONERGUIDE, CHAIN, FRONT, TENSIONER
-
12053A12053-1221 GUIDE, CHAIN, REAR, TENSIONERGUIDE, CHAIN, REAR, TENSIONER
-
1318313183-1096 PLATEPLATE
-
1323513235-1070 GUIDE, COMP, FRONTGUIDE, COMP, FRONT
-
13235A13235-1071 GUIDE, COMP, REARGUIDE, COMP, REAR
-
1402014020-1054 RETAINER, TENSIONERRETAINER, TENSIONER
-
2111821118-1061 DECOMPRESSOR, FRONTDECOMPRESSOR, FRONT
-
21118B21118-1085 DECOMPRESSOR, REARDECOMPRESSOR, REAR
-
9200192001-1457 BOLT, 6X16BOLT, 6X16
-
9200292002-1356 BOLT, 6MMBOLT, 6MM
-
9202292022-227 WASHER, 7X27X1.6WASHER, 7X27X1.6
-
92022A92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9205592055-1555 O-RING, TENSIONERO-RING, TENSIONER
-
9205792057-1422 CHAIN, CAM, 92RH2010CHAIN, CAM, 92RH2010
-
9206692066-1198 PLUGPLUG
-
9214392143-1836 COLLAR, TENSIONERCOLLAR, TENSIONER
-
9214492144-1921 SPRING, TENSIONERSPRING, TENSIONER
-
9215092150-1725 BOLT, FLANGED, 6X11BOLT, FLANGED, 6X11
-
92150A92150-1795 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
92150B92150-1868 BOLT, 6X12BOLT, 6X12
