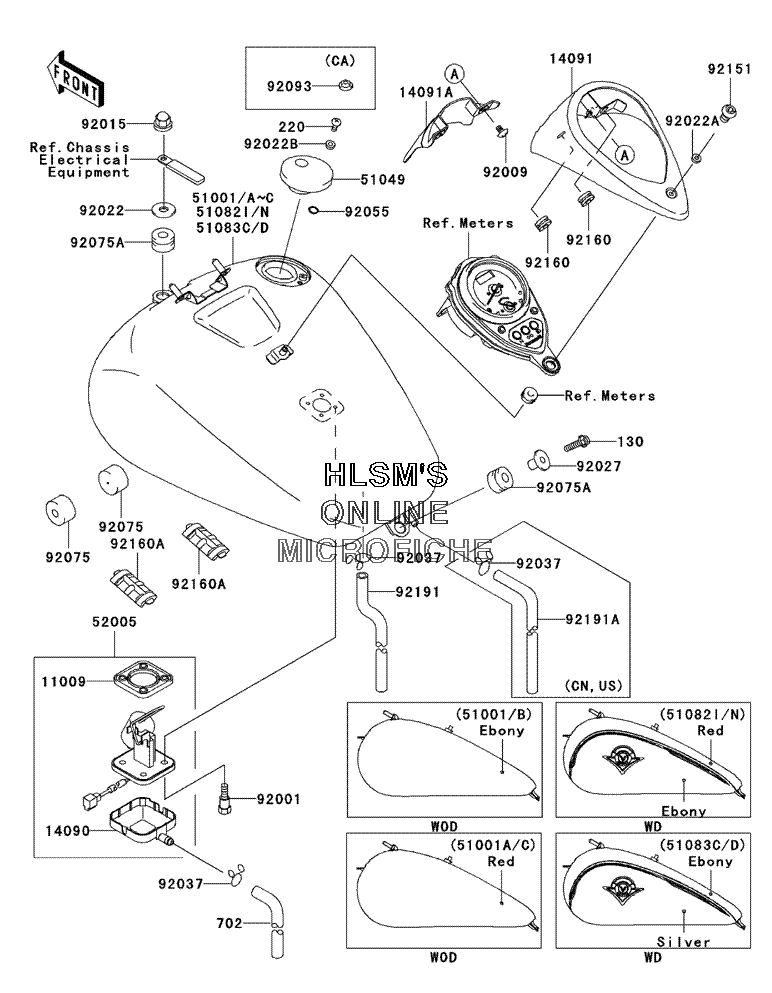

FUEL TANK для Kawasaki Vulcan 1500 Drifter - 2003 года выпуска
-
№АртикулНазвание
-
1100911009-1656 GASKET, FUEL GAUGEGASKET, FUEL GAUGE
-
1409014090-1624 COVER, FUEL GAUGECOVER, FUEL GAUGE
-
1409114091-1208 COVER, METERCOVER, METER
-
14091A14091-1301 COVER, METER, FRONTCOVER, METER, FRONT
-
51001A51001-1570-468 TANK, COMP, FUEL (M.R.RED) (CALIF. ONLY)TANK, COMP, FUEL (M.R.RED) (CALIF. ONLY)
-
51001C51001-1586-468 TANK, COMP, FUEL (M.R.RED) (EXCEPT CALIF.)TANK, COMP, FUEL (M.R.RED) (EXCEPT CALIF.)
-
5104951049-0003 CAP, TANK, FUELCAP, TANK, FUEL
-
5200552005-1138 GAUGE, FUELGAUGE, FUEL
-
9200192001-1705 BOLT, FUEL GAUGEBOLT, FUEL GAUGE
-
130130H0830 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
220220D0510 SCREW, PAN, CROSSCREW, PAN, CROS
-
702702A07860 TUBE, RUBBER, 7X10X860TUBE, RUBBER, 7X10X860
-
9200992009-1877 SCREW, 6X12SCREW, 6X12
-
9201592015-1174 NUT, CAP, 8MM (BLACK)NUT, CAP, 8MM (BLACK)
-
9202292022-1345 WASHER, 8X26X2.3WASHER, 8X26X2.3
-
92022A92022-183 WASHER, 6.2X11X1.5WASHER, 6.2X11X1.5
-
92022B92022-1977 WASHER, 5.1X10X1.0WASHER, 5.1X10X1.0
-
9202792027-1780 COLLAR, L=19.3COLLAR, L=19.3
-
9203792037-147 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
9203792037-147 CLAMP, TUBE (EXCEPT CALIF.)CLAMP, TUBE (EXCEPT CALIF.)
-
9205592055-1552 O-RING, ID=9O-RING, ID=9
-
9207592075-125 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075A92075-1736 DAMPERDAMPER
-
9209392093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)SEAL, FUEL TANK CAP (CALIF. ONLY)
-
9215192151-1449 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
9216092160-1162 DAMPERDAMPER
-
92160A92160-1907 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
9219192191-1272 TUBE, DRAINTUBE, DRAIN
-
92191A92191-1529 TUBE, 5X10X650 (EXCEPT CALIF.)TUBE, 5X10X650 (EXCEPT CALIF.)
