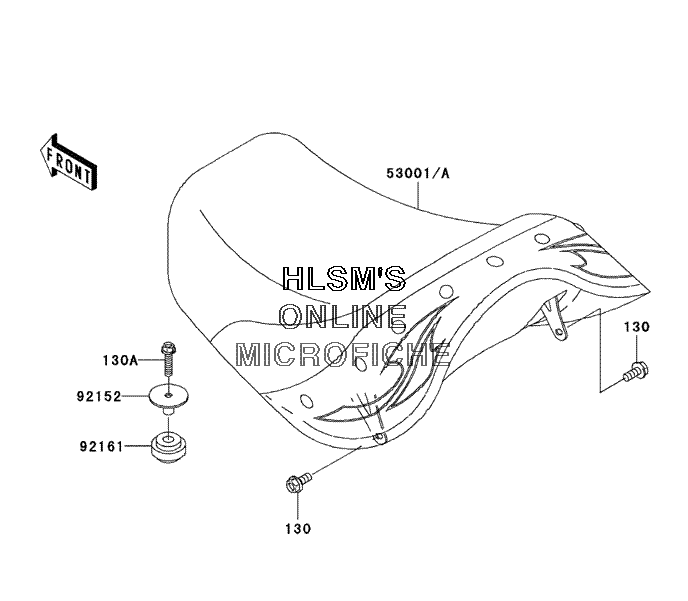

SEAT A для Kawasaki Vulcan 1500 Drifter - 2003 года выпуска
-
№АртикулНазвание
-
130130J0614 BOLT, FLANGED, 6X14 (BLACK)BOLT, FLANGED, 6X14 (BLACK)
-
130A130J0835 BOLT, FLANGED, 8X35 (BLACK)BOLT, FLANGED, 8X35 (BLACK)
-
53001A53001-1991-MA SEAT, ASSY., FRONT (BLACK)SEAT, ASSY., FRONT (BLACK)
-
9215292152-1100 COLLARCOLLAR
-
9216192161-1157 DAMPERDAMPER
