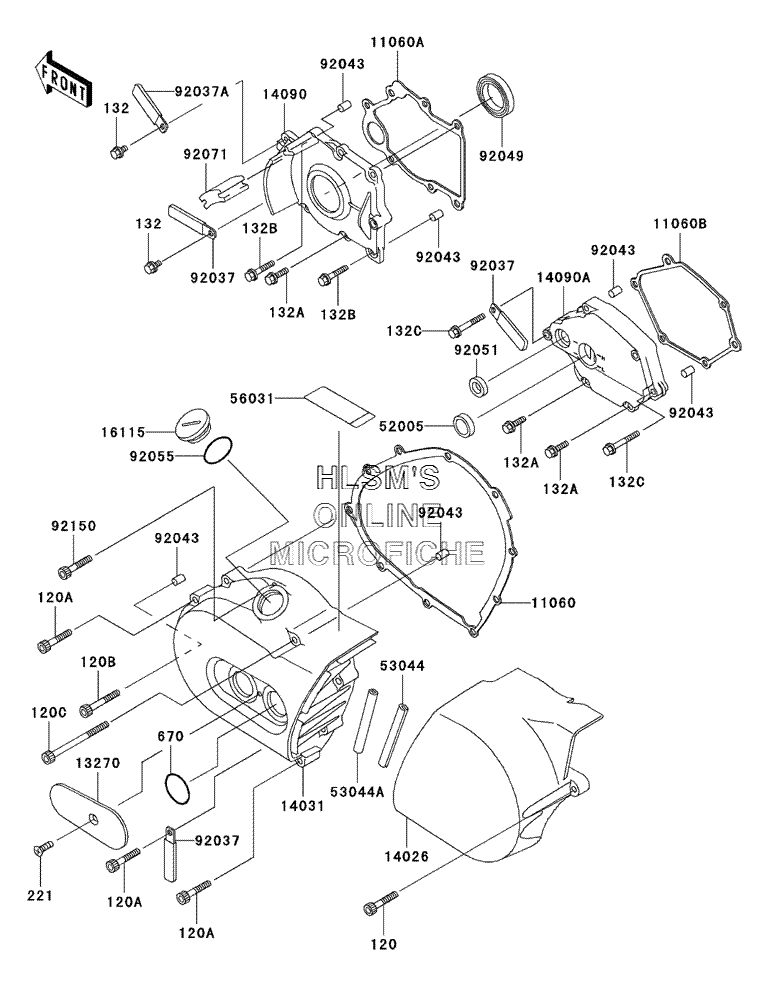

ENGINE COVER(S) - LEFT для Kawasaki Vulcan 800 - 2003 года выпуска
-
№АртикулНазвание
-
120120R0630 BOLT, SOCKETBOLT, SOCKET
-
120A120R0635 BOLT, SOCKETBOLT, SOCKET
-
120B120R0645 BOLT, SOCKETBOLT, SOCKET
-
120C120R0685 BOLT, SOCKETBOLT, SOCKET
-
132132H0610 BOLT, FLANGED, SMALL, 6X10BOLT, FLANGED, SMALL, 6X10
-
132A132J0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132J0630 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132C132J0640 BOLT, FLANGED, SMALL, 6X40BOLT, FLANGED, SMALL, 6X40
-
221221R0614 SCREW, CSK, CROS, 6X14SCREW, CSK, CROS, 6X14
-
670670B3034 O-RINGO-RING
-
1106011060-1089 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11060A11060-1683 GASKET, TRANSMISSION COVERGASKET, TRANSMISSION COVER
-
11060B11060-1685 GASKET, MECHANISM COVERGASKET, MECHANISM COVER
-
1327013270-1397 PLATEPLATE
-
1402614026-1217 COVER, CHAINCOVER, CHAIN
-
1403114031-1308 COVER, GENERATORCOVER, GENERATOR
-
1409014090-1552 COVER, TRANSMISSIONCOVER, TRANSMISSION
-
14090A14090-1559 COVER, MECHANISMCOVER, MECHANISM
-
1611516115-1063 CAP, OIL FILLERCAP, OIL FILLER
-
5200552005-1009 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5304453044-1285 TRIMTRIM
-
53044A53044-1286 TRIMTRIM
-
5603156031-1894 LABEL, MANUAL, OIL CAPACITYLABEL, MANUAL, OIL CAPACITY
-
9203792037-1539 CLAMP, L=45CLAMP, L=45
-
92037A92037-1993 CLAMPCLAMP
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204992049-1361 SEAL, OIL, TC32488SEAL, OIL, TC32488
-
9205192051-005 SEAL, OIL, TB13225.5SEAL, OIL, TB13225.5
-
9205592055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
9207192071-1232 GROMMETGROMMET
-
9215092150-1887 BOLT, SOCKET, 6X35BOLT, SOCKET, 6X35
