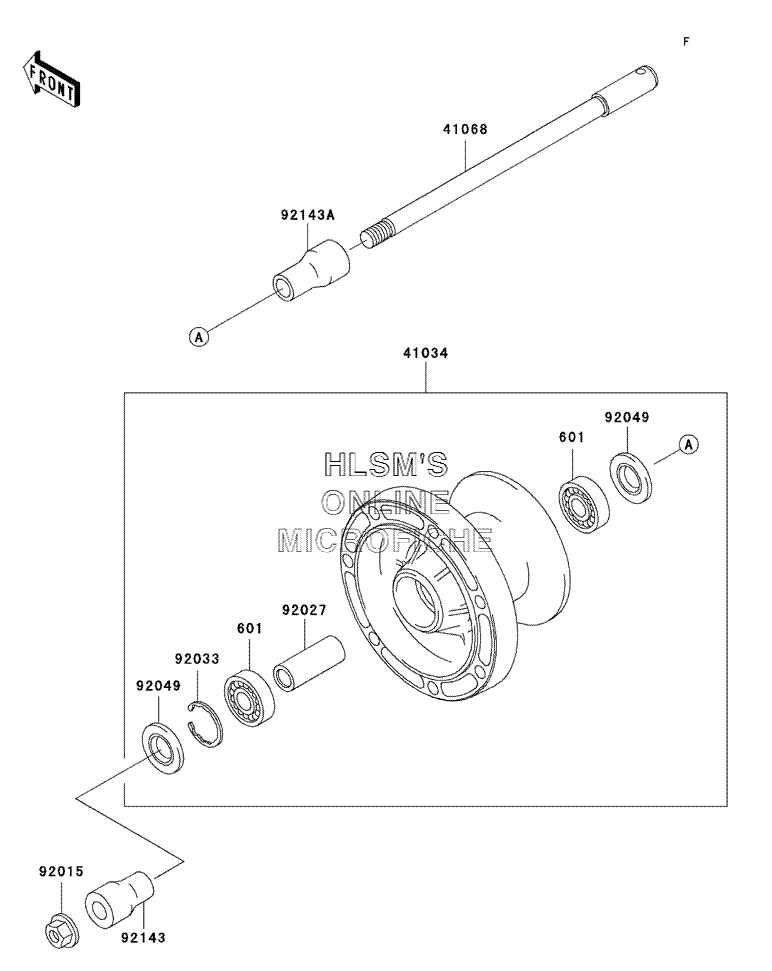

WHEEL - FRONT для Kawasaki Vulcan 800 - 2003 года выпуска
-
№АртикулНазвание
-
601601B6302UG BEARING, BALL, #6302UGBEARING, BALL, #6302UG
-
4103441034-1247 DRUM, ASSY, FRONT BRAKEDRUM, ASSY, FRONT BRAKE
-
4106841068-1243 AXLE, FRONTAXLE, FRONT
-
9201592015-1407 NUT, 14MMNUT, 14MM
-
9202792027-1866 COLLAR, L=70COLLAR, L=70
-
9203392033-1041 RING, SNAP, 42MMRING, SNAP, 42MM
-
9204992049-1058 SEAL, OIL, BJN22425SEAL, OIL, BJN22425
-
9214392143-1737 COLLAR, FRONT AXLE L=47.5 (LEFT)COLLAR, FRONT AXLE L=47.5 (LEFT)
-
92143A92143-1738 COLLAR, FRONT AXLE L=56.5 (RIGHT)COLLAR, FRONT AXLE L=56.5 (RIGHT)
