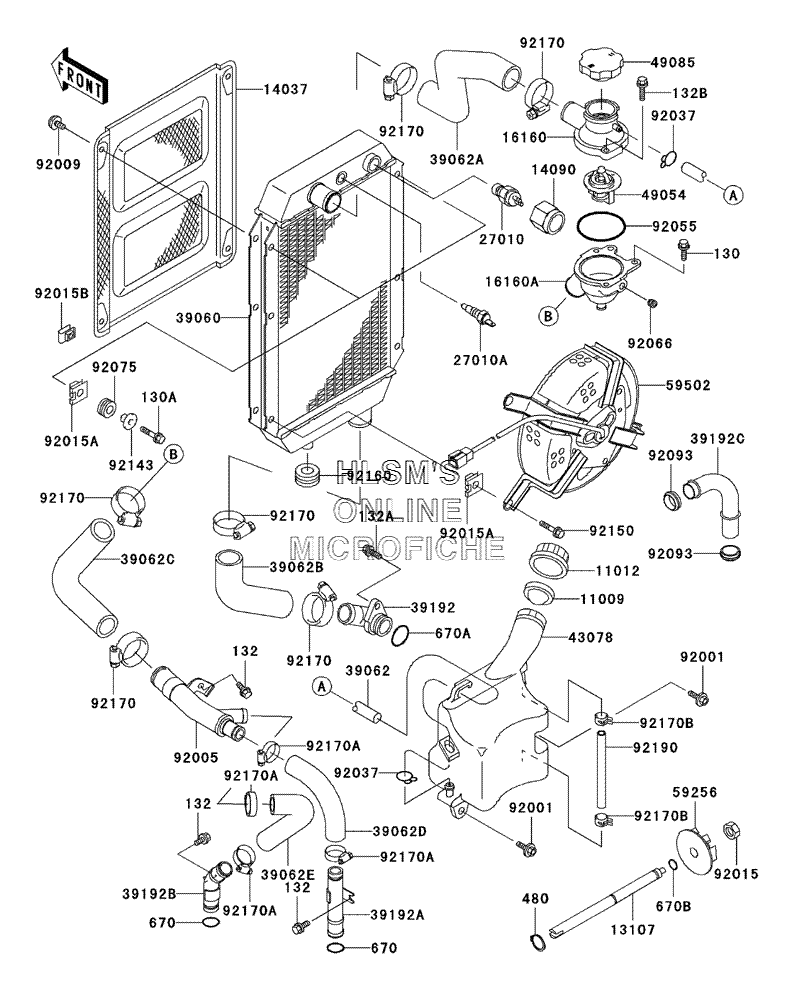

RADIATOR для Kawasaki Vulcan 800 - 2003 года выпуска
-
№АртикулНазвание
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1310713107-1155 SHAFT, IMPELLERSHAFT, IMPELLER
-
1403714037-1200 SCREEN, RADIATORSCREEN, RADIATOR
-
1409014090-1522 COVER, THERMOSTATCOVER, THERMOSTAT
-
1616016160-1152 BODY, UPPERBODY, UPPER
-
16160A16160-1242 BODYBODY
-
2701027010-1202 SWITCH, FANSWITCH, FAN
-
27010A27010-1305 SWITCH, WARNINGSWITCH, WARNING
-
3906039060-1164 RADIATORRADIATOR
-
3906239062-1124 HOSE, COOLINGHOSE, COOLING
-
39062A39062-1646 HOSE, COOLING, THERMO, RADIATORHOSE, COOLING, THERMO, RADIATOR
-
39062B39062-1647 HOSE, COOLING, RADIATOR, COVERHOSE, COOLING, RADIATOR, COVER
-
39062C39062-1648 HOSE, COOLING, THERMO, FITTINGHOSE, COOLING, THERMO, FITTING
-
39062D39062-1649 HOSE, COOLING, HEAD, REAR, FITTINGHOSE, COOLING, HEAD, REAR, FITTING
-
39062E39062-1650 HOSE, COOLING, HEAD, FRONT, FITTINGHOSE, COOLING, HEAD, FRONT, FITTING
-
3919239192-1078 PIPE, WATER, INLETPIPE, WATER, INLET
-
39192A39192-1079 PIPE, WATER, HEAD, REARPIPE, WATER, HEAD, REAR
-
39192B39192-1080 PIPE, WATER, HEAD, FRONTPIPE, WATER, HEAD, FRONT
-
39192C39192-1106 PIPE, WATER, OUTLETPIPE, WATER, OUTLET
-
4307843078-1149 RESERVOIRRESERVOIR
-
4905449054-1067 THERMOSTATTHERMOSTAT
-
4908549085-1067 CAP, ASSY, PRESSURECAP, ASSY, PRESSURE
-
5925659256-1058 IMPELLERIMPELLER
-
5950259502-1132 FAN, ASSYFAN, ASSY
-
9200192001-1950 BOLT, 6X16BOLT, 6X16
-
9200592005-1281 FITTINGFITTING
-
9200992009-1261 SCREW, TAPPING, 6MMSCREW, TAPPING, 6MM
-
9201592015-1191 NUT, LOCK, 6MM (BLACK)NUT, LOCK, 6MM (BLACK)
-
92015A92015-1487 NUTNUT
-
92015B92015-1758 NUT, 6MMNUT, 6MM
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9205592055-112 O-RING, 53.5X2.6O-RING, 53.5X2.6
-
9206692066-1227 PLUG, PT1/8X7PLUG, PT1/8X7
-
9207592075-1901 DAMPERDAMPER
-
9209392093-1427 SEALSEAL
-
9214392143-1353 COLLARCOLLAR
-
9215092150-1186 BOLT, 6X12BOLT, 6X12
-
9216092160-1007 DAMPERDAMPER
-
9217092170-1284 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
130130J0616 BOLT, FLANGED, 6X16 (BLACK)BOLT, FLANGED, 6X16 (BLACK)
-
130A130J0625 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
132132J0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132J0618 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132J0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
480480J1200 CIRCLIP, TYPE, C, 12MMCIRCLIP, TYPE, C, 12MM
-
670670B2014 O-RING, 14MMO-RING, 14MM
-
670A670B2021 O-RING, 21MMO-RING, 21MM
-
670B670D1509 O-RING, 9MMO-RING, 9MM
-
92170A92170-1285 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92170B92170-1493 CLAMPCLAMP
-
9219092190-1603 TUBE, 7X10X106TUBE, 7X10X106
