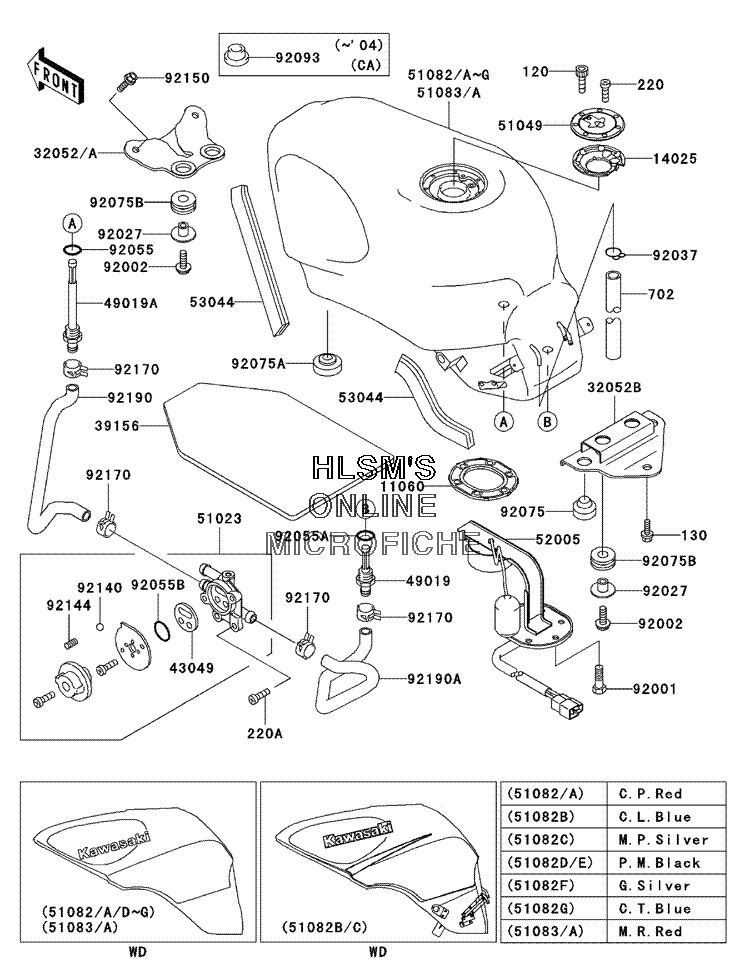

FUEL TANK для Kawasaki ZZR600 - 2003 года выпуска
-
№АртикулНазвание
-
1106011060-1337 GASKET, FUEL GAUGEGASKET, FUEL GAUGE
-
1402514025-1913 COVER, TANK CAPCOVER, TANK CAP
-
3205232052-1362-CQ BRACKET, TANK, FRONT (P.C.GRAY) (US ONLY)BRACKET, TANK, FRONT (P.C.GRAY) (US ONLY)
-
32052A32052-1362-EZ BRACKET, TANK, FRONT (C.GRAY) (CANADA ONLY)BRACKET, TANK, FRONT (C.GRAY) (CANADA ONLY)
-
32052B32052-1363 BRACKET, TANK, REARBRACKET, TANK, REAR
-
3915639156-1662 PAD, FUEL TANKPAD, FUEL TANK
-
4304943049-1091 PACKING, TAP VALVEPACKING, TAP VALVE
-
4901949019-1070 FILTER, FUELFILTER, FUEL
-
49019A49019-1071 FILTER, FUEL, "ON"FILTER, FUEL, "ON"
-
5102351023-1320 TAP, ASSY., FUELTAP, ASSY., FUEL
-
5104951049-1130 CAP, TANK, FUELCAP, TANK, FUEL
-
51082D51082-5406-373 TANK, COMP, FUEL (P.M.BLACK) (US ONLY)TANK, COMP, FUEL (P.M.BLACK) (US ONLY)
-
51082E51082-5407-373 TANK, COMP, FUEL (P.M.BLACK) (CALIF. ONLY)TANK, COMP, FUEL (P.M.BLACK) (CALIF. ONLY)
-
51082F51082-5430-474 TANK, COMP, FUEL (G.SILVER) (CANADA ONLY)TANK, COMP, FUEL (G.SILVER) (CANADA ONLY)
-
51082G51082-5431-235 TANK, COMP, FUEL (C.T.BLUE) (CANADA ONLY)TANK, COMP, FUEL (C.T.BLUE) (CANADA ONLY)
-
5200552005-1105 GAUGE, FUELGAUGE, FUEL
-
5304453044-1137 TRIMTRIM
-
9200192001-1069 BOLT, FUEL GAUGEBOLT, FUEL GAUGE
-
9200292002-1237 BOLT, 6X20BOLT, 6X20
-
9202792027-251 COLLAR, L=13.1COLLAR, L=13.1
-
9203792037-010 CLAMP, TUBECLAMP, TUBE
-
9205592055-1386 O-RING, ID=9.5O-RING, ID=9.5
-
92055A92055-1387 O-RING, 11.5X1.5O-RING, 11.5X1.5
-
92055B92055-1419 O-RING, TAP LEVERO-RING, TAP LEVER
-
9207592075-015 DAMPERDAMPER
-
92075A92075-157 DAMPERDAMPER
-
92075B92075-1690 DAMPERDAMPER
-
120120S0512 BOLT, SOCKETBOLT, SOCKET
-
130130J0820 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
220220F0508 SCREW, PAN, CROSSSCREW, PAN, CROSS
-
220A220F0608 SCREW, PAN, CROSSSCREW, PAN, CROSS
-
702702A07600 TUBE, RUBBER, 7X10X600TUBE, RUBBER, 7X10X600
-
9209392093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)SEAL, FUEL TANK CAP (CALIF. ONLY)
-
9214092140-1051 BALL, STAINLESS, 5/32"BALL, STAINLESS, 5/32"
-
9214492144-1212 SPRING, FUEL TAP KNOBSPRING, FUEL TAP KNOB
-
9215092150-1340 BOLT, 6X14BOLT, 6X14
-
9217092170-1492 CLAMPCLAMP
-
9219092190-1332 TUBE, TAP, FILTERTUBE, TAP, FILTER
-
92190A92190-1333 TUBE, FUE(LEFT, RIGHT) ESTUBE, FUE(LEFT, RIGHT) ES
