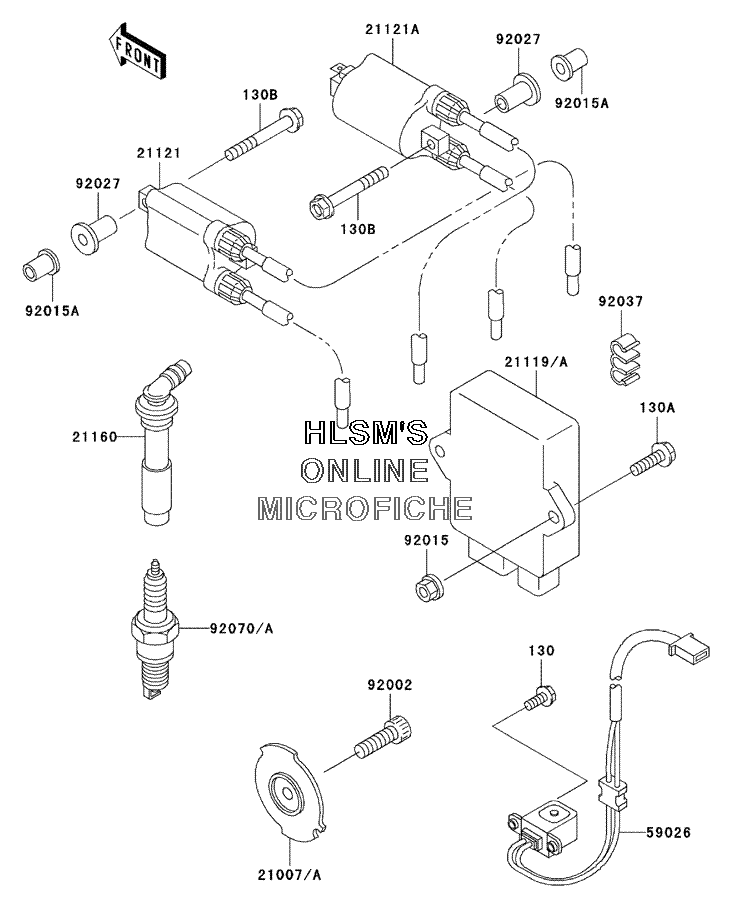

IGNITION SYSTEM для Kawasaki ZZR600 - 2003 года выпуска
-
№АртикулНазвание
-
130130G0512 BOLT, FLANGEDBOLT, FLANGED
-
130A130J0620 BOLT, FLANGEDBOLT, FLANGED
-
130B130J0645 BOLT, FLANGED, 6X45 (BLACK)BOLT, FLANGED, 6X45 (BLACK)
-
2100721007-1205 ROTOR, PULSING (EXCEPT CALIF.)ROTOR, PULSING (EXCEPT CALIF.)
-
21007A21007-1258 ROTOR, PULSING (CALIF. ONLY)ROTOR, PULSING (CALIF. ONLY)
-
2111921119-1364 IGNITER (EXCEPT CALIF.)IGNITER (EXCEPT CALIF.)
-
21119A21119-1387 IGNITER (CALIF. ONLY)IGNITER (CALIF. ONLY)
-
2112121121-1227 COIL, IGNITION, #1 AND #4COIL, IGNITION, #1 AND #4
-
21121A21121-1228 COIL, IGNITION, #2 AND #3COIL, IGNITION, #2 AND #3
-
2116021160-1081 CAP, ASSY., PLUGCAP, ASSY., PLUG
-
5902659026-1100 COIL, PULSINGCOIL, PULSING
-
9200292002-1442 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9201592015-1094 NUT, 6MMNUT, 6MM
-
92015A92015-1700 NUTNUT
-
9202792027-195 COLLAR, L=21COLLAR, L=21
-
9203792037-1697 CLAMP, CABLE PLUG, SPARK, U27ESR, N (ND) (LOCAL PROCUREMENT ITEM)CLAMP, CABLE PLUG, SPARK, U27ESR, N (ND) (LOCAL PROCUREMENT ITEM)
-
92070A92070-1266 PLUG, SPARK, CR9E (NGK)PLUG, SPARK, CR9E (NGK)
