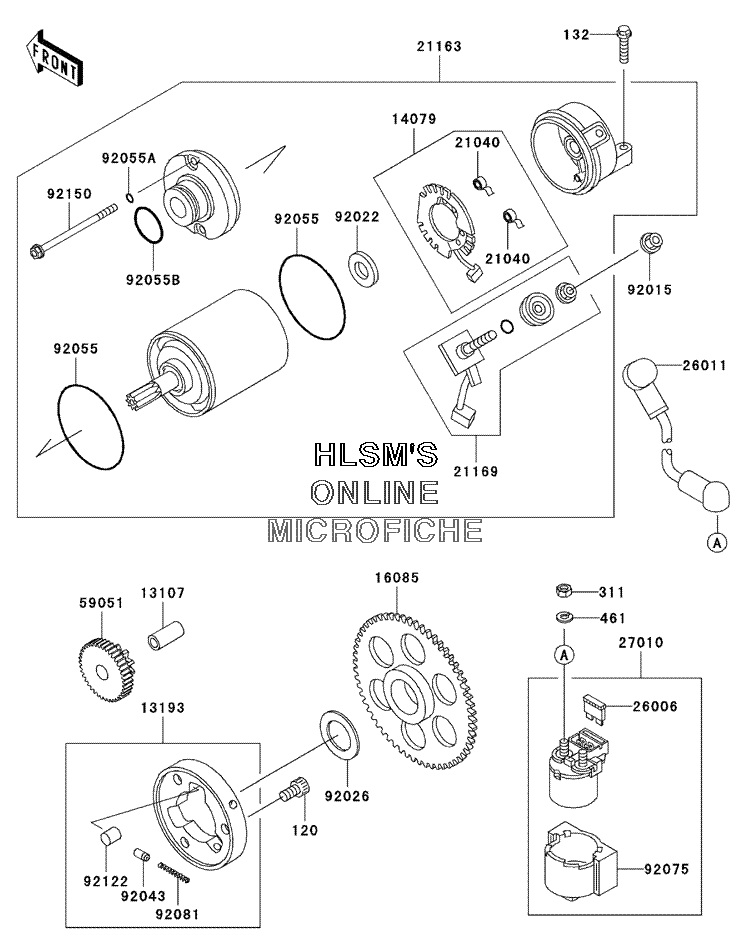

STARTER MOTOR для Kawasaki ZZR600 - 2003 года выпуска
-
№АртикулНазвание
-
120120P0814 BOLT, SOCKET, 8X14BOLT, SOCKET, 8X14
-
132132H0625 BOLT, FLANGED, SMALL, 6X25BOLT, FLANGED, SMALL, 6X25
-
311311H0600 NUT, HEXNUT, HEX
-
461461L0600 WASHER, SPRINGWASHER, SPRING
-
1310713107-1176 SHAFT, 7.8X12X26.5SHAFT, 7.8X12X26.5
-
1319313193-1002 CLUTCH, ASSY., ONEWAYCLUTCH, ASSY., ONEWAY
-
1407914079-0009 HOLDER, ASSY., STARTERHOLDER, ASSY., STARTER
-
1608516085-1224 GEAR, ONEWAY CLUTCHGEAR, ONEWAY CLUTCH
-
2104021040-0001 SPRING, BRUSHSPRING, BRUSH
-
2116321163-0014 STARTER, ELECTRICSTARTER, ELECTRIC
-
2116921169-1058 TERMINAL, STARTERTERMINAL, STARTER
-
2600626006-1006 FUSE, 30A, GFUSE, 30A, G
-
2601126011-1576 WIRE, LEAD, STARTER MOTORWIRE, LEAD, STARTER MOTOR
-
2701027010-1213 SWITCH, MAGNETICSWITCH, MAGNETIC
-
5905159051-1232 GEAR, SPUR, IDLEGEAR, SPUR, IDLE
-
9201592015-1623 NUTNUT
-
9202292022-2200 WASHERWASHER
-
9202692026-1536 SPACER, 25.5X38X1.0SPACER, 25.5X38X1.0
-
9204392043-132 PINPIN
-
9205592055-1260 O-RING, 62MMO-RING, 62MM
-
92055A92055-1261 O-RING, 4.5MMO-RING, 4.5MM
-
92055B92055-1262 O-RING, 24.4MMO-RING, 24.4MM
-
9207592075-1863 DAMPER, MAGNETIC SWITCHDAMPER, MAGNETIC SWITCH
-
9208192081-159 SPRING, COILSPRING, COIL
-
9212292122-006 ROLLERROLLER
-
9215092150-1237 BOLTBOLT
