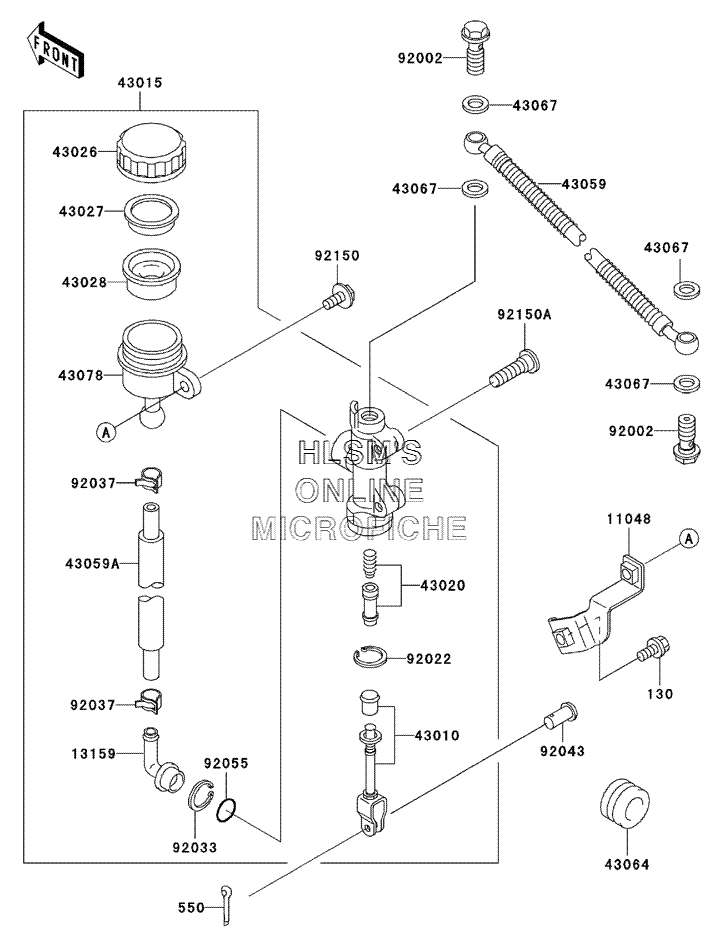

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA 500R - 2004 года выпуска
-
№АртикулНазвание
-
130130J0612 BOLT, FLANGEDBOLT, FLANGED
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
1104811048-1363 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
1315913159-1056 CONNECTORCONNECTOR
-
4301043010-1055 ROD, ASSY, BRAKEROD, ASSY, BRAKE
-
4301543015-1555 CYLINDER, ASSY, MASTER, REARCYLINDER, ASSY, MASTER, REAR
-
4302043020-1094 PISTON, COMP, BRAKEPISTON, COMP, BRAKE
-
4302643026-1077 CAP, BRAKECAP, BRAKE
-
4302743027-1053 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
4302843028-1065 DIAPHRAGMDIAPHRAGM
-
4305943059-1779 HOSE, BRAKE, REARHOSE, BRAKE, REAR
-
43059A43059-1780 HOSE, BRAKE, REAR MASTER CYLINDERHOSE, BRAKE, REAR MASTER CYLINDER
-
4306443064-007 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4307843078-1080 RESERVOIRRESERVOIR
-
9200292002-1907 BOLT, OIL, L=23BOLT, OIL, L=23
-
9202292022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
9203392033-1186 RING, SNAP, 20.5MMRING, SNAP, 20.5MM
-
9203792037-1710 CLAMPCLAMP
-
9204392043-1303 PIN, 8MMPIN, 8MM
-
9205592055-1251 O-RING, MASTER CYLINDERO-RING, MASTER CYLINDER
-
9215092150-1198 BOLT, 6X16BOLT, 6X16
-
92150A92150-1843 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
