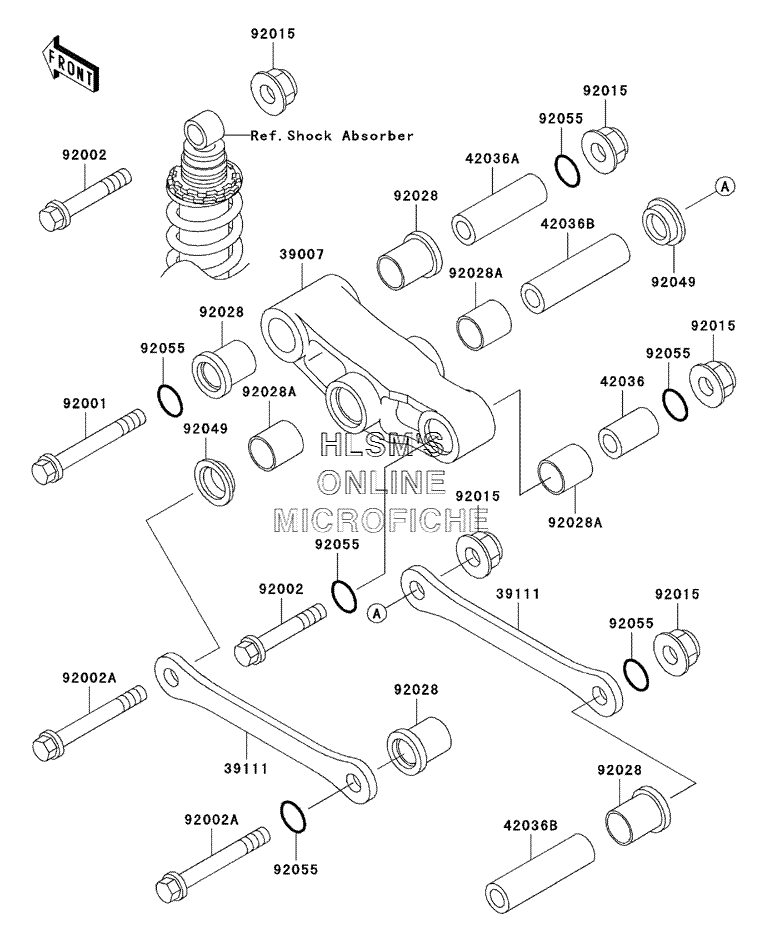

SUSPENSION - REAR для Kawasaki NINJA 500R - 2004 года выпуска
-
№АртикулНазвание
-
3900739007-1120 ARM, SUSPENSION, UNI TRAKARM, SUSPENSION, UNI TRAK
-
3911139111-1133 ROD, TIE, SUSPENSIONROD, TIE, SUSPENSION
-
4203642036-1077 SLEEVE, 12.1X20X32SLEEVE, 12.1X20X32
-
42036A42036-1078 SLEEVE, ARM, FRONTSLEEVE, ARM, FRONT
-
42036B42036-1102 SLEEVE, 12.1X20X74SLEEVE, 12.1X20X74
-
9200192001-1937 BOLT, 12X90BOLT, 12X90
-
9200292002-1130 BOLT, 12X55BOLT, 12X55
-
92002A92002-1886 BOLT, FLANGED, 12X100BOLT, FLANGED, 12X100
-
9201592015-1433 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
9202892028-1597 BUSHINGBUSHING
-
92028A92028-1598 BUSHINGBUSHING
-
9204992049-1109 SEAL, OIL, ARMSEAL, OIL, ARM
-
9205592055-1215 O-RING, 19.8X2.2O-RING, 19.8X2.2
