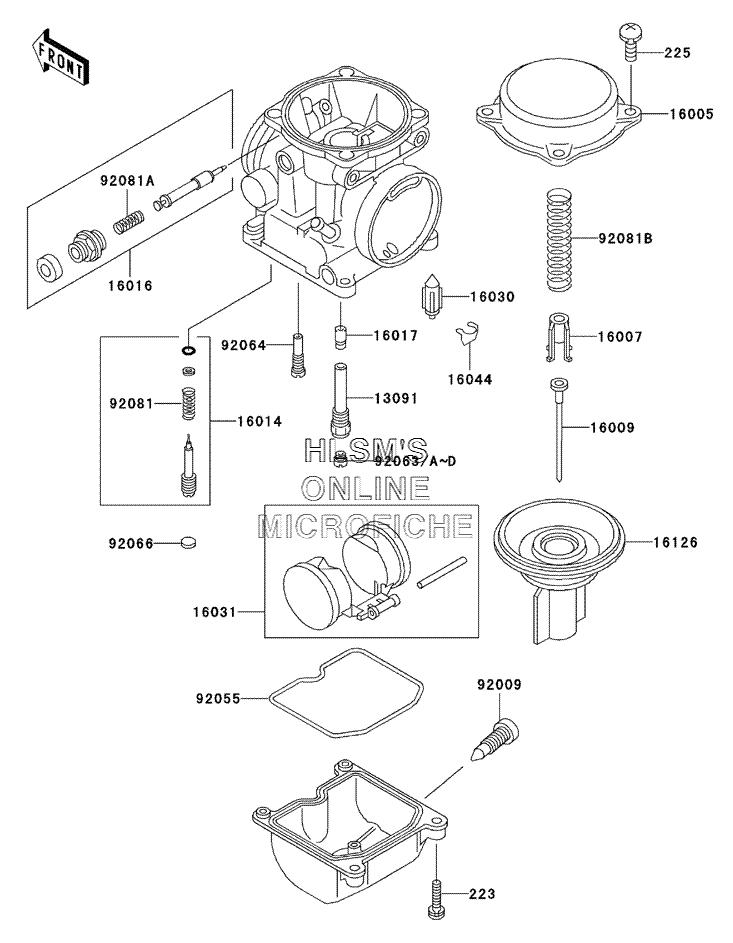

CARBURETOR PARTS для Kawasaki NINJA 500R - 2004 года выпуска
-
№АртикулНазвание
-
223223C0416 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
225225C0418 SCREW, PAN, WSP, CROSSCREW, PAN, WSP, CROS
-
1309113091-1406 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
1600516005-1057 TOP, CHAMBER, MIXING, 27/60TOP, CHAMBER, MIXING, 27/60
-
1600716007-1117 SEAT, SPRING, VALVESEAT, SPRING, VALVE
-
1600916009-1342 NEEDLE, JET, N36NNEEDLE, JET, N36N
-
1601416014-1081 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-1090 PLUNGER, STARTERPLUNGER, STARTER
-
1601716017-1059 JET, NEEDLEJET, NEEDLE
-
1603016030-1007 VALVE, FLOATVALVE, FLOAT
-
1603116031-1077 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1612616126-1173 VALVE, VACUUM, 60PSVALVE, VACUUM, 60PS
-
9200992009-1551 SCREW, DRAIN, M6X0.75SCREW, DRAIN, M6X0.75
-
9205592055-1222 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
9206392063-1014 JET, MAIN, #135 (RACING USE ONLY)JET, MAIN, #135 (RACING USE ONLY)
-
92063A92063-1069 JET, MAIN, #125 (RACING USE ONLY)JET, MAIN, #125 (RACING USE ONLY)
-
92063B92063-1074 JET, MAIN, #128 (RACING USE ONLY)JET, MAIN, #128 (RACING USE ONLY)
-
92063C92063-1075 JET, MAIN, #130JET, MAIN, #130
-
92063D92063-1076 JET, MAIN, #132 (RACING USE ONLY)JET, MAIN, #132 (RACING USE ONLY)
-
9206492064-1101 JET, PILOT, #35JET, PILOT, #35
-
9206692066-1051 PLUG, PILOT AIR SCREW, 6.9X2PLUG, PILOT AIR SCREW, 6.9X2
-
9208192081-1002 SPRING, PILOT ADJUST SCREWSPRING, PILOT ADJUST SCREW
-
92081A92081-1761 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
92081B92081-1874 SPRING, VACUUM VALVESPRING, VACUUM VALVE
