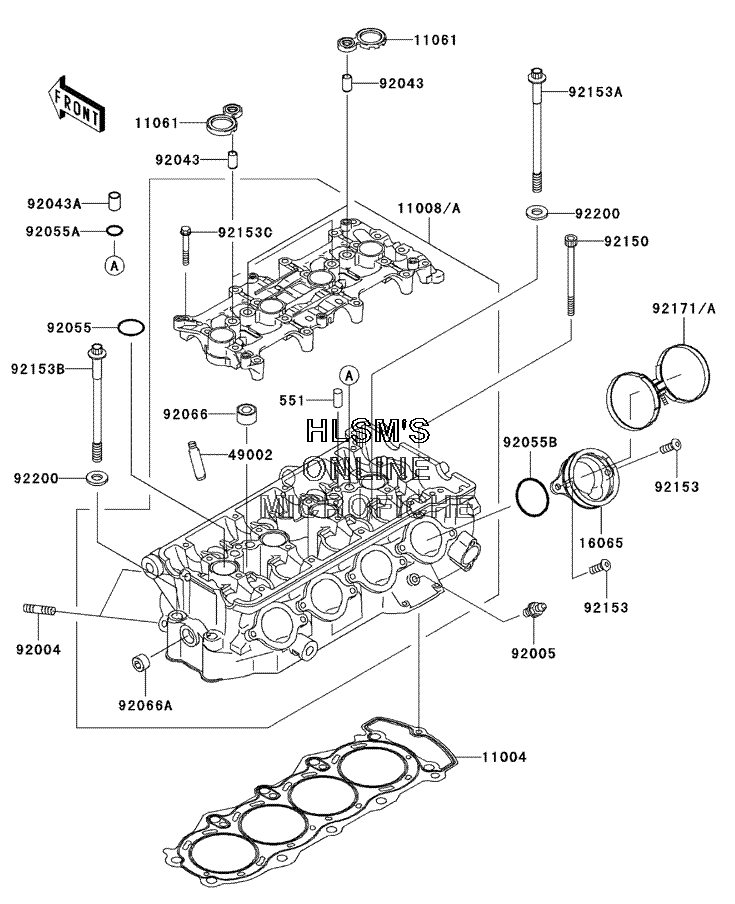

CYLINDER HEAD для Kawasaki NINJA ZX-6R - 2004 года выпуска
-
№АртикулНазвание
-
551551A0612 PIN, DOWEL, 6X12PIN, DOWEL, 6X12
-
1100411004-1383 GASKET, HEADGASKET, HEAD
-
1100811008-0019 HEAD, COMP, CYLINDERHEAD, COMP, CYLINDER
-
1106111061-0042 GASKET, BEARING CAPGASKET, BEARING CAP
-
1606516065-1386 HOLDER, CARBURETORHOLDER, CARBURETOR
-
4900249002-1152 GUIDE, VALVEGUIDE, VALVE
-
9200492004-1249 STUD, 8X22STUD, 8X22
-
9200592005-1273 FITTINGFITTING
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
9205592055-1403 O-RING, 25.5X2O-RING, 25.5X2
-
92055A92055-1469 O-RING, 11.5X1.5O-RING, 11.5X1.5
-
92055B92055-1536 O-RING, 42X1.9O-RING, 42X1.9
-
9206692066-0002 PLUG, PT1/2X12.5PLUG, PT1/2X12.5
-
92066A92066-1420 PLUG, PT3/8X10PLUG, PT3/8X10
-
9215092150-1928 BOLT, SOCKET, 6X92BOLT, SOCKET, 6X92
-
9215392153-0406 BOLT, 6X14BOLT, 6X14
-
92153A92153-1250 BOLT, 9X146BOLT, 9X146
-
92153B92153-1251 BOLT, 9X138BOLT, 9X138
-
92153C92153-1258 BOLT, 6X40BOLT, 6X40
-
92171A92171-0173 CLAMP, CARBURETOR HOLDERCLAMP, CARBURETOR HOLDER
-
9220092200-1673 WASHER, 9.2X19X2.3WASHER, 9.2X19X2.3
