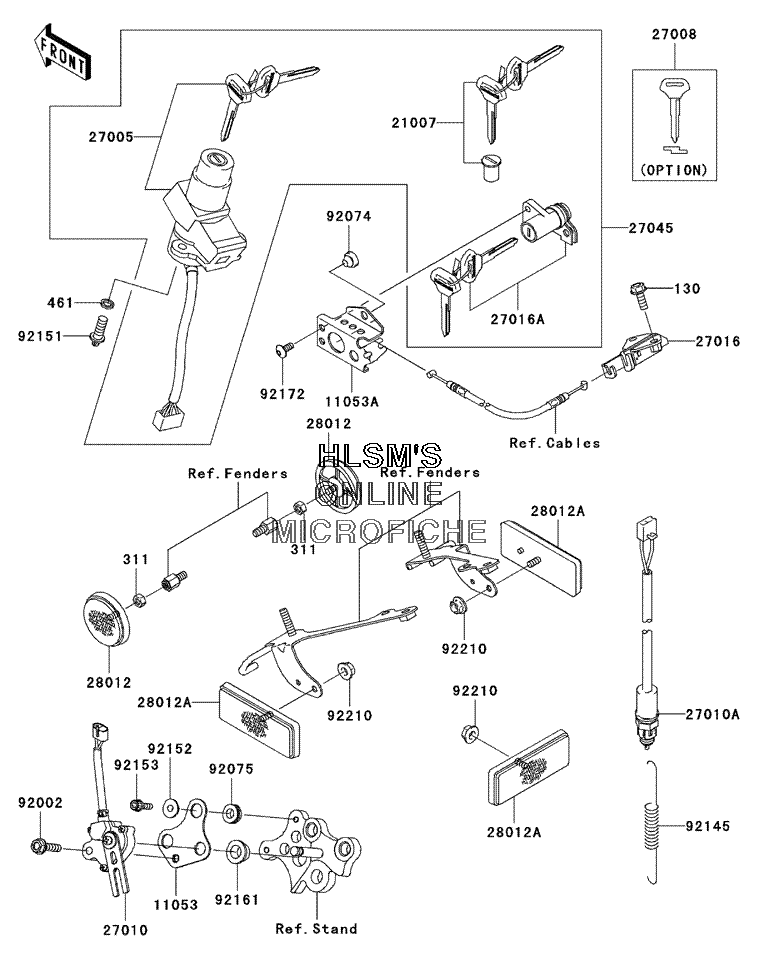

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki NINJA ZX-6R - 2004 года выпуска
-
№АртикулНазвание
-
130130L0616 BOLT, FLANGEDBOLT, FLANGED
-
311311L0500 NUT, HEXNUT, HEX
-
461461L0600 WASHER, SPRINGWASHER, SPRING
-
1105311053-0056 BRACKET, SIDE STAND SWITCHBRACKET, SIDE STAND SWITCH
-
11053A11053-1132 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
2100721007-5042 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-5126 SWITCH, ASSY., IGNITIONSWITCH, ASSY., IGNITION
-
2700827008-1189 KEY, LOCK, BLANK (OPT)KEY, LOCK, BLANK (OPT)
-
2701027010-1463 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-1479 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-1115 LOCK, ASSY., SEAT STRIKERLOCK, ASSY., SEAT STRIKER
-
27016A27016-5261 LOCK, ASSY., SEATLOCK, ASSY., SEAT
-
2704527045-5199 SWITCH, ASSY.SWITCH, ASSY.
-
2801228012-016 REFLECTOR, REFLEX, FRONTREFLECTOR, REFLEX, FRONT
-
28012A28012-1077 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
9200292002-1582 BOLT, 6X25BOLT, 6X25
-
9207492074-028 PLUG, 7X2PLUG, 7X2
-
9207592075-161 DAMPER, BATTERYDAMPER, BATTERY
-
9214592145-0057 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215192151-1911 BOLT, TORX, 6X16BOLT, TORX, 6X16
-
9215292152-0017 COLLARCOLLAR
-
9215392153-0414 BOLT, SOCKET, 5X18BOLT, SOCKET, 5X18
-
9216192161-0016 DAMPERDAMPER
-
9217292172-1084 SCREW, 5X12SCREW, 5X12
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
