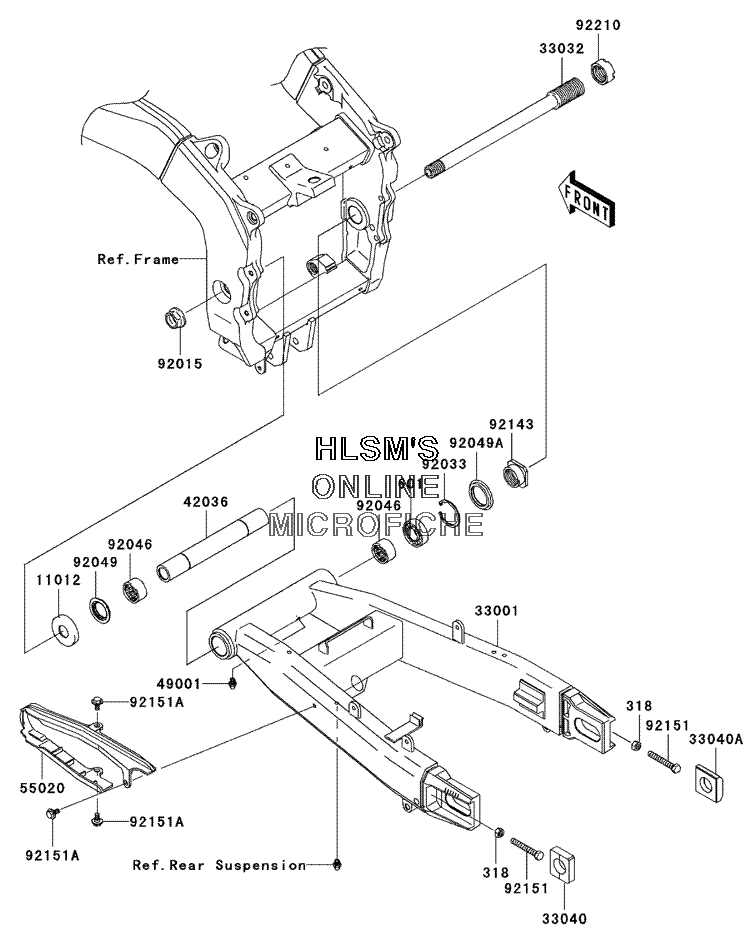

SUSPENSION - SWINGARM для Kawasaki NINJA ZX-6R - 2004 года выпуска
-
№АртикулНазвание
-
318318G0800 NUT, HEX, SMALL, 8MMNUT, HEX, SMALL, 8MM
-
601601A6004 BEARING, BALL, #6004BEARING, BALL, #6004
-
1101211012-1658 CAPCAP
-
3300133001-1636-458 ARM, COMP, SWING (P.SILVER)ARM, COMP, SWING (P.SILVER)
-
3303233032-0003 SHAFT, SWING ARMSHAFT, SWING ARM
-
3304033040-1114 ADJUSTER, CHAINADJUSTER, CHAIN
-
33040A33040-1180 ADJUSTER, CHAIN (RIGHT)ADJUSTER, CHAIN (RIGHT)
-
4203642036-1283 SLEEVE, SWING ARM, L=213SLEEVE, SWING ARM, L=213
-
4900149001-0001 NIPPLE, GREASENIPPLE, GREASE
-
5502055020-1806 GUARD, CHAINGUARD, CHAIN
-
9201592015-1724 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
-
9203392033-1041 RING, SNAP, 42MMRING, SNAP, 42MM
-
9204692046-1111 BEARING, NEEDLE, BM2817BEARING, NEEDLE, BM2817
-
9204992049-1181 SEAL, OILSEAL, OIL
-
92049A92049-1380 SEAL, OIL, MHA 35 42 5.7FSEAL, OIL, MHA 35 42 5.7F
-
9214392143-1973 COLLAR, SWING ARM PIVOT (RIGHT)COLLAR, SWING ARM PIVOT (RIGHT)
-
9215192151-1578 BOLT, 8X55BOLT, 8X55
-
92151A92151-1703 BOLT, 6MMBOLT, 6MM
-
9221092210-1347 NUT, M28X1.0NUT, M28X1.0
