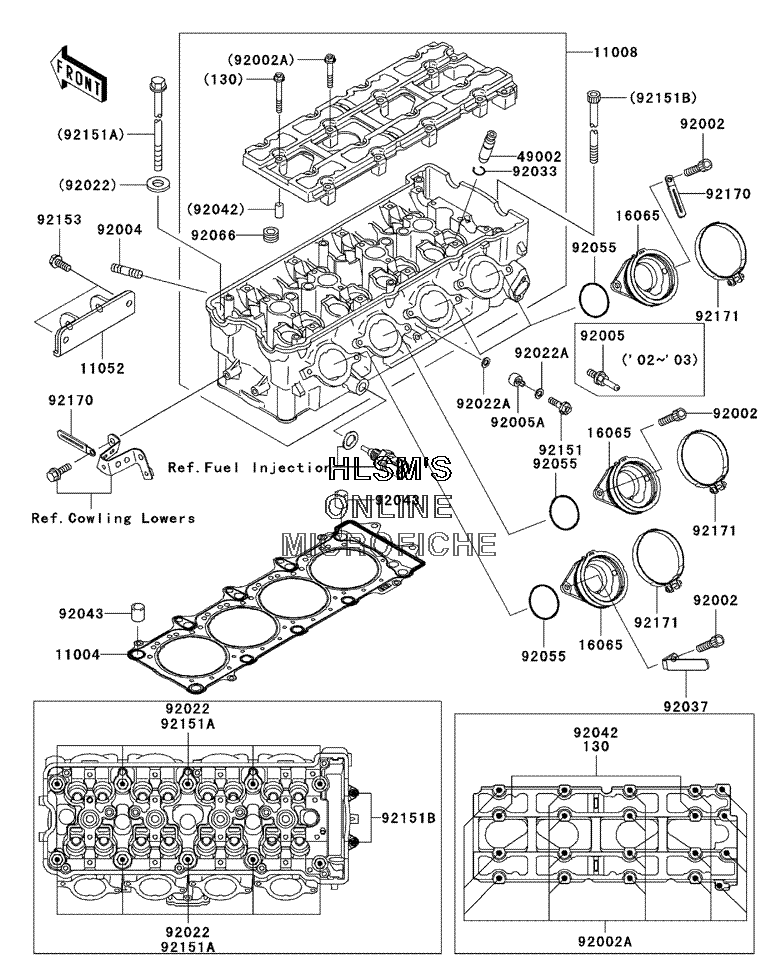

CYLINDER HEAD для Kawasaki NINJA ZX-12R - 2005 года выпуска
-
№АртикулНазвание
-
130130Z0650 BOLT, FLANGEDBOLT, FLANGED
-
1100411004-1369 GASKET, HEADGASKET, HEAD
-
1100811008-0036 HEAD, COMP, CYLINDERHEAD, COMP, CYLINDER
-
1105211052-1542 BRACKET, CYLINDER HEADBRACKET, CYLINDER HEAD
-
1606516065-1377 HOLDER, CARBURETORHOLDER, CARBURETOR
-
4900249002-1140 GUIDE, VALVEGUIDE, VALVE
-
9200292002-1143 BOLT, 6X16BOLT, 6X16
-
92002A92002-1756 BOLT, 6X40BOLT, 6X40
-
9200492004-1249 STUD, 8X22STUD, 8X22
-
92005A92005-1346 FITTINGFITTING
-
9202292022-1720 WASHER, 11.5X20.5X1.6WASHER, 11.5X20.5X1.6
-
92022A92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203392033-1247 RING, SNAPRING, SNAP
-
9203792037-1679 CLAMPCLAMP
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-1593 PIN, 14X14PIN, 14X14
-
9205592055-1600 O-RING, 47X1.9O-RING, 47X1.9
-
9206692066-0002 PLUG, PT1/2X12.5PLUG, PT1/2X12.5
-
9215192151-1329 BOLT, BANJO, 6X20BOLT, BANJO, 6X20
-
92151A92151-1513 BOLT, 11X168BOLT, 11X168
-
92151B92151-1804 BOLT, SOCKET, 7X120BOLT, SOCKET, 7X120
-
9215392153-0892 BOLT, 8X20BOLT, 8X20
-
9217092170-1514 CLAMPCLAMP
-
9217192171-1089 CLAMPCLAMP
