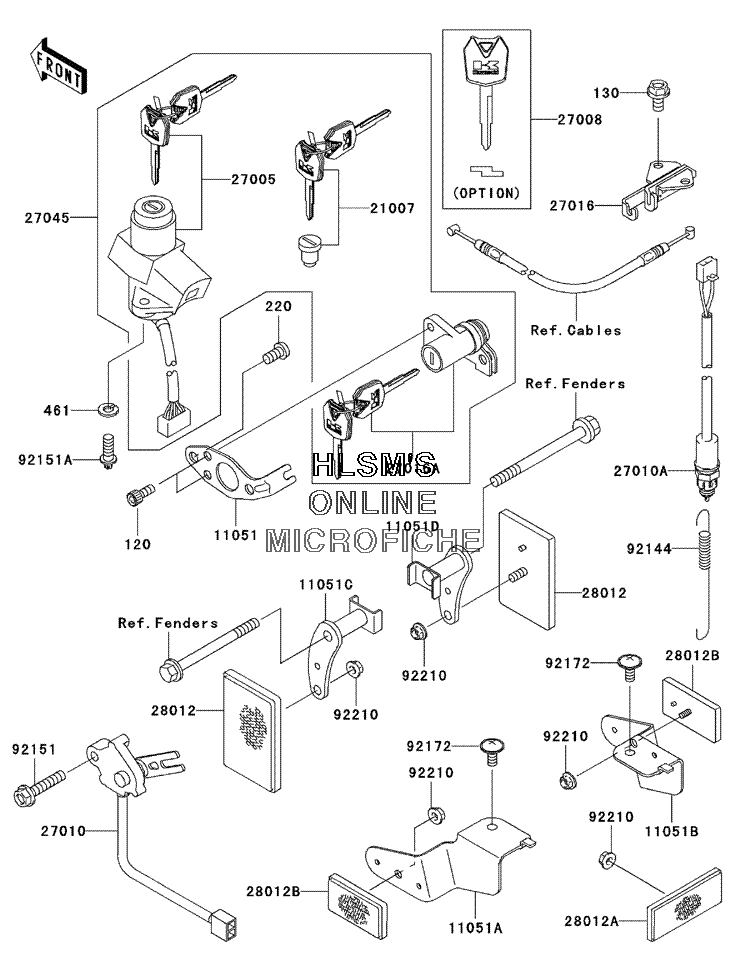

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki NINJA ZX-12R - 2005 года выпуска
-
№АртикулНазвание
-
120120S0512 BOLT, SOCKETBOLT, SOCKET
-
130130J0612 BOLT, FLANGEDBOLT, FLANGED
-
220220F0610 SCREW, PAN, CROSSSCREW, PAN, CROSS
-
461461L0600 WASHER, SPRINGWASHER, SPRING
-
1105111051-1370 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
11051A11051-1481 BRACKET, REFLECTOR, REAR (LEFT)BRACKET, REFLECTOR, REAR (LEFT)
-
11051B11051-1482 BRACKET, REFLECTOR, REAR (RIGHT)BRACKET, REFLECTOR, REAR (RIGHT)
-
11051C11051-1662 BRACKET, REFLECTOR, FRONT (LEFT)BRACKET, REFLECTOR, FRONT (LEFT)
-
11051D11051-1663 BRACKET, REFLECTOR, FRONT (RIGHT)BRACKET, REFLECTOR, FRONT (RIGHT)
-
2100721007-5057 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-5130 SWITCH, ASSY, IGNITIONSWITCH, ASSY, IGNITION
-
2700827008-0030 KEY, LOCK, BLANK (OPT)KEY, LOCK, BLANK (OPT)
-
2701027010-1461 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-1479 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-1115 LOCK, ASSY, SEAT STRIKERLOCK, ASSY, SEAT STRIKER
-
27016A27016-5309 LOCK, ASSY, SEATLOCK, ASSY, SEAT
-
2704527045-5231 SWITCH, ASSYSWITCH, ASSY
-
2801228012-1003 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
28012A28012-1077 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
28012B28012-1088 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
9214492144-1753 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215192151-1216 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
92151A92151-1911 BOLT, TORX, 6X16BOLT, TORX, 6X16
-
9217292172-0004 SCREW, 6X14SCREW, 6X14
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
