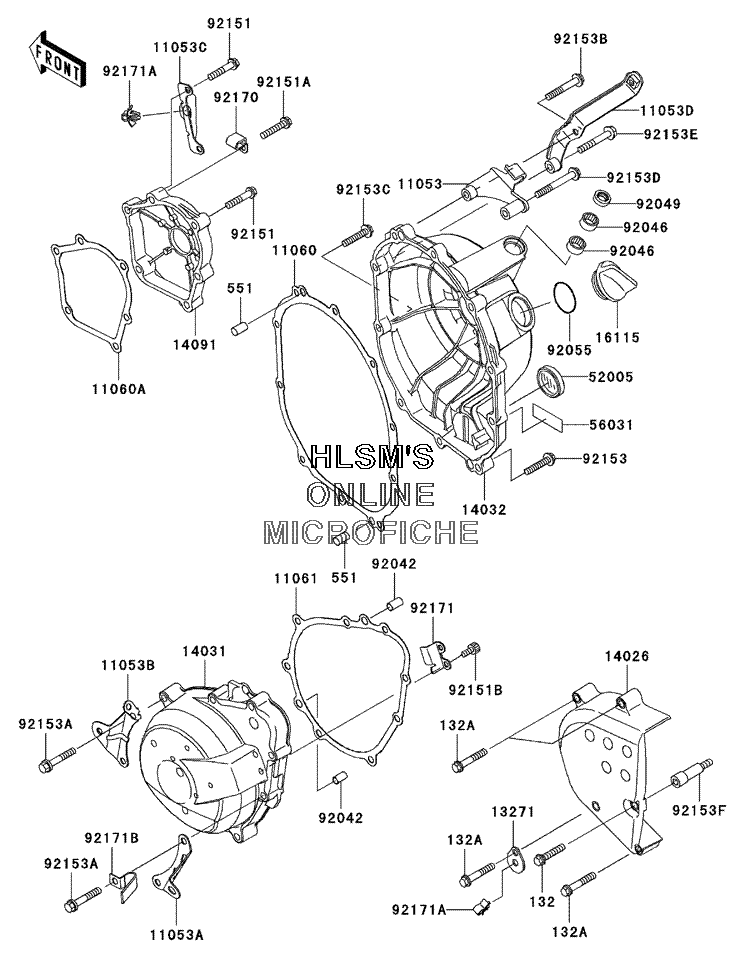

ENGINE COVER для Kawasaki NINJA ZX-6R - 2005 года выпуска
-
№АртикулНазвание
-
132132J0630 BOLT, FLANGED, SMALL, M6X30BOLT, FLANGED, SMALL, M6X30
-
132A132J0635 BOLT, FLANGED, SMALL, M6X35BOLT, FLANGED, SMALL, M6X35
-
551551A0814 PIN, DOWEL, 8X14PIN, DOWEL, 8X14
-
1105311053-1353 BRACKET, CLUTCH WIREBRACKET, CLUTCH WIRE
-
11053A11053-1456 BRACKET, GENERATOR COVER, REARBRACKET, GENERATOR COVER, REAR
-
11053B11053-1677 BRACKET, GENERATOR COVER, FRONTBRACKET, GENERATOR COVER, FRONT
-
11053C11053-1699 BRACKET, PULSER COVERBRACKET, PULSER COVER
-
11053D11053-1700 BRACKET, CLUTCH COVERBRACKET, CLUTCH COVER
-
1106011060-1853 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11060A11060-1867 GASKET, PULSING COVERGASKET, PULSING COVER
-
1106111061-0113 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
1327113271-0561 PLATEPLATE
-
1402614026-0018 COVER, CHAINCOVER, CHAIN
-
1403114031-0032 COVER, GENERATORCOVER, GENERATOR
-
1403214032-0037 COVER, CLUTCHCOVER, CLUTCH
-
1409114091-0319 COVER, PULSERCOVER, PULSER
-
1611516115-1009 CAP, OIL FILLERCAP, OIL FILLER
-
5200552005-1057 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5603156031-1895 LABEL, MANUAL, OIL CAPACITYLABEL, MANUAL, OIL CAPACITY
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204692046-1010 BEARING, NEEDLE, HK1210BEARING, NEEDLE, HK1210
-
9204992049-1271 SEAL, OIL, TB12205.5SEAL, OIL, TB12205.5
-
9205592055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
9215192151-1134 BOLT, 6X30BOLT, 6X30
-
92151A92151-1201 BOLT, 6X30BOLT, 6X30
-
92151B92151-1365 BOLT, SOCKET, 5X12BOLT, SOCKET, 5X12
-
9215392153-0608 BOLT, 6X30BOLT, 6X30
-
92153A92153-0634 BOLT, 6X35BOLT, 6X35
-
92153B92153-0635 BOLT, 6X40BOLT, 6X40
-
92153C92153-0786 BOLT, 6X30BOLT, 6X30
-
92153D92153-0830 BOLT, 6X50BOLT, 6X50
-
92153E92153-0929 BOLT, M6X40, YELBOLT, M6X40, YEL
-
92153F92153-0992 BOLT, SOCKETBOLT, SOCKET
-
9217092170-1577 CLAMPCLAMP
-
9217192171-0411 CLAMPCLAMP
-
92171A92171-0477 CLAMPCLAMP
-
92171B92171-1238 CLAMPCLAMP
