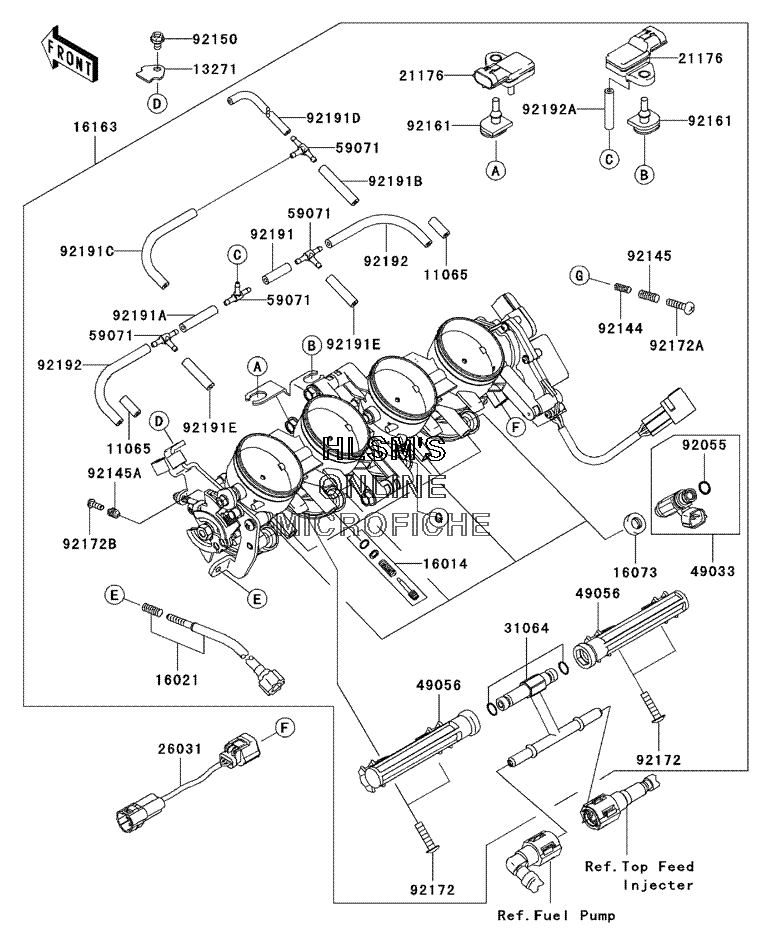

THROTTLE для Kawasaki NINJA ZX-6R - 2005 года выпуска
-
№АртикулНазвание
-
1106511065-0018 CAPCAP
-
1327113271-0559 PLATEPLATE
-
1601416014-0002 SCREW, PILOT AIRSCREW, PILOT AIR
-
1602116021-0010 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1607316073-3707 INSULATORINSULATOR
-
1616316163-0056 THROTTLE, ASSYTHROTTLE, ASSY
-
2117621176-1118 SENSORSENSOR
-
2603126031-0288 HARNESSHARNESS
-
3106431064-0023 PIPE, COMP, FUELPIPE, COMP, FUEL
-
4903349033-0006 NOZZLE, INJECTIONNOZZLE, INJECTION
-
4905649056-0001 PIPE, INJECTIONPIPE, INJECTION
-
5907159071-3752 JOINT, 3WAY, TJOINT, 3WAY, T
-
9205592055-1622 O-RING, INJECTION NOZZLEO-RING, INJECTION NOZZLE
-
9214492144-1451 SPRINGSPRING
-
9214592145-0055 SPRING, THROTTLE SYNCROSPRING, THROTTLE SYNCRO
-
92145A92145-0294 SPRINGSPRING
-
9215092150-1406 BOLT, 5X8BOLT, 5X8
-
9216192161-0041 DAMPERDAMPER
-
9217292172-0064 SCREW, PIPE INJECTIONSCREW, PIPE INJECTION
-
92172A92172-0065 SCREW, THROTTLE SYNCROSCREW, THROTTLE SYNCRO
-
92172B92172-0129 SCREWSCREW
-
9219192191-0020 TUBE, 3X7X25TUBE, 3X7X25
-
92191A92191-0021 TUBE, 3X7X35TUBE, 3X7X35
-
92191B92191-0022 TUBE, 3X7X40TUBE, 3X7X40
-
92191C92191-0023 TUBE, 3X7X100TUBE, 3X7X100
-
92191D92191-0024 TUBE, 3X7X153TUBE, 3X7X153
-
92191E92191-0025 TUBE, 3X7X30TUBE, 3X7X30
-
9219292192-0018 TUBE, 3X7X95TUBE, 3X7X95
-
92192A92192-0192 TUBE (3X7, 3.5X7.5)X35TUBE (3X7, 3.5X7.5)X35
