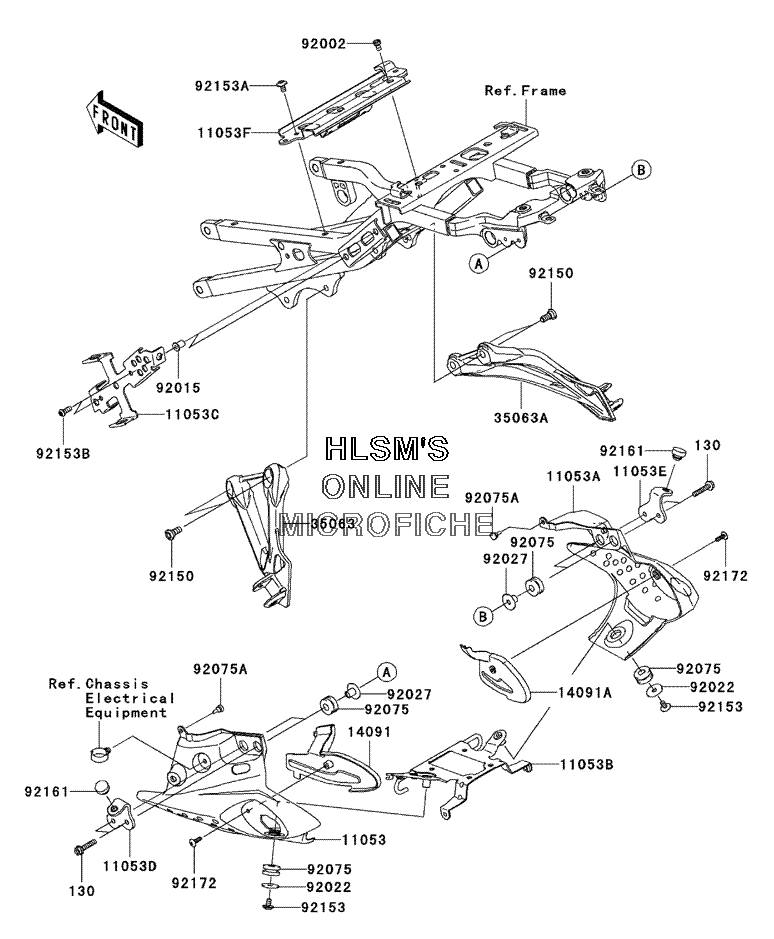

FRAME FITTINGS (REAR) для Kawasaki NINJA ZX-6RR - 2005 года выпуска
-
№АртикулНазвание
-
130130L0630 BOLT, FLANGED, M6X30BOLT, FLANGED, M6X30
-
1105311053-1404 BRACKET, REAR SIGNAL LAMP (LEFT)BRACKET, REAR SIGNAL LAMP (LEFT)
-
11053A11053-1405 BRACKET, REAR SIGNAL LAMP (RIGHT)BRACKET, REAR SIGNAL LAMP (RIGHT)
-
11053B11053-1538 BRACKET, REAR FLAPBRACKET, REAR FLAP
-
11053C11053-1664 BRACKET, RELAY BOXBRACKET, RELAY BOX
-
11053D11053-1701 BRACKET (LEFT)BRACKET (LEFT)
-
11053E11053-1702 BRACKET (RIGHT)BRACKET (RIGHT)
-
11053F11053-1721 BRACKET, FRONT SEATBRACKET, FRONT SEAT
-
1409114091-0362 COVER, REAR SIGNAL LAMP (LEFT)COVER, REAR SIGNAL LAMP (LEFT)
-
14091A14091-0363 COVER, REAR SIGNAL LAMP (RIGHT)COVER, REAR SIGNAL LAMP (RIGHT)
-
3506335063-0144 STAY, REAR (LEFT)STAY, REAR (LEFT)
-
35063A35063-0145 STAY, REAR (RIGHT)STAY, REAR (RIGHT)
-
9200292002-1175 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9201592015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9202292022-1160 WASHER, 7X24X1.6WASHER, 7X24X1.6
-
9202792027-1450 COLLAR, L=13.1 (BLACK)COLLAR, L=13.1 (BLACK)
-
9207592075-1690 DAMPERDAMPER
-
92075A92075-1808 DAMPERDAMPER
-
9215092150-1760 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
9215392153-0410 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
92153A92153-0816 BOLT, 6X18BOLT, 6X18
-
92153B92153-1244 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
9216192161-0046 DAMPERDAMPER
-
9217292172-0175 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
