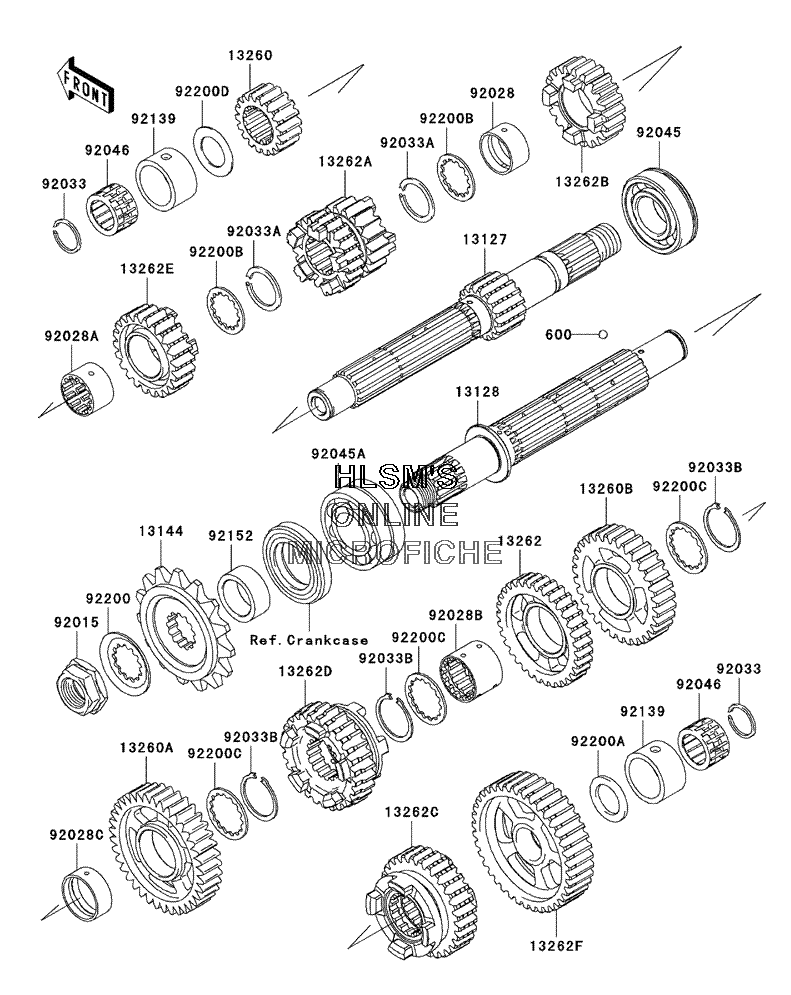

TRANSMISSION для Kawasaki NINJA ZX-6RR - 2005 года выпуска
-
№АртикулНазвание
-
600600A0500 BALL, STEEL, 5/32"BALL, STEEL, 5/32"
-
1312713127-0033 SHAFT, TRANSMISSION INPUT (16 TEETH)SHAFT, TRANSMISSION INPUT (16 TEETH)
-
1312813128-0018 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1314413144-1324 SPROCKET, OUTPUT (15 TEETH)SPROCKET, OUTPUT (15 TEETH)
-
1326013260-1987 GEAR, INPUT 2ND (18 TEETH)GEAR, INPUT 2ND (18 TEETH)
-
13260A13260-1992 GEAR, OUTPUT 2ND (37 TEETH)GEAR, OUTPUT 2ND (37 TEETH)
-
13260B13260-1993 GEAR, OUTPUT 3RD (31 TEETH)GEAR, OUTPUT 3RD (31 TEETH)
-
1326213262-0044 GEAR, OUTPUT 4TH (33 TEETH)GEAR, OUTPUT 4TH (33 TEETH)
-
13262A13262-0143 GEAR, INPUT, 3RD AND 4TH (18/22 TEETH)GEAR, INPUT, 3RD AND 4TH (18/22 TEETH)
-
13262B13262-0144 GEAR, INPUT, 5TH (21 TEETH)GEAR, INPUT, 5TH (21 TEETH)
-
13262C13262-0150 GEAR, OUTPUT 5TH (28 TEETH)GEAR, OUTPUT 5TH (28 TEETH)
-
13262D13262-0187 GEAR, OUTPUT 6TH (27 TEETH)GEAR, OUTPUT 6TH (27 TEETH)
-
13262E13262-0188 GEAR, INPUT 6TH (22 TEETH)GEAR, INPUT 6TH (22 TEETH)
-
13262F13262-0297 GEAR, TRANSMISSION SPURGEAR, TRANSMISSION SPUR
-
9201592015-1963 NUT, 20MMNUT, 20MM
-
9202892028-1735 BUSHING, INPUT 5TH GEARBUSHING, INPUT 5TH GEAR
-
92028A92028-1736 BUSHING, INPUT TOP GEARBUSHING, INPUT TOP GEAR
-
92028B92028-1738 BUSHING, OUTPUT, 3RD AND 4THBUSHING, OUTPUT, 3RD AND 4TH
-
92028C92028-1739 BUSHING, OUTPUT, 2NDBUSHING, OUTPUT, 2ND
-
9203392033-015 RING, SNAP, 20MMRING, SNAP, 20MM
-
92033A92033-026 RING, SNAP, 24MMRING, SNAP, 24MM
-
92033B92033-1037 RING, SNAP, 25.9X30.6X1.2RING, SNAP, 25.9X30.6X1.2
-
9204592045-0009 BEARING, BALL, HR6205C3BEARING, BALL, HR6205C3
-
92045A92045-035 BEARING, BALL, 83993SH2, CSBEARING, BALL, 83993SH2, CS
-
9204692046-0014 BEARING, NEEDLE, BN502053BEARING, NEEDLE, BN502053
-
9213992139-1090 BUSHING, 27X34X18.6BUSHING, 27X34X18.6
-
9215292152-0280 COLLAR, 23X32X15COLLAR, 23X32X15
-
9220092200-1065 WASHERWASHER
-
92200A92200-1238 WASHER, 20.3X30X2.3WASHER, 20.3X30X2.3
-
92200B92200-1239 WASHER, 25.2X31.0X1.5WASHER, 25.2X31.0X1.5
-
92200C92200-1240 WASHER, 28.5X34.0X1.5WASHER, 28.5X34.0X1.5
-
92200D92200-1613 WASHER, 20.3X33X1.0WASHER, 20.3X33X1.0
