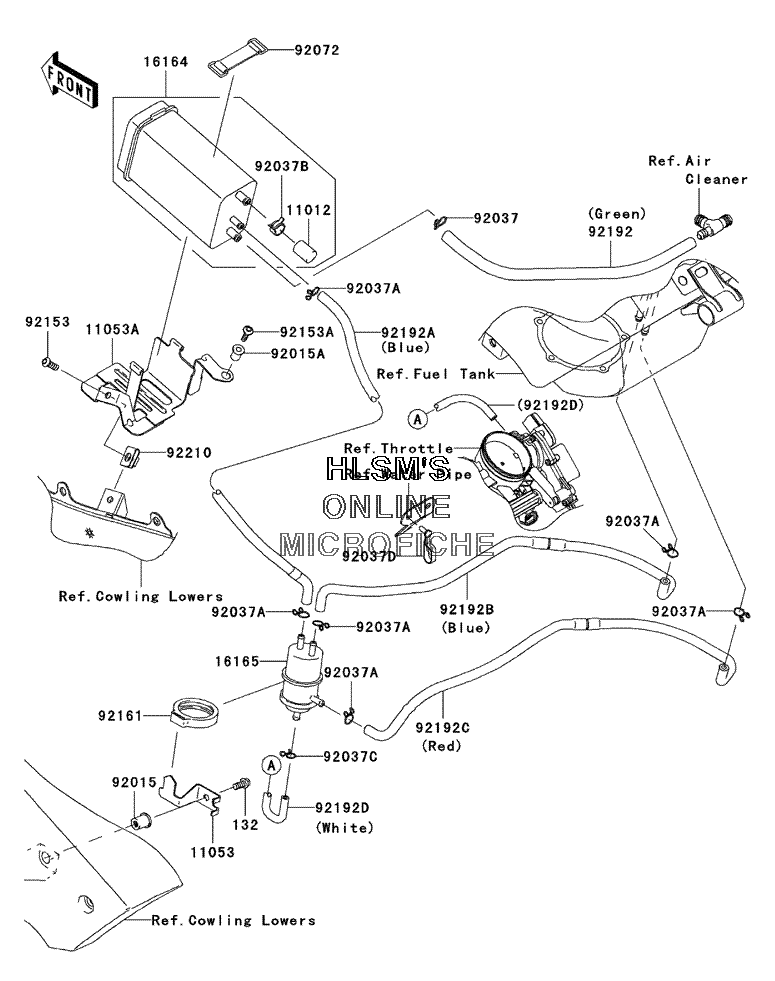

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki NINJA ZX-6RR - 2005 года выпуска
-
№АртикулНазвание
-
1101211012-1388 CAP, CANISTERCAP, CANISTER
-
1105311053-1619 BRACKETBRACKET
-
11053A11053-1658 BRACKETBRACKET
-
1616416164-1054 CANISTERCANISTER
-
1616516165-1001 SEPARATORSEPARATOR
-
9201592015-1700 NUTNUT
-
92015A92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9203792037-1104 CLAMP, HOSECLAMP, HOSE
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1512 CLAMP, CANISTERCLAMP, CANISTER
-
92037C92037-1712 CLAMPCLAMP
-
92037D92037-1903 CLAMP, SPEED, L=80.5CLAMP, SPEED, L=80.5
-
9207292072-1419 BAND, L=50BAND, L=50
-
9215392153-0404 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
92153A92153-1244 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
9216192161-0239 DAMPERDAMPER
-
9219292192-0169 TUBE, CANISTER, FITTING (GREEN)TUBE, CANISTER, FITTING (GREEN)
-
92192A92192-0170 TUBE, SEPARATOR, CANISTER (BLUE)TUBE, SEPARATOR, CANISTER (BLUE)
-
92192B92192-0171 TUBE, SEPARATOR, TANK (BLUE)TUBE, SEPARATOR, TANK (BLUE)
-
92192C92192-0173 TUBE, SEPARATOR, TANK (RED)TUBE, SEPARATOR, TANK (RED)
-
92192D92192-0175 TUBE, THROTTLE, SEPARATOR (WHITE)TUBE, THROTTLE, SEPARATOR (WHITE)
-
9221092210-0130 NUTNUT
-
132132L0614 BOLT, FLANGED, SMALL, M6X14BOLT, FLANGED, SMALL, M6X14
